PB-413 H - Echo Backpack Blower (SN: 10001001 - 10999999) Intake, Cylinder Cover Parts Diagram

Backpack Blower - 44 cc, air-cooled 2-stroke single-cylinder engine, 70 dB intake noise. Dimensions: 325 mm x 515 mm x 440 mm (L x W x H); dry weight 10 kg.

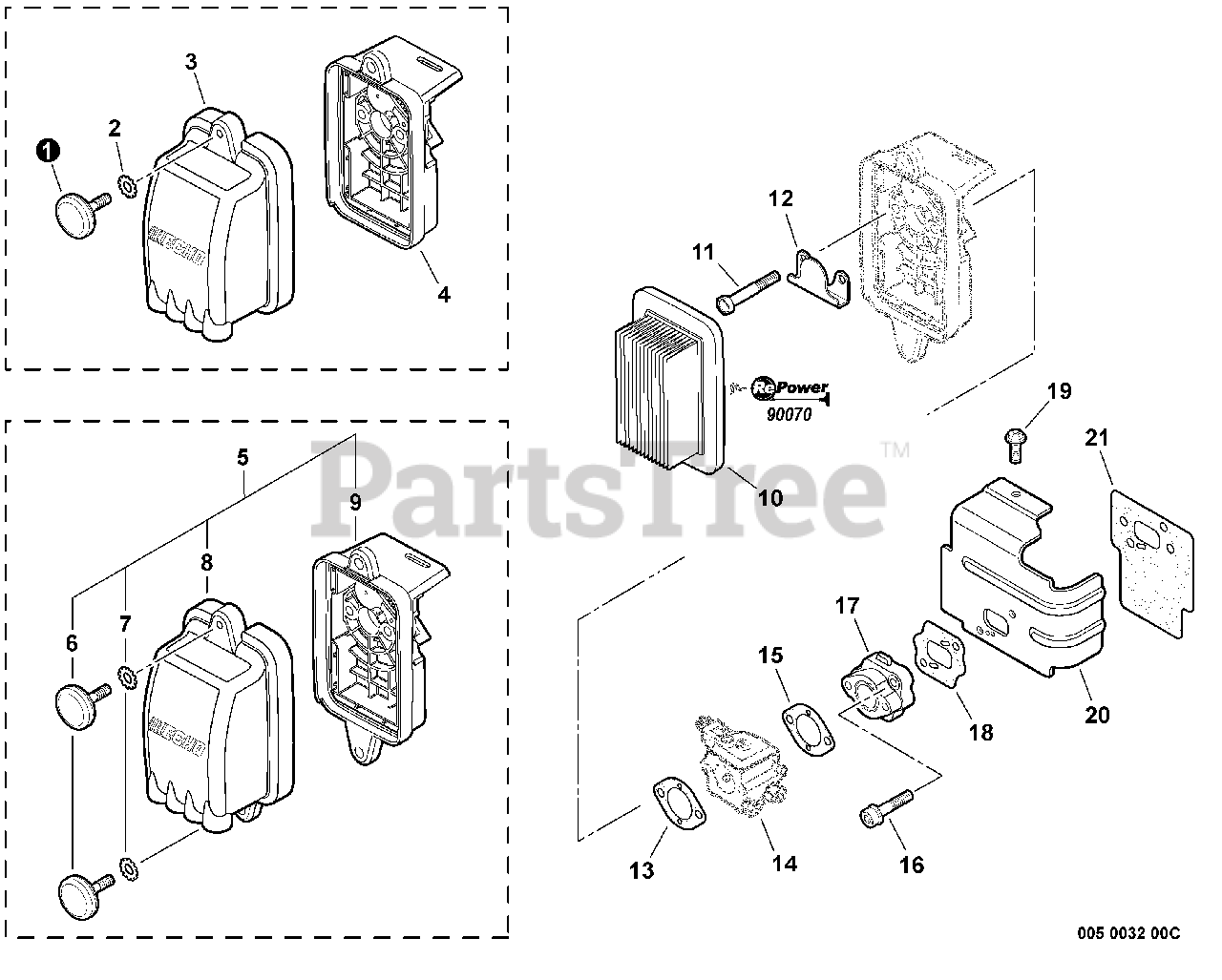

Intake, Cylinder Cover Parts Diagram

  • Title

1

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.99

$

In Stock, Qty 20+

0

2

Echo V340000210

WASHER

$0.99

$

In Stock, Qty 20+

0

3

COVER, AIR FILTER

Note: Item No Longer Available. Use Kit P021014430

$

$

Not available

4

AIR FILTER CASE ASSY

Note: Item No Longer Available. Use Kit P021014430

$

$

Not available

5

Echo P021014430

FILTER KIT, AIR
(Superseded to P021014431)

Note: Includes ITEMS 6-9

$13.99

$

In Stock, Qty 11

0

6

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.99

$

In Stock, Qty 20+

0

7

Echo V340000210

WASHER

$0.99

$

In Stock, Qty 20+

0

8

Echo A232000081

COVER, AIR FILTER
(Superseded to A232000082)

$3.49

$

In Stock, Qty 13

0

9

Echo P021002522

CASE ASSY, AIR FILTER

$12.99

$

Usually ships in 2-4 days

0

10

Echo A226000032

FILTER, AIR

Note: Included In RePower KIT

$12.99

$

In Stock, Qty 20+

0

11

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

12

Echo A244000020

PLATE, PREVENT

$3.49

$

In Stock, only 1 left!

0

13

Echo 13001603731

GASKET, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

14

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

15

Echo 13001606434

GASKET

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

16

Echo 13000708261

INSULATOR, INTAKE

$12.99

$

In Stock, only 2 left!

0

17

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

18

Echo V103000000

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

19

Echo 10151408260

COVER, CYLINDER

$23.99

$

In Stock, only 2 left!

0

20

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

21

Echo 13001606211

HEAT SHIELD, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 16

0

22

Echo 90070

TUNE-UP KIT - REPOWER
(Superseded to 90151)

$27.99

$

In Stock, Qty 20+

0
