PB-413 T - Echo Backpack Blower (SN: 10001001 - 10999999) Tube Mount Throttle Parts Diagram

Backpack Blower - 44 cc, air-cooled 2-stroke single-cylinder engine, 70 dB intake noise. Dimensions: 325 mm x 520 mm x 490 mm (L x W x H); dry weight 10 kg.

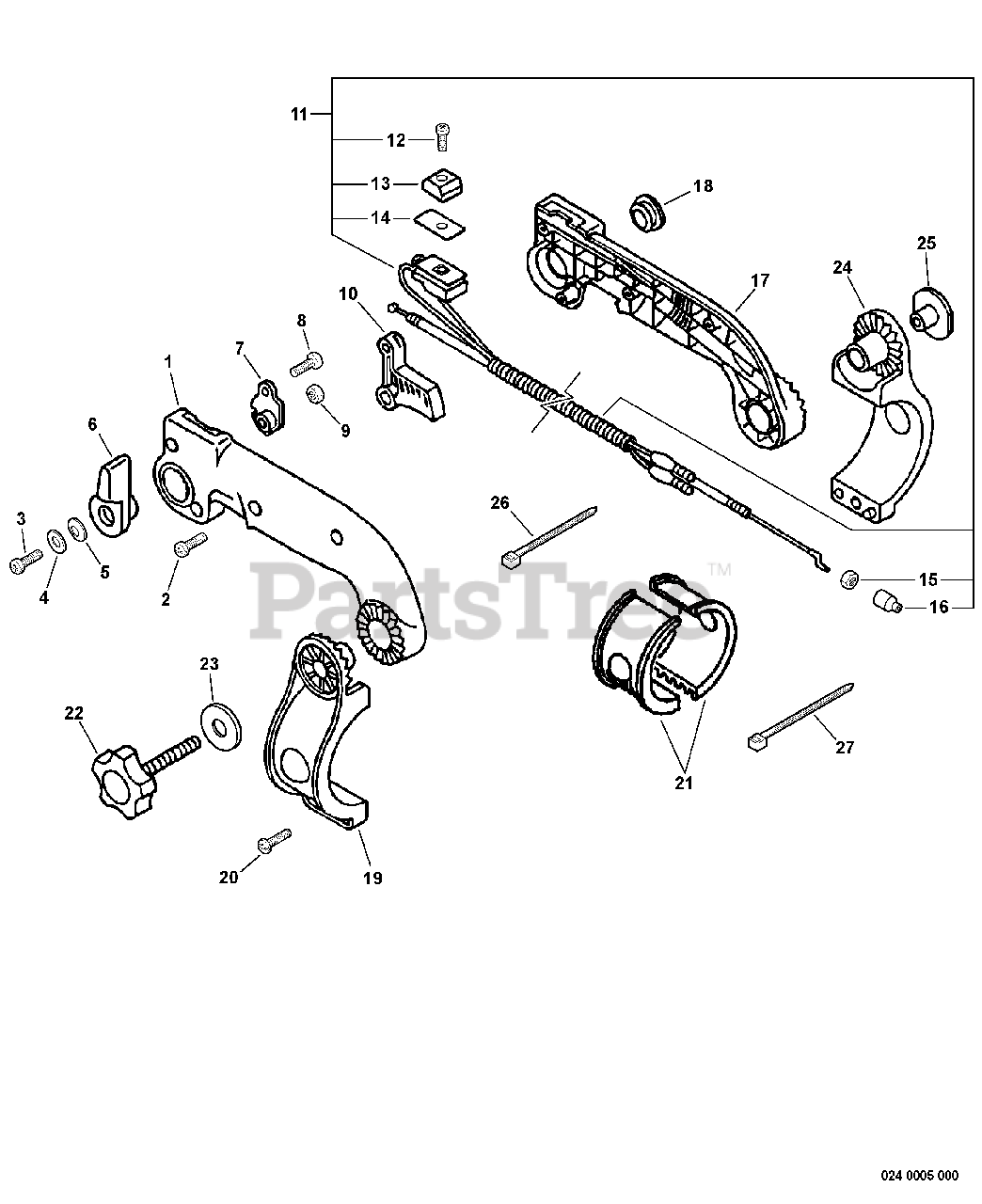

Tube Mount Throttle Parts Diagram

  • Title

1

Echo 35131507560

CONTROL HANDLE - LEFT

$27.99

$

In Stock, only 1 left!

0

2

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023506020

SCREW 6×20

$0.99

$

In Stock, only 1 left!

0

4

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 13

0

5

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

6

Echo 17805407560

CONTROL, THROTTLE

$15.99

$

In Stock, Qty 9

0

7

Echo 17812307561

BRACKET, THROTTLE

$4.49

$

In Stock, only 4 left!

0

8

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

9

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

10

Echo 17801007561

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 11

0

11

Echo V043000021

CABLE ASSY, CONTROL

Note: Includes ITEMS 12-16

$19.99

$

In Stock, only 2 left!

0

12

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

13

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

14

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

15

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

16

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

17

Echo 35131107560

CONTROL HANDLE - RIGHT

$13.99

$

In Stock, only 1 left!

0

18

Echo 35114607560

PLUG

$3.99

$

Usually ships in 2-4 days

0

19

Echo 35101107560

BRACKET, HANDLE - LEFT
(Superseded to P021014110)

$6.99

$

In Stock, Qty 10

0

20

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

21

Echo 21001907560

COLLAR

$5.49

$

In Stock, only 3 left!

0

22

Echo 30581208260

KNOB, SCREW
(Superseded to V299000630)

$5.49

$

In Stock, Qty 20+

0

23

Echo 17851607560

WASHER

$0.99

$

In Stock, only 3 left!

0

24

Echo 35102807560

BRACKET, HANDLE - RIGHT
(Superseded to P021014110)

$6.99

$

In Stock, Qty 10

0

25

Echo 17802108260

NUT

$30.99

$

In Stock, only 2 left!

0

26

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

27

Echo 17812109860

STRAP, TIE - LARGE

$3.49

$

Usually ships in 2-4 days

0
