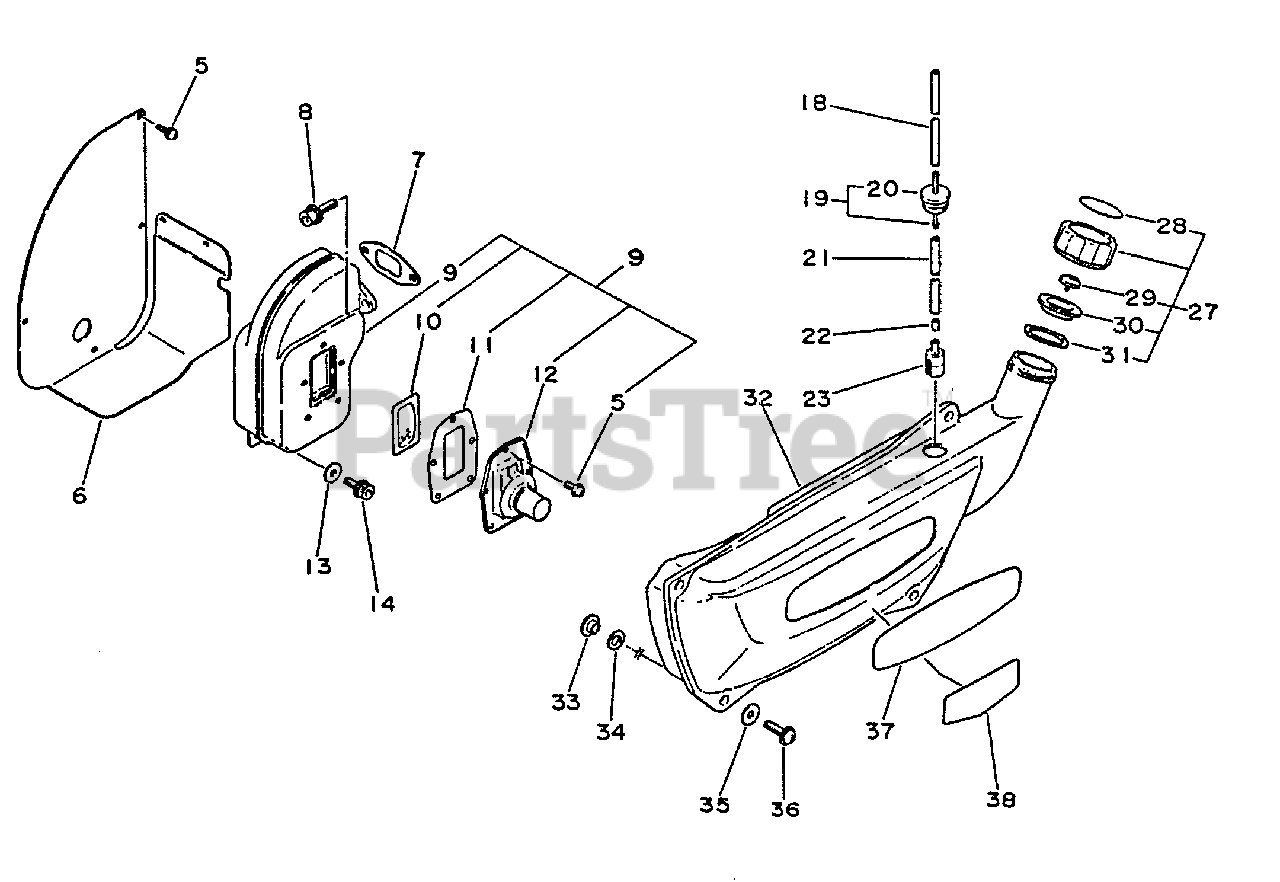

PB-4500 - Echo Backpack Blower (SN: 0000000 - 0034075) Exhaust, Fuel Sys Parts Diagram

Backpack Blower

Exhaust, Fuel Sys Parts Diagram

  • Title

5

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 10027004260

INSULATOR
(Superseded to 10027004261)

Note: See Parts Bull. 87-13 "Performance Improvement"

$25.99

$

Usually ships in 2-4 days

0

9

Echo 14580004260

MUFFLER ASSY
(Superseded to 14580004261)

Note: See Parts Bull. 87-13 "Performance Improvement"

$10.99

$

In Stock, only 2 left!

0

5

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

7

Echo 14551010720

GASKET, EXHAUST
(Superseded to 14551010721)

$

$

Not available

8

Echo 900162-06020

BOLT 6×20

$1.49

$

In Stock, only 4 left!

0

10

Echo 14586204260

SCREEN, SPARK ARRESTER

$2.49

$

Usually ships in 2-4 days

0

11

Echo 14586604260

GASKET
(Superseded to 14586604261)

$10.99

$

In Stock, only 2 left!

0

12

Echo 14587604260

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

13

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

14

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

18

Echo 13201204260

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

19

Echo 13200503360

GROMMET KIT
(Superseded to Discontinued)

$

$

Not available

20

Echo 13211521330

GROMMET

$2.99

$

In Stock, only 1 left!

0

21

Echo 13201004260

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

22

Echo 13200115030

VALVE, CHECK

$4.99

$

In Stock, only 3 left!

0

23

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

27

Echo 13160003360

CAP ASSY
(Superseded to 13100406610)

$13.99

$

In Stock, only 2 left!

0

28

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

29

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

30

Echo 13101521330

HOLDER, CHECK VALVE
(Superseded to A358000000)

$

$

Not available

31

Echo 131016-21230

GASKET, FUEL CAP

$3.99

$

In Stock, only 3 left!

0

32

Echo 13101004260

TANK, FUEL
(Superseded to 13101007560)

$

$

Not available

33

Echo 13191603460

SPACER

$1.99

$

In Stock, Qty 8

0

34

Echo 13192502310

CUSHION

$1.99

$

In Stock, Qty 20+

0

35

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

36

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

37

Echo 89011803460

LABEL - ECHO
(Superseded to 89013800760)

$4.49

$

Usually ships in 2-4 days

0

38

Echo 89011504260

LABEL, MODEL

$2.99

$

Usually ships in 2-4 days

0
