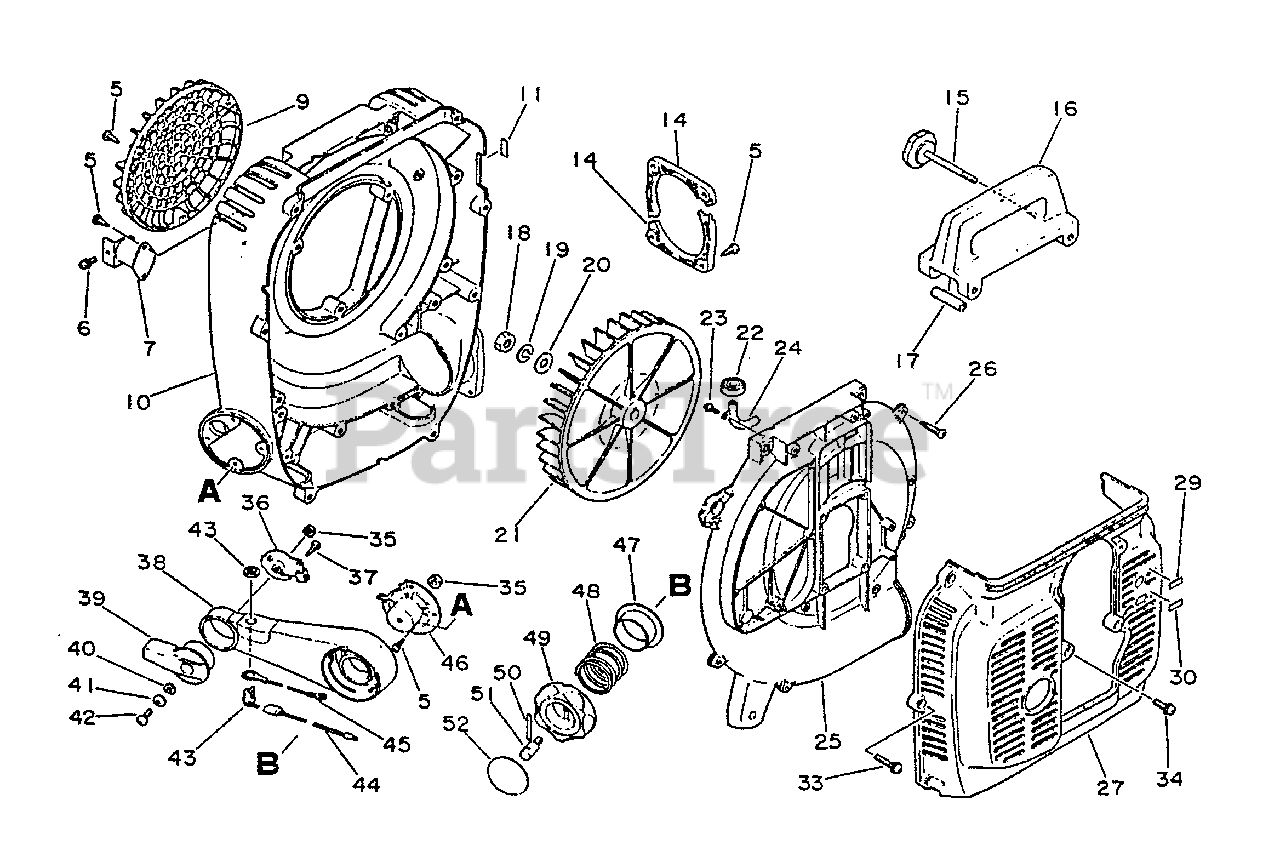

PB-4500 - Echo Backpack Blower (SN: 0000000 - 0034075) Fan, Housings, Throttle, Handles Parts Diagram

Backpack Blower

Fan, Housings, Throttle, Handles Parts Diagram

  • Title

5

Echo 90024605012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

7

Echo 20090703460

CUSHION

$15.99

$

Usually ships in 2-4 days

0

9

Echo 20012404260

GUARD, DEBRIS

$14.99

$

Usually ships in 2-4 days

0

10

Echo 20010504260

COVER, FAN - INNER
(Superseded to 20010507560)

$160.99

$

In Stock, only 1 left!

0

11

Echo 89012104260

LABEL - CHOKE
(Superseded to 89012104960)

$

$

Not available

14

Echo 21002204260

BRACKET
(Superseded to 21002207560)

$

$

Not available

15

Echo 30581203460

BOLT
(Superseded to 90022006070)

$2.49

$

Usually ships in 2-4 days

0

16

Echo 30580503460

GRIP

$34.99

$

Usually ships in 2-4 days

0

17

Echo 30581403460

CUSHION

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90050000010

NUT - 10

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 6

0

20

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 17

0

21

Echo 20000504260

FAN

$95.99

$

Usually ships in 2-4 days

0

22

Echo 36303003460

SEAL

$1.99

$

Usually ships in 2-4 days

0

23

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

24

Echo 36301503460

PIPE - INTAKE
(Superseded to Discontinued)

$

$

Not available

25

Echo 20011104260

COVER, FAN - OUTER
(Superseded to 20011104261)

$

$

Not available

26

Echo 90024905025

SCREW - 5X25
(Superseded to Discontinued)

$

$

Not available

27

Echo 10401604260

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

29

Echo 89018503460

LABEL - IDLE

$0.99

$

Usually ships in 2-4 days

0

30

Echo 89015803460

LABEL - CAUTION

$0.99

$

Usually ships in 2-4 days

0

33

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

34

Echo 90024205015

SCREW - 5X15

$0.99

$

In Stock, only 2 left!

0

35

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

36

Echo 17812303460

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

37

Echo 90024504010

SCREW - 4X10

$0.99

$

In Stock, Qty 9

0

38

Echo 17812203460

MOUNT, THROTTLE LEVER
(Superseded to 17812206160)

$19.99

$

Usually ships in 2-4 days

0

39

Echo 17801003460

TRIGGER, THROTTLE
(Superseded to 17801006160)

$

$

Not available

40

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

41

Echo 17812900660

WASHER
(Superseded to 90060700006)

$0.99

$

In Stock, only 3 left!

0

42

Echo 90022006020

SCREW - 6X20
(Superseded to 90024206020)

$0.99

$

In Stock, Qty 6

0

43

Echo 16340003460

IGNITION SWITCH ASSY

$9.49

$

In Stock, Qty 9

0

44

Echo 16202103460

LEAD - IGNITION

$2.99

$

Usually ships in 2-4 days

0

45

Echo 16201003460

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

46

Echo 17813403460

PLATE
(Superseded to Discontinued)

$

$

Not available

47

Echo 17813503460

SEAT, SPRING
(Superseded to Discontinued)

$

$

Not available

48

Echo 17813603460

SPRING

$7.49

$

Usually ships in 2-4 days

0

49

Echo 17813803460

KNOB

$7.49

$

Usually ships in 2-4 days

0

50

Echo 90033040298

PIN

$1.49

$

In Stock, Qty 5

0

51

Echo 17813703460

SHAFT

$4.99

$

Usually ships in 2-4 days

0

52

Echo 89018603460

LABEL - IDLE
(Superseded to 89018607560)

$

$

Not available
