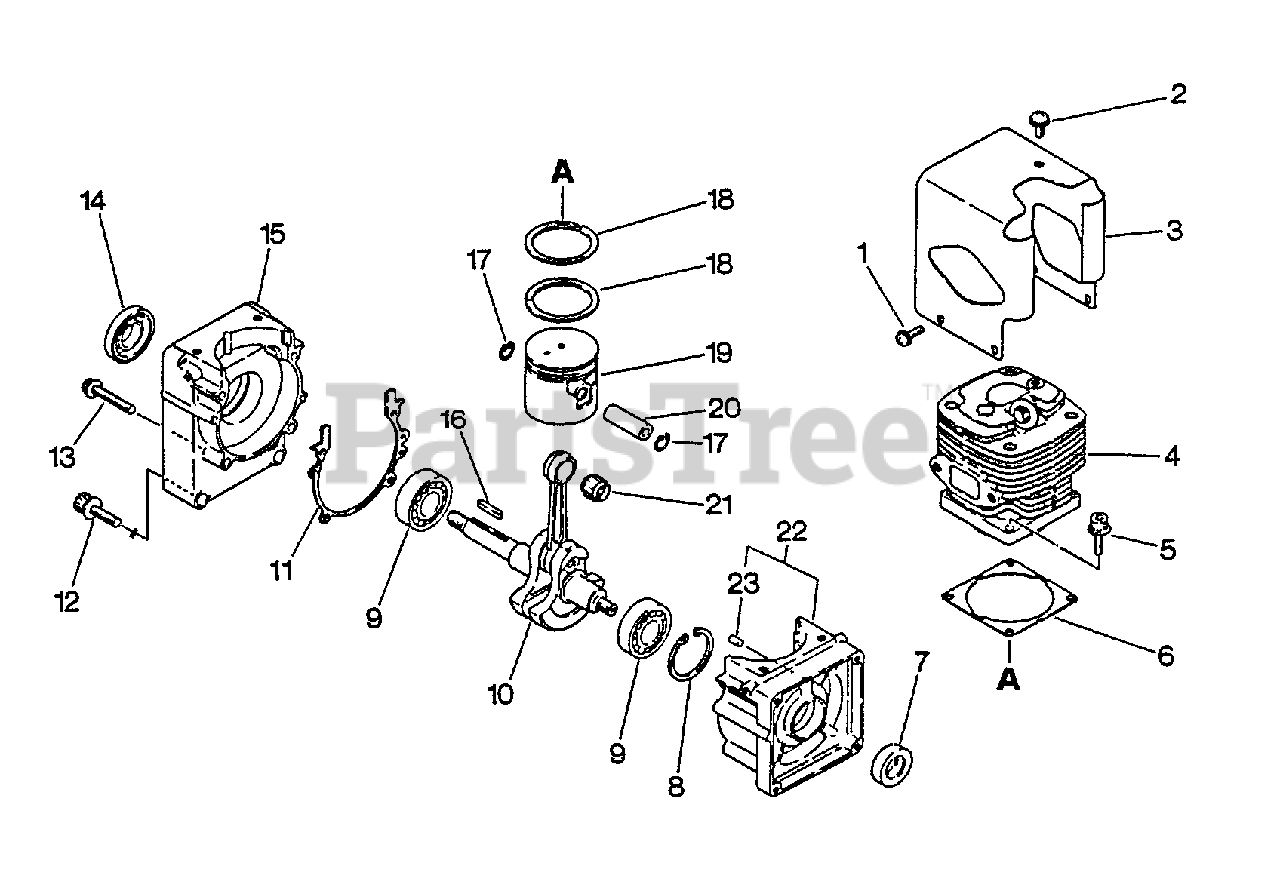

PB-4500 - Echo Backpack Blower (SN: 0034076 - 9999999) Engine, Crankcase Parts Diagram

Backpack Blower

Engine, Crankcase Parts Diagram

  • Title

1

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

2

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

3

Echo 10151404260

COVER, CYLINDER - BLACK
(Superseded to Discontinued)

$

$

Not available

4

Echo 10101104260

CYLINDER

$229.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo 10101010721

GASKET, CYLINDER
(Superseded to 10101010722)

$1.99

$

In Stock, Qty 6

0

7

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

8

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

9

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

10

Echo 10010004260

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

11

GASKET, CRANKCASE

$

$

Not available

12

Echo 900162-06020

BOLT 6×20

$1.49

$

In Stock, only 4 left!

0

13

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

14

Echo 100213-02830

SEAL, OIL 18

$7.99

$

In Stock, only 1 left!

0

15

Echo 10020004260

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

16

Echo 90032503025

KEY

$2.99

$

Usually ships in 2-4 days

0

17

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

18

Echo 100011-10530

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

19

Echo 100010-03210

PISTON

$

$

Not available

20

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

21

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

22

Echo 10020004260

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

23

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0
