PB-4500 - Echo Backpack Blower (SN: 0034076 - 9999999) Engine, Crankcase Parts Diagram

Backpack Blower

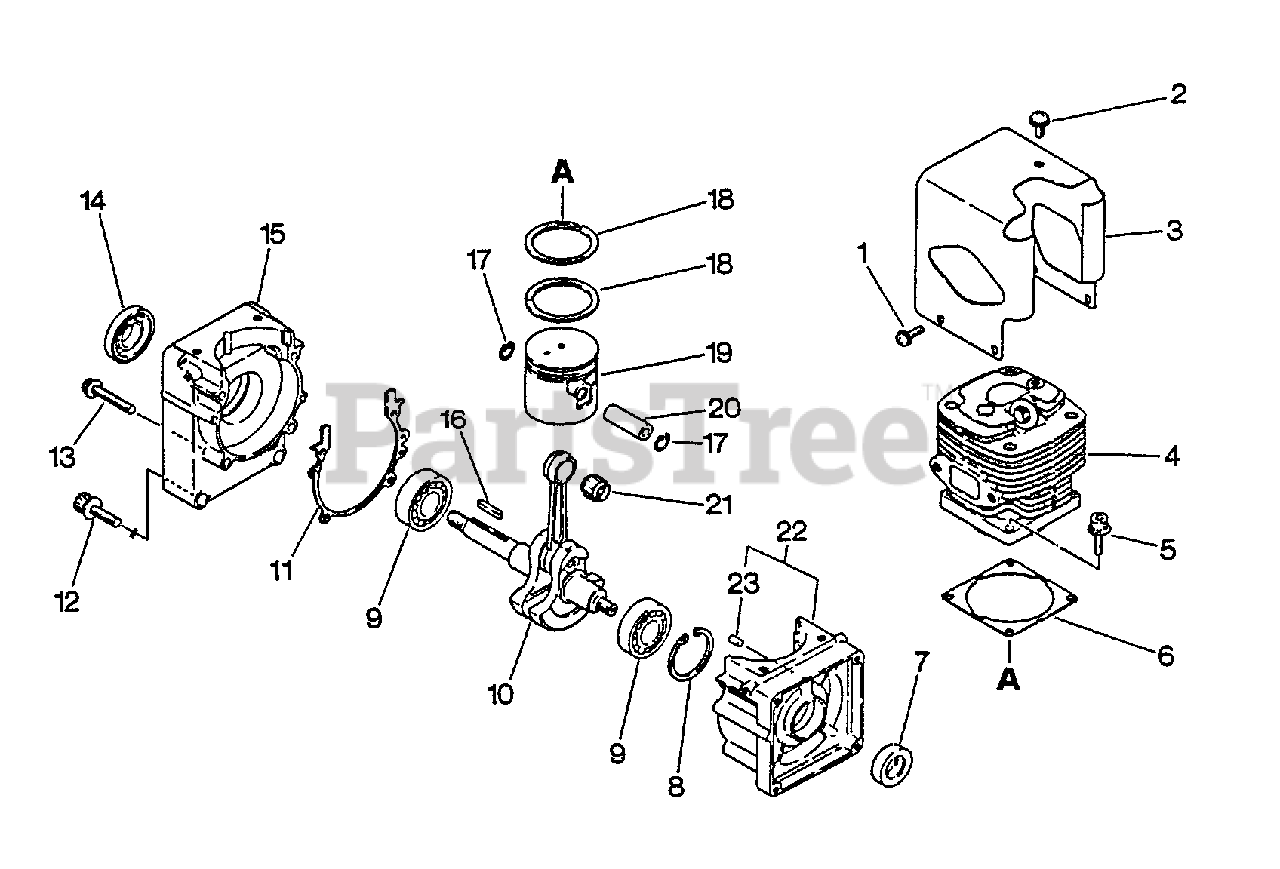

Engine, Crankcase Parts Diagram

  • Title

1

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

2

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

3

Echo 10151404260

COVER, CYLINDER - BLACK
(Superseded to Discontinued)

$

$

Not available

4

Echo 10101104260

CYLINDER

$191.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo 10101010721

GASKET, CYLINDER
(Superseded to 10101010722)

$1.99

$

In Stock, Qty 15

0

7

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

8

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 16

0

9

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 13

0

10

Echo 10010004260

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

11

------------------

GASKET, CRANKCASE

$

$

Not available

12

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

13

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

14

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

15

Echo 10020004260

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

16

Echo 90032503025

KEY

$2.99

$

Usually ships in 2-4 days

0

17

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

18

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

19

Echo 10001003210

PISTON
(Superseded to 10000003210)

$70.99

$

Usually ships in 2-4 days

0

20

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

21

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

22

Echo 10020004260

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

23

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0
