PB-46 LN - Echo Backpack Blower (SN: 001001 - 999999) Exhaust Parts Diagram

PB-46LN Echo Backpack Blower - 44 cc air-cooled 2-stroke single-cylinder engine, max 170 mph, 740 cfm airflow. Compact 320x460x440 mm, 11 kg. Features an adjustable nozzle (2 tubes, 2 elbows), adapter to swivel pipe, straight pipe & clamp.

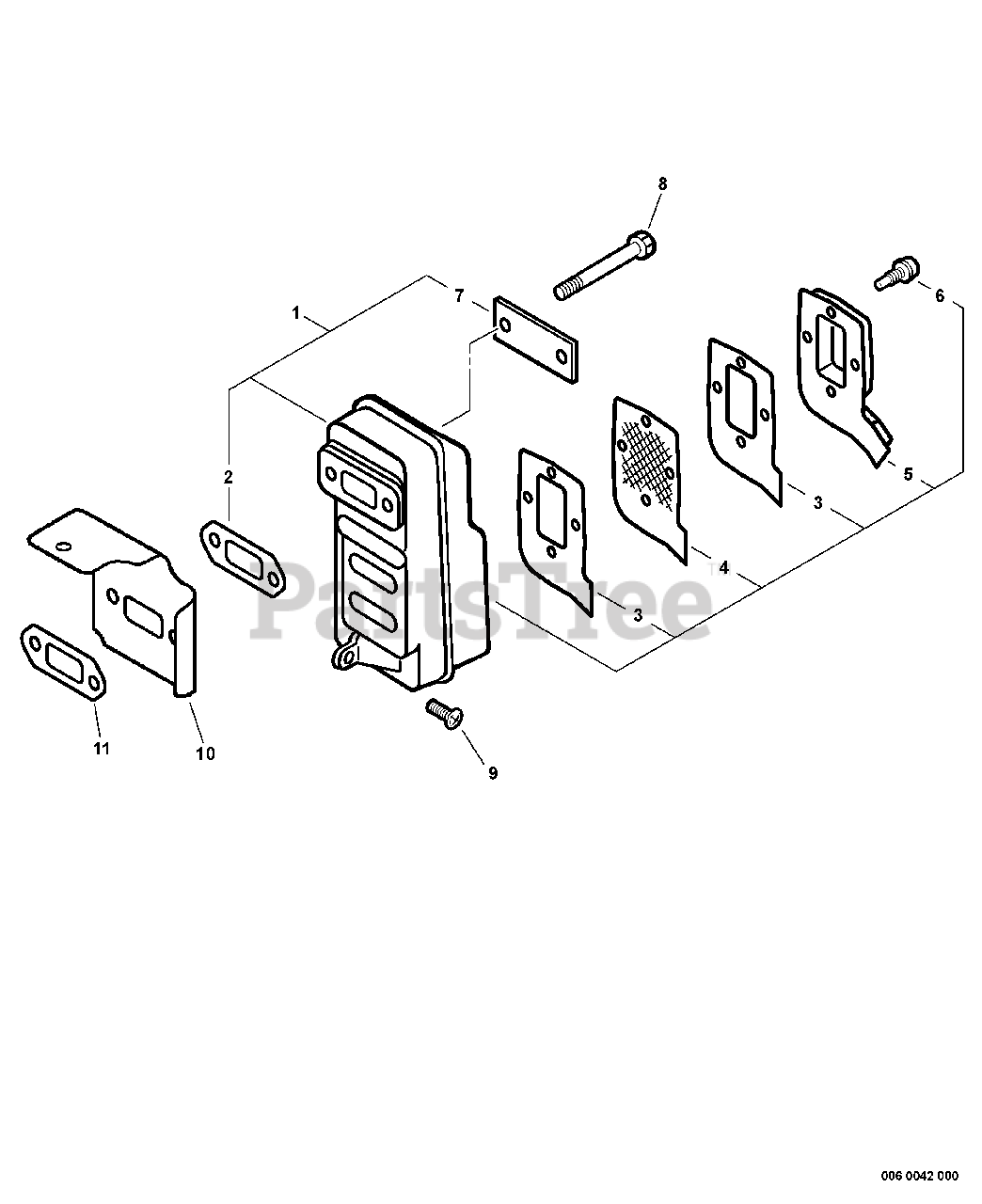

Exhaust Parts Diagram

  • Title

1

Echo 14580021261

MUFFLER ASSY

Note: Includes ITEMS 2-8

$76.99

$

Usually ships in 2-4 days

0

2

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

Note: Included In GASKET KIT

$3.99

$

In Stock, only 2 left!

0

3

Echo 14586621060

GASKET, EXHAUST
(Superseded to 14586621360)

$3.49

$

In Stock, only 2 left!

0

4

Echo 14586221060

SCREEN, SPARK ARRESTER
(Superseded to 14586221260)

$10.99

$

In Stock, Qty 5

0

5

Echo 14580921261

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

6

Echo 90080000400

SCREW
(Superseded to 90023804014)

$0.99

$

In Stock, Qty 9

0

7

Echo 14551521060

PLATE
(Superseded to 14551521061)

$

$

Not available

8

Echo 14588721060

BOLT
(Superseded to Discontinued)

$

$

Not available

9

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

10

Echo 10157608260

COVER, CYLINDER

$15.99

$

Usually ships in 2-4 days

0

11

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

Note: Included In GASKET KIT

$3.99

$

In Stock, only 2 left!

0
