PB-46 LN - Echo Backpack Blower (SN: 001001 - 999999) Intake Parts Diagram

PB-46LN Echo Backpack Blower - 44 cc air-cooled 2-stroke single-cylinder engine, max 170 mph, 740 cfm airflow. Compact 320x460x440 mm, 11 kg. Features an adjustable nozzle (2 tubes, 2 elbows), adapter to swivel pipe, straight pipe & clamp.

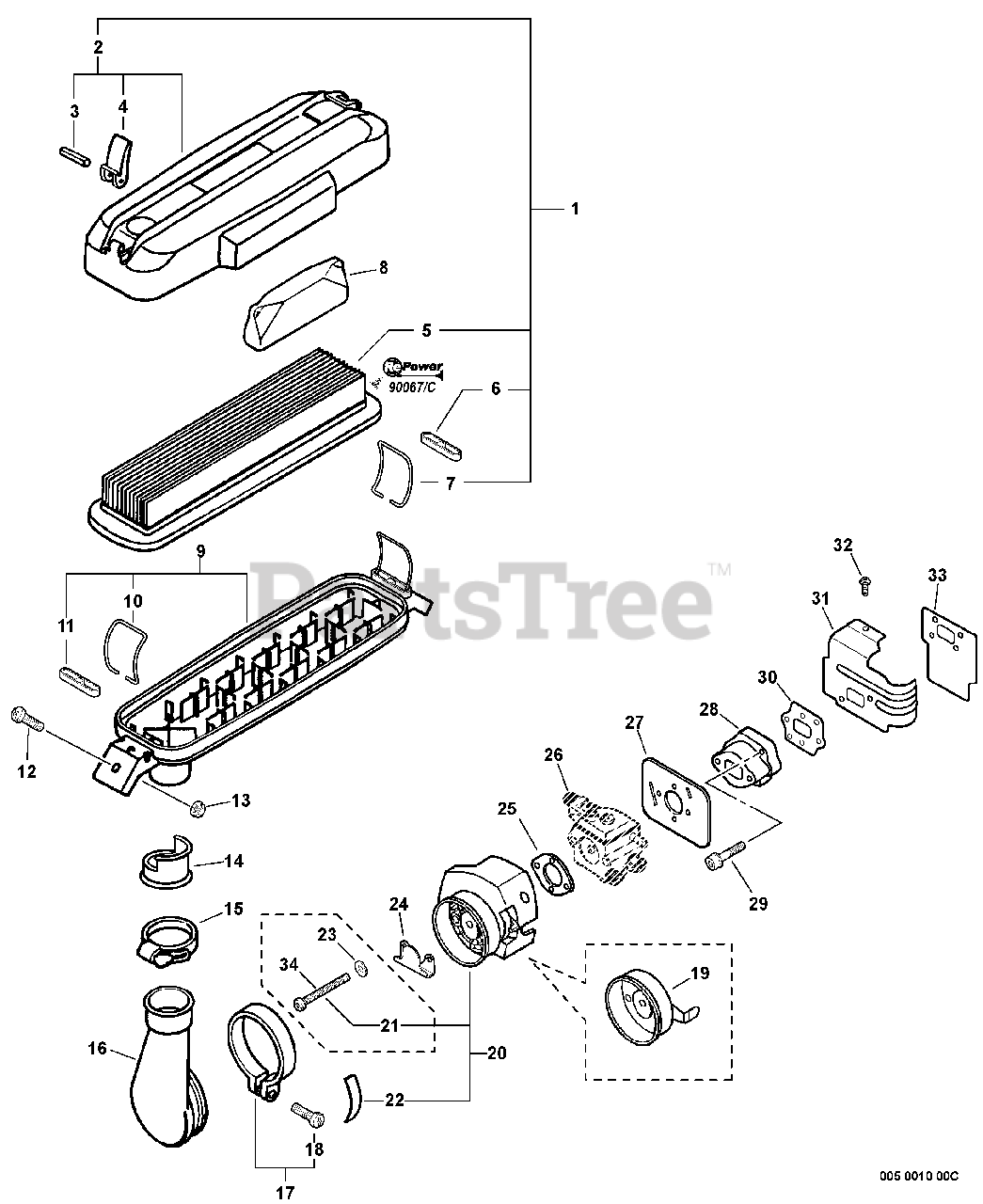

Intake Parts Diagram

  • Title

1

Echo 99988800801

AIR FILTER KIT

Note: Includes ITEMS 2-7

$36.99

$

In Stock, only 2 left!

0

2

Echo 13030808360

COVER ASSY, AIR FILTER
(Superseded to 13030808361)

Note: Includes ITEMS 3-4

$16.99

$

Usually ships in 2-4 days

0

3

Echo 90034530025

PIN, SPRING 3×25

$1.99

$

Usually ships in 2-4 days

0

4

Echo 13034108260

LATCH

$5.49

$

In Stock, only 1 left!

0

5

Echo 13030508361

FILTER, AIR

Note: Included In RePower KIT

$16.99

$

In Stock, Qty 20+

0

6

Echo V491000220

CLIP

$0.99

$

In Stock, Qty 20+

0

7

Echo 13103208360

CLIP

$3.49

$

In Stock, Qty 5

0

8

Echo 14563721260

SILENCER
(Superseded to Discontinued)

$

$

Not available

9

Echo P021014450

CASE ASSY, AIR FILTER

Note: Includes ITEMS 10-11

$17.99

$

Usually ships in 2-4 days

0

10

Echo 13103208360

CLIP

$3.49

$

In Stock, Qty 5

0

11

Echo V491000220

CLIP

$0.99

$

In Stock, Qty 20+

0

12

Echo 9154005014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

14

Echo 17807608360

COLLAR 27

$3.49

$

In Stock, only 4 left!

0

15

Echo 13071508260

BAND

$1.99

$

In Stock, only 1 left!

0

16

Echo 13071108260

ADAPTOR, INTAKE

$

$

Not available

17

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 18

$8.49

$

In Stock, Qty 9

0

18

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

------------------

BRACKET, AIR FILTER

Note: Replaced By ITEM 20

$

$

Not available

20

Echo A221000000

BRACKET KIT, AIR FILTER

Note: Includes ITEMS 21-22

$12.99

$

In Stock, Qty 6

0

21

Echo 900242-05057

SCREW 5×57

Note: For Metal Air Cleaner Bracket, Use ITEMS 34 & 23

$0.99

$

In Stock, Qty 13

0

22

Echo 89015808261

LABEL, CHOKE

Note: For Plastic Air Cleaner Bracket ONLY

$2.99

$

In Stock, only 2 left!

0

23

Echo 90060300006

WASHER 6.5×13×1

Note: Not Used When Replacing With ITEM 20

$0.99

$

In Stock, Qty 20+

0

24

Echo A244000020

PLATE, PREVENT

$3.49

$

In Stock, only 2 left!

0

25

Echo 13001603731

GASKET, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

26

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

27

Echo 13001021262

GASKET, INTAKE

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 10

0

28

Echo 13000708261

INSULATOR, INTAKE

$12.99

$

In Stock, only 2 left!

0

29

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

30

Echo V103000000

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

31

Echo 10151421260

COVER, CYLINDER

$20.99

$

Usually ships in 2-4 days

0

32

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

33

Echo 13001606211

HEAT SHIELD, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 15

0

34

Echo 90022005050

SCREW 5×50

Note: For Metal Air Cleaner Bracket ONLY

$0.99

$

Usually ships in 2-4 days

0

35

Echo 90067

TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available

35

Echo 90067C

TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available
