PB-460 LN - Echo Backpack Blower (SN: 03001001 - 03999999) Exhaust Parts Diagram

Backpack Blower - compact 320 x 460 x 440 mm, 11.9 kg dry weight, powered by a 44 cc, 2-stroke, air-cooled single-cylinder engine (40 mm bore, 35 mm stroke).

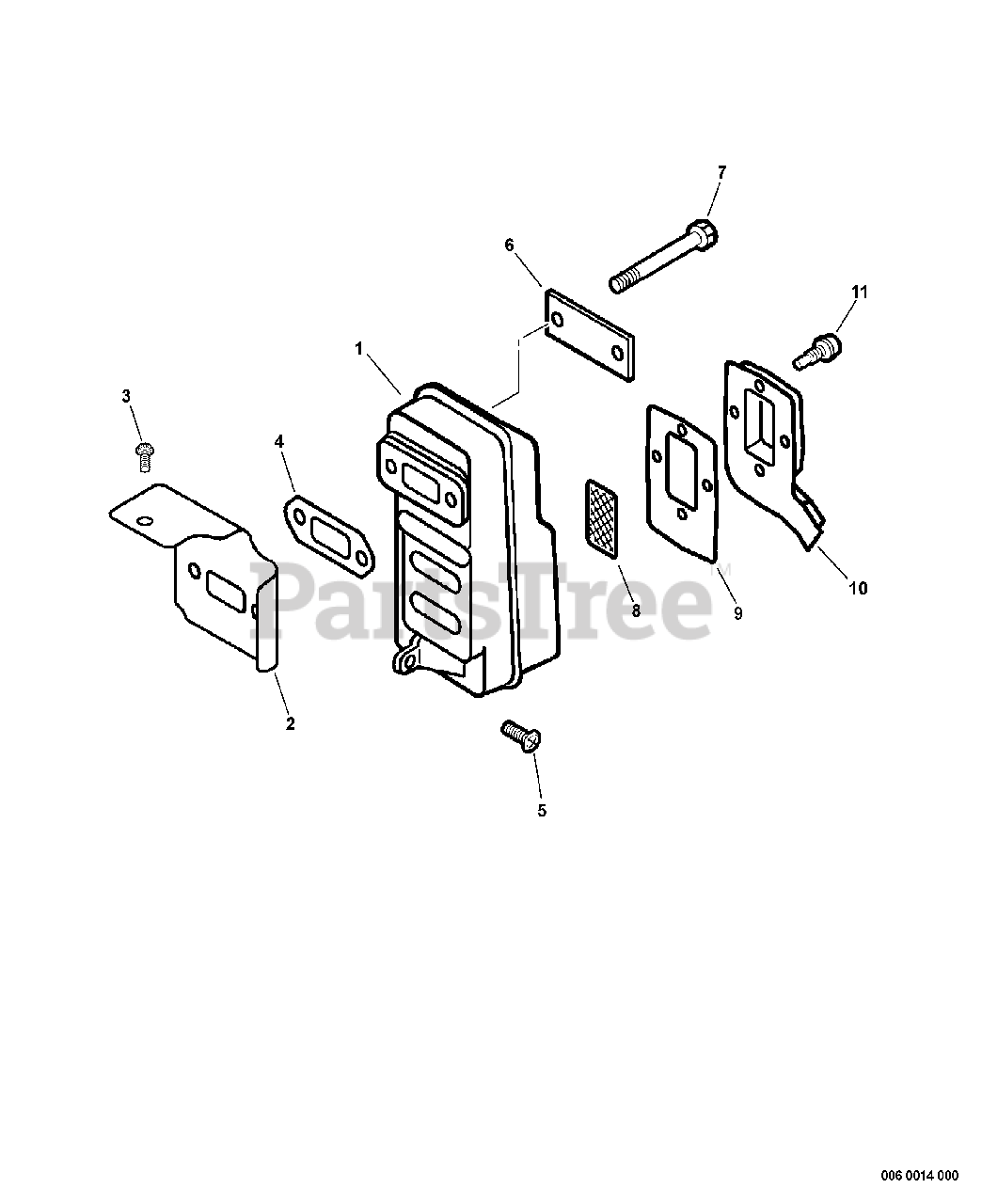

Exhaust Parts Diagram

  • Title

1

Echo 14580521061

MUFFLER
(Superseded to 14580021261)

$76.99

$

Usually ships in 2-4 days

0

2

Echo 10151421260

COVER, CYLINDER

$20.99

$

Usually ships in 2-4 days

0

3

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

4

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

Note: Included In GASKET KIT

$3.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo 14551521061

PLATE, EYE
(Superseded to Discontinued)

$

$

Not available

7

Echo 14588721060

BOLT
(Superseded to Discontinued)

$

$

Not available

8

Echo 14586221260

SCREEN, SPARK ARRESTER

$10.99

$

In Stock, Qty 5

0

9

Echo 14586621360

GASKET, EXHAUST

Note: Included In GASKET KIT

$3.49

$

In Stock, only 2 left!

0

10

Echo 14580921261

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

11

Echo 90080000400

SCREW
(Superseded to 90023804014)

$0.99

$

In Stock, Qty 6

0
