PB-460 LN - Echo Backpack Blower (SN: P08211001001 - P08211999999) Engine Cover Parts Diagram

Backpack Blower - compact 320 x 460 x 440 mm, 11.9 kg dry weight, powered by a 44 cc, 2-stroke, air-cooled single-cylinder engine (40 mm bore, 35 mm stroke).

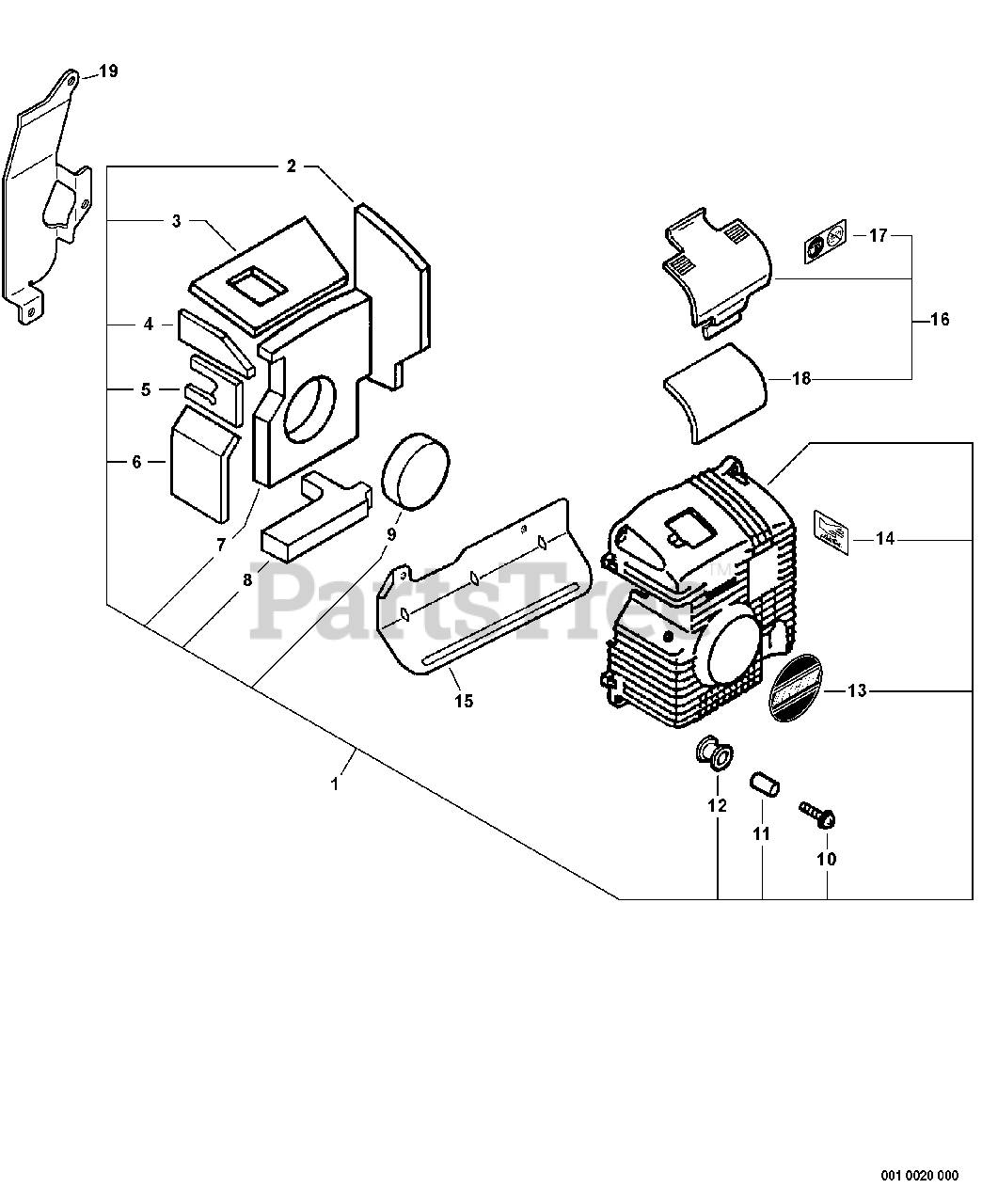

Engine Cover Parts Diagram

  • Title

1

Echo 10400321263

ENGINE COVER KIT

Note: INCLUDES ITEMS 2-15

$102.99

$

Usually ships in 2-4 days

0

2

Echo 10429221160

PAD, FOAM - RIGHT

$6.99

$

Usually ships in 2-4 days

0

3

Echo 10429521260

PAD, FOAM - TOP

$6.99

$

Usually ships in 2-4 days

0

4

Echo 10429421260

PAD, FOAM - LEFT TOP
(Superseded to Discontinued)

$

$

Not available

5

Echo 10429421160

PAD, FOAM - LEFT CENTER

$5.49

$

Usually ships in 2-4 days

0

6

Echo 10429221260

PAD, FOAM - LEFT BOTTOM

$6.49

$

Usually ships in 2-4 days

0

7

Echo 10429521160

PAD, FOAM - REAR

$5.99

$

Usually ships in 2-4 days

0

8

Echo 10429321260

PAD, FOAM - BOTTOM

$5.99

$

Usually ships in 2-4 days

0

9

Echo 10429321160

PAD, FOAM - CENTER REAR
(Superseded to Discontinued)

$

$

Not available

10

Echo 90023905025

SCREW 5×25

$0.99

$

In Stock, only 4 left!

0

11

Echo 10492121260

SPACER

$1.49

$

Usually ships in 2-4 days

0

12

Echo 10491009860

CUSHION

$1.99

$

Usually ships in 2-4 days

0

13

Echo X502000230

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

14

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 1 left!

0

15

Echo C606000010

DEFLECTOR, HEAT

$5.99

$

Usually ships in 2-4 days

0

16

Echo 15900821260

SPARK PLUG COVER ASSY
(Superseded to 15900821261)

Note: Includes ITEMS 17-18

$21.99

$

Usually ships in 2-4 days

0

17

Echo 89061721260

LABEL, CAUTION

$7.49

$

Usually ships in 2-4 days

0

18

Echo 88082621260

PAD, FOAM - SPARK PLUG CAP

$5.99

$

Usually ships in 2-4 days

0

19

Echo A322000000

INSULATOR
(Superseded to A322000060)

$21.99

$

In Stock, only 3 left!

0
