PB-4600 - Echo Backpack Blower (SN: 001001 - 059918) Carburetor -- C1M-K24A Parts Diagram

Backpack blower (PB-4600) - 320 x 460 x 440 mm, 10 kg, air-cooled 2-stroke 44 cc single-cylinder engine, Zama diaphragm carburetor.

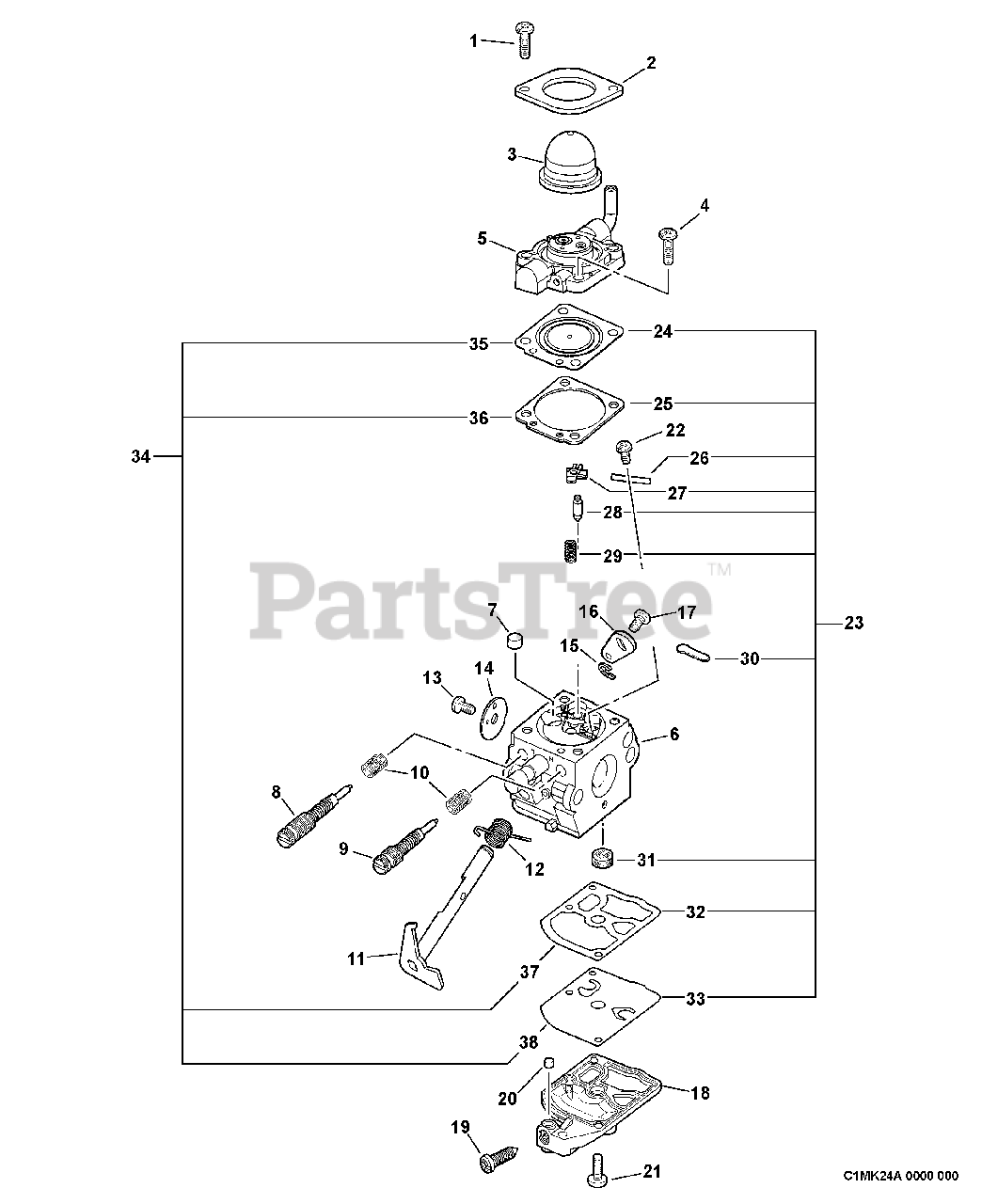

Carburetor -- C1M-K24A Parts Diagram

  • Title

Echo 12520008261

CARBURETOR - C1M-K24A
(Superseded to 12520008560)

$91.99

$

In Stock, only 3 left!

0

1

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308360

RETAINER, PURGE BULB

$2.49

$

Usually ships in 2-4 days

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

5

Echo 12538308360

BODY ASSY, PURGE
(Superseded to Discontinued)

$

$

Not available

6

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

7

Echo 12537651030

NOZZLE, CHECK VALVE

$6.99

$

In Stock, only 1 left!

0

8

Echo 12531808360

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo 12532008360

NEEDLE, HIGH SPEED

$6.49

$

Usually ships in 2-4 days

0

10

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

Usually ships in 2-4 days

0

11

Echo 12531708360

SHAFT, THROTTLE
(Superseded to P005002040)

$7.49

$

Usually ships in 2-4 days

0

12

Echo 12531308360

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531613930

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

15

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

16

Echo 12535008360

LEVER, THROTTLE

$3.49

$

In Stock, only 3 left!

0

17

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

18

Echo 12532408360

COVER, PUMP

$8.99

$

Usually ships in 2-4 days

0

19

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

20

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

21

Echo 12531013930

SCREW

$0.99

$

Usually ships in 2-4 days

0

22

Echo 12533913930

SCREW

$1.99

$

In Stock, only 4 left!

0

23

Echo 12530008360

REPAIR KIT

Note: Includes ITEMS 24-33

$20.99

$

In Stock, only 2 left!

0

24

DIAPHRAGM, METERING

$

$

Not available

25

GASKET, DIAPHRAGM

$

$

Not available

26

PIN, METERING LEVER

$

$

Not available

27

LEVER, METERING

$

$

Not available

28

VALVE, INLET NEEDLE

$

$

Not available

29

SPRING, METERING LEVER

$

$

Not available

30

PLUG, WELCH

$

$

Not available

31

STRAINER

$

$

Not available

32

GASKET, PUMP

$

$

Not available

33

DIAPHRAGM, PUMP

$

$

Not available

34

Echo 12530308360

GASKET / DIAPHRAGM KIT

Note: Includes ITEMS 35-38

$11.99

$

In Stock, only 2 left!

0

35

DIAPHRAGM, METERING

$

$

Not available

36

GASKET, DIAPHRAGM

$

$

Not available

37

GASKET, PUMP

$

$

Not available

38

DIAPHRAGM, PUMP

$

$

Not available
