PB-4600 - Echo Backpack Blower (Type 1E) Fan Case, Blower Fan, Engine Cover Parts Diagram

Backpack blower (PB-4600) - 320 x 460 x 440 mm, 10 kg, air-cooled 2-stroke 44 cc single-cylinder engine, Zama diaphragm carburetor.

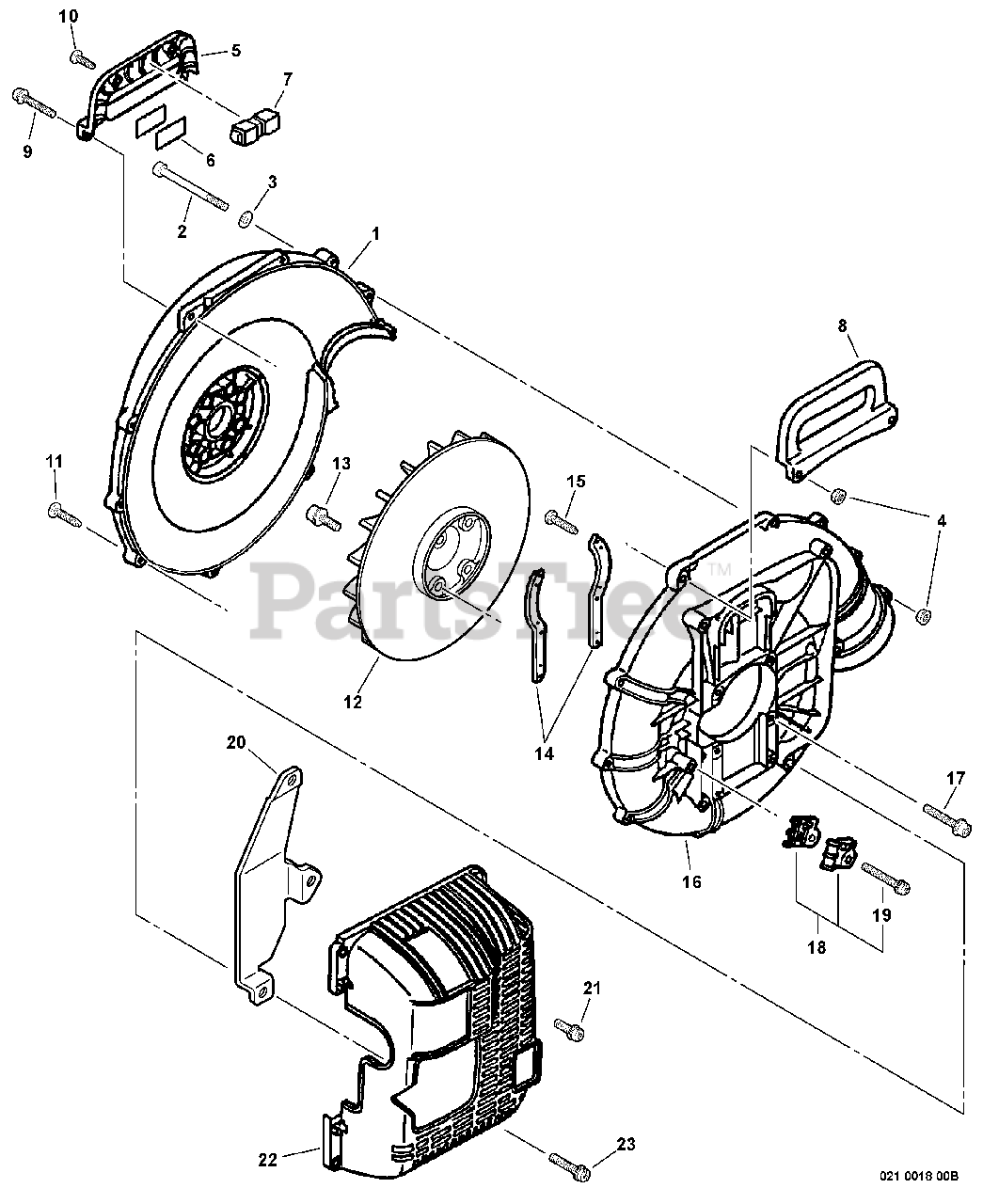

Fan Case, Blower Fan, Engine Cover Parts Diagram

  • Title

1

Echo P021000380

COVER, FAN - INNER

$76.99

$

Usually ships in 2-4 days

0

2

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

3

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

5

Echo 35111008260

HANDLE
(Superseded to 35111008261)

$29.99

$

Usually ships in 2-4 days

0

6

Echo 35133508260

CUSHION

$5.99

$

Usually ships in 2-4 days

0

7

Echo 35133708260

WEIGHT

$13.99

$

Usually ships in 2-4 days

0

8

Echo 35101008260

HANDLE

$29.99

$

Usually ships in 2-4 days

0

9

Echo 90023805045

SCREW 5×45

$0.99

$

In Stock, Qty 5

0

10

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

11

Echo 90025305030

SCREW 5×30

$0.99

$

In Stock, only 1 left!

0

12

Echo 20001009860

FAN
(Superseded to 20001009861)

$113.99

$

Usually ships in 2-4 days

0

13

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

14

Echo 10491308360

BRACKET, ENGINE

$36.99

$

Usually ships in 2-4 days

0

15

Echo 90024603012

SCREW TAPPING 3×12

$0.99

$

Usually ships in 2-4 days

0

16

Echo 20010508260

COVER, FAN - OUTER

$98.99

$

In Stock, only 1 left!

0

17

Echo 90016205032

SCREW 5×32

$1.99

$

Usually ships in 2-4 days

0

18

Echo 17810108260

CABLE HOLDER KIT

Note: Includes ITEM 19

$14.99

$

In Stock, only 1 left!

0

19

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

20

Echo 10027008260

INSULATOR
(Superseded to 10027008261)

$15.99

$

In Stock, only 3 left!

0

21

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

22

Echo 10401208260

COVER, ENGINE

$42.99

$

Usually ships in 2-4 days

0

23

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0
