PB-461 LN - Echo Backpack Blower (SN: 02001001 - 02999999) Blower Tubes Parts Diagram

Backpack Blower - 325 x 520 x 435 mm, 12 kg. Air-cooled, 2-stroke, 44 cc single-cylinder engine (bore 40 mm, stroke 35 mm). Equipped with a Zama diaphragm purge-bulb carburetor and a flywheel magneto ignition system.

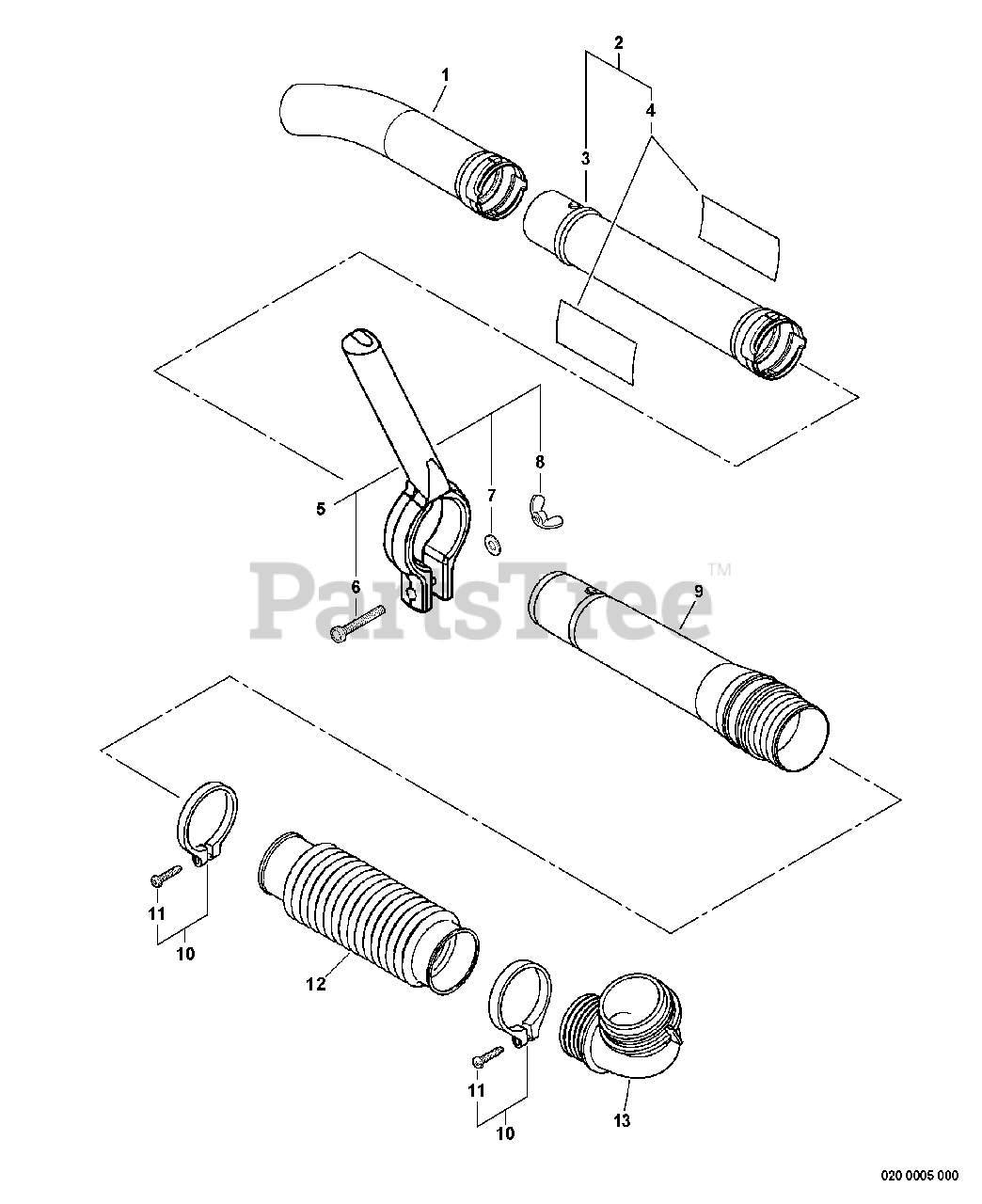

Blower Tubes Parts Diagram

  • Title

1

Echo 21002303461

TUBE, BLOWER - CURVED

$20.99

$

In Stock, Qty 12

0

2

Echo 21000103462

BLOWER TUBE KIT - STRAIGHT
(Superseded to 21000103463)

Note: Includes ITEMS 3-4

$17.99

$

In Stock, only 4 left!

0

3

Echo 21001503460

TUBE, BLOWER - STRAIGHT
(Superseded to 21001503461)

$13.99

$

In Stock, Qty 9

0

4

Echo 89011804261

LABEL - ECHO
(Superseded to X502000060)

$1.99

$

In Stock, Qty 20+

0

5

Echo 001107

HANDLE ASSY

Note: Includes ITEMS 6-8

$19.99

$

In Stock, only 2 left!

0

6

Echo 90010006045

BOLT 6×45

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 2 left!

0

9

Echo 21200507560

TUBE, SWIVEL

$13.99

$

In Stock, Qty 5

0

10

Echo V495000430

CLAMP 58.7 MM / 82.5 MM

Note: Includes ITEM 11

$2.49

$

In Stock, Qty 20+

0

11

Echo 90023505025

SCREW 5×25

$0.99

$

Usually ships in 2-4 days

0

12

Echo 21001308360

TUBE, FLEXIBLE

$42.99

$

In Stock, Qty 9

0

13

Echo E160000061

TUBE, BLOWER - ELBOW

$23.99

$

In Stock, only 3 left!

0
