PB-500 - Echo Backpack Blower (SN: P02837001001 - P02837002000) Cylinder, Crankcase, Piston Parts Diagram

Backpack Blower

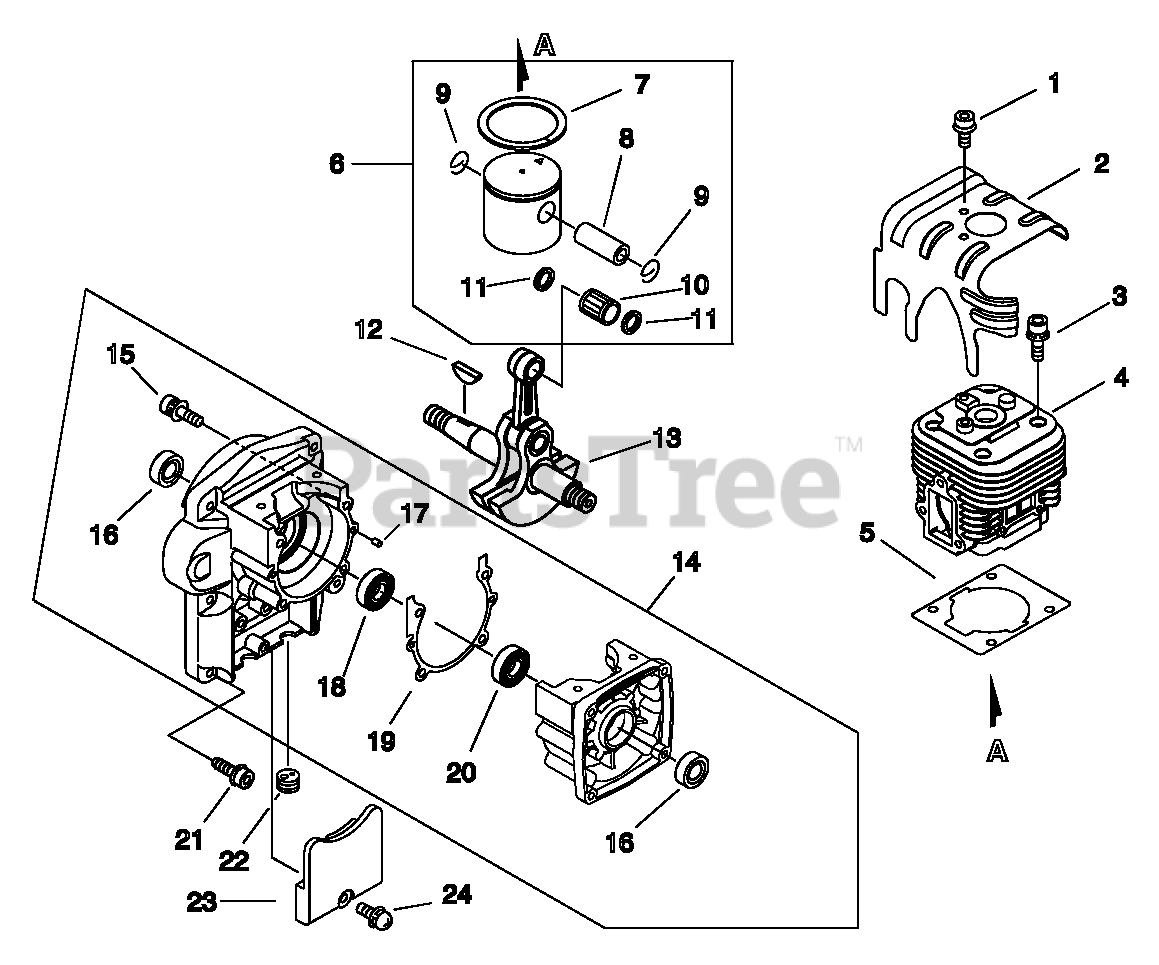

Cylinder, Crankcase, Piston Parts Diagram

  • Title

1

Echo 90010605008

BOLT 5×8

$0.99

$

In Stock, Qty 20+

0

2

Echo A160001040

COVER, CYLINDER

$10.99

$

Usually ships in 2-4 days

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo A130000900

CYLINDER
(Superseded to A130000901)

$177.99

$

Usually ships in 2-4 days

0

5

Echo V100000260

GASKET, CYLINDER

$5.49

$

In Stock, Qty 5

0

6

Echo P021014970

PISTON KIT
(Superseded to P021014971)

$82.99

$

In Stock, only 2 left!

0

7

Echo A101000200

RING, PISTON

$12.99

$

In Stock, only 2 left!

0

8

Echo 10001306210

PIN, PISTON

$9.49

$

Usually ships in 2-4 days

0

9

Echo V580000010

RING, SNAP Ø10

$0.99

$

Usually ships in 2-4 days

0

10

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

11

Echo 10001417330

WASHER, THRUST
(Superseded to V307000050)

$5.99

$

In Stock, only 3 left!

0

12

Echo 90032303014

KEY, WOODRUFF 3×14

$1.99

$

In Stock, Qty 20+

0

13

Echo A011000530

CRANKSHAFT ASSY

$258.99

$

Usually ships in 2-4 days

0

14

Echo P021014980

CRANKCASE ASSY

$259.99

$

Usually ships in 2-4 days

0

15

Echo 900162-05040

BOLT 5×40

$1.99

$

In Stock, only 1 left!

0

16

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

17

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

18

Echo 9403236302

BEARING, BALL 6302

$21.99

$

In Stock, only 2 left!

0

19

Echo V102000050

GASKET, CRANKCASE

$2.49

$

In Stock, only 1 left!

0

20

Echo 90081036203

BEARING, BALL 6203 C3

$15.99

$

Usually ships in 2-4 days

0

21

Echo 90016205032

SCREW 5×32

$1.99

$

Usually ships in 2-4 days

0

22

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

23

Echo 15912908261

COVER, DUST

$6.99

$

In Stock, only 2 left!

0

24

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, Qty 6

0
