PB-500 - Echo Backpack Blower (SN: P02837001001 - P02837002000) Fan Case Parts Diagram

Backpack Blower

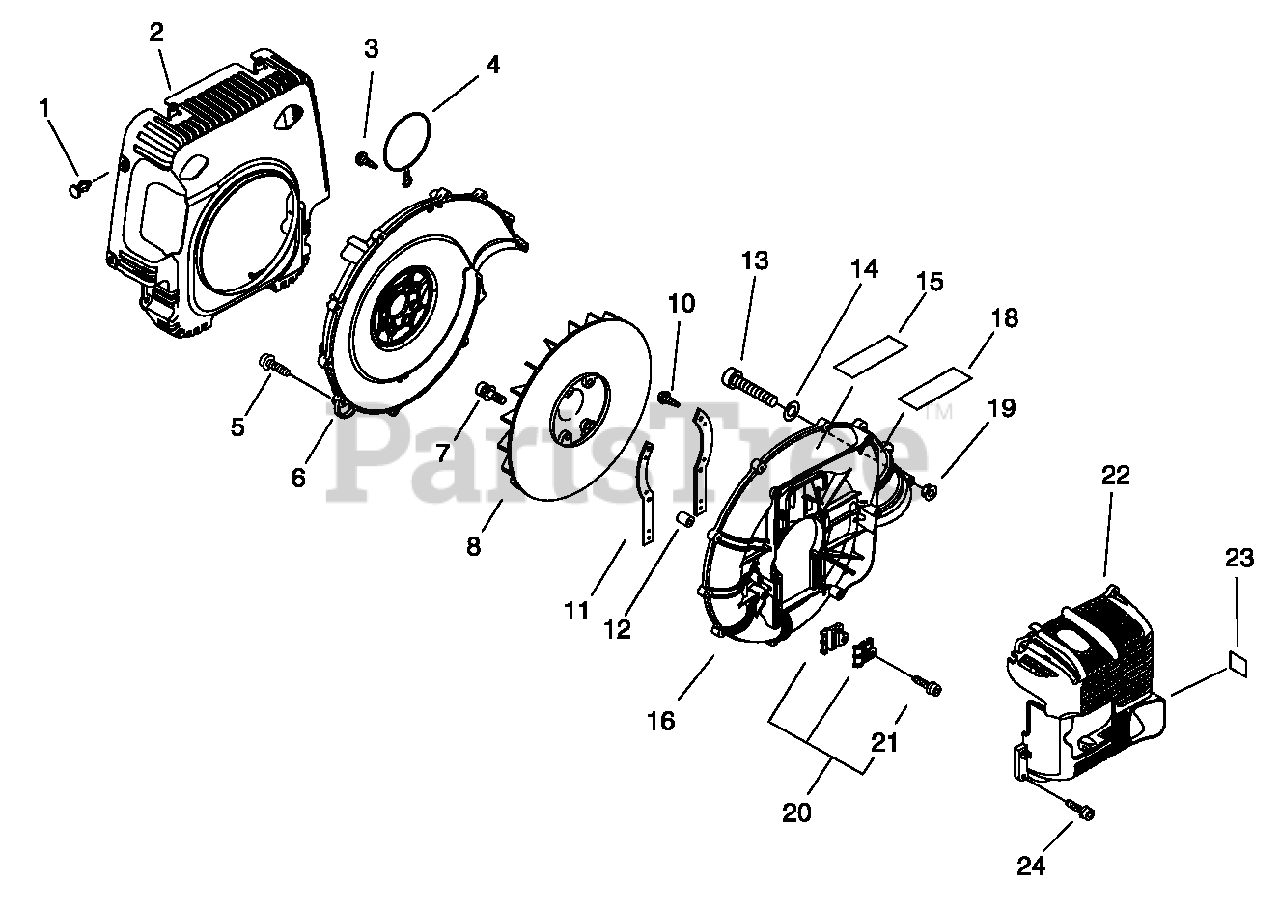

Fan Case Parts Diagram

  • Title

1

Echo V491000120

CLIP

$0.99

$

In Stock, Qty 20+

0

2

Echo E104000061

GUARD, DEBRIS

$8.99

$

Usually ships in 2-4 days

0

3

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, only 3 left!

0

4

Echo C617000230

STRAP, SAFETY
(Superseded to C617000540)

$4.99

$

Usually ships in 2-4 days

0

5

Echo 9114505025

BOLT, TAPPING 5×25

$1.49

$

In Stock, Qty 6

0

6

Echo E103000540

COVER, FAN
(Superseded to E103000541)

$57.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo 200010-09861

FAN

$113.99

$

Usually ships in 2-4 days

0

10

Echo 90024603012

SCREW TAPPING 3×12

$0.99

$

Usually ships in 2-4 days

0

11

Echo 10491308360

BRACKET, ENGINE

$36.99

$

Usually ships in 2-4 days

0

12

Echo V354000130

COLLAR
(Superseded to Discontinued)

$

$

Not available

13

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo X503009520

LABEL, MODEL
(Superseded to X503009580)

$4.99

$

Usually ships in 2-4 days

0

16

Echo E103000531

CASE, FAN

$81.99

$

Usually ships in 2-4 days

0

18

Echo X505002080

LABEL, CAUTION - ISO

$13.99

$

In Stock, Qty 7

0

19

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

20

Echo P021015010

BRACKET KIT, CABLE

$18.99

$

Usually ships in 2-4 days

0

21

Echo 86120

SCREW, TAPPING

$

$

Currently unavailable

22

Echo A190000720

COVER, ENGINE
(Superseded to A190000721)

$

$

Not available

23

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 1 left!

0

24

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 12

0
