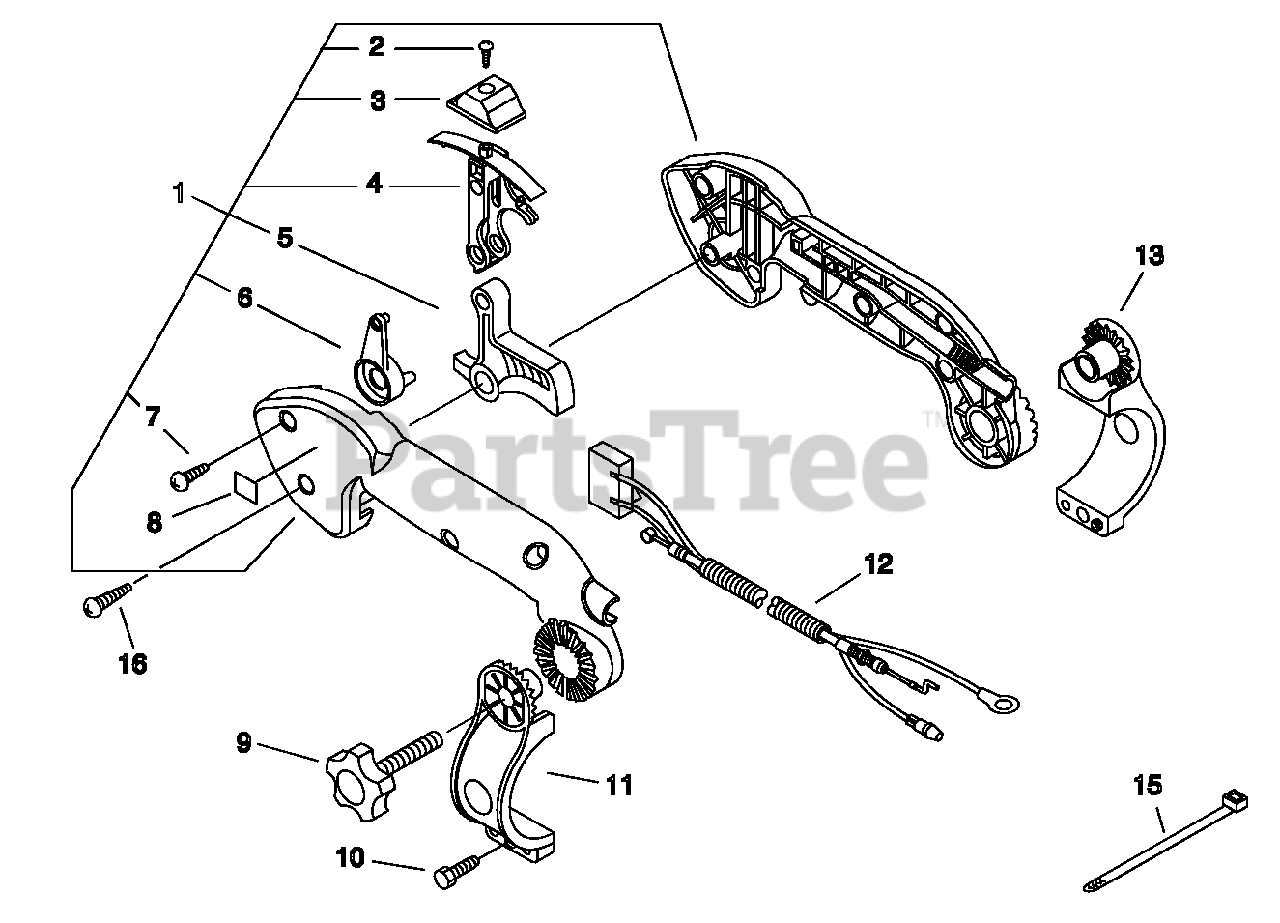

PB-500 - Echo Backpack Blower (SN: P02837001001 - P02837002000) Throttle Parts Diagram

Backpack Blower

Throttle Parts Diagram

  • Title

1

Echo P021015220

CONTROL HANDLE ASSY
(Superseded to P021015221)

$15.99

$

In Stock, only 2 left!

0

2

Echo 9154503014

SCREW 3×14

$0.99

$

Usually ships in 2-4 days

0

3

Echo E151000000

KNOB, CONTROL
(Superseded to E151000001)

$1.99

$

In Stock, only 2 left!

0

4

Echo C453000211

CONTROL, THROTTLE

$1.99

$

In Stock, only 3 left!

0

5

Echo 17801007561

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 11

0

6

Echo C453000203

LEVER, THROTTLE

$1.99

$

In Stock, Qty 15

0

7

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

8

Echo X505000950

LABEL, CAUTION - IDLE

$3.99

$

In Stock, only 4 left!

0

9

Echo 30581208260

KNOB, SCREW
(Superseded to V299000630)

$5.49

$

In Stock, Qty 20+

0

10

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 12

0

11

Echo C405000240

BRACKET, HANDLE - RIGHT
(Superseded to C405000241)

$4.49

$

In Stock, Qty 7

0

12

Echo V043000250

CONTROL CABLE ASSY
(Superseded to V043000251)

$46.99

$

In Stock, Qty 8

0

13

Echo C405000230

BRACKET, HANDLE - LEFT
(Superseded to C405000231)

$5.49

$

In Stock, only 1 left!

0

15

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

16

Echo 88995021560

SCREW 5

$0.99

$

In Stock, only 2 left!

0
