PB-500 - Echo Backpack Blower (SN: P02837002001 - P02837999999) Cylinder, Crankcase, Piston Parts Diagram

Backpack Blower

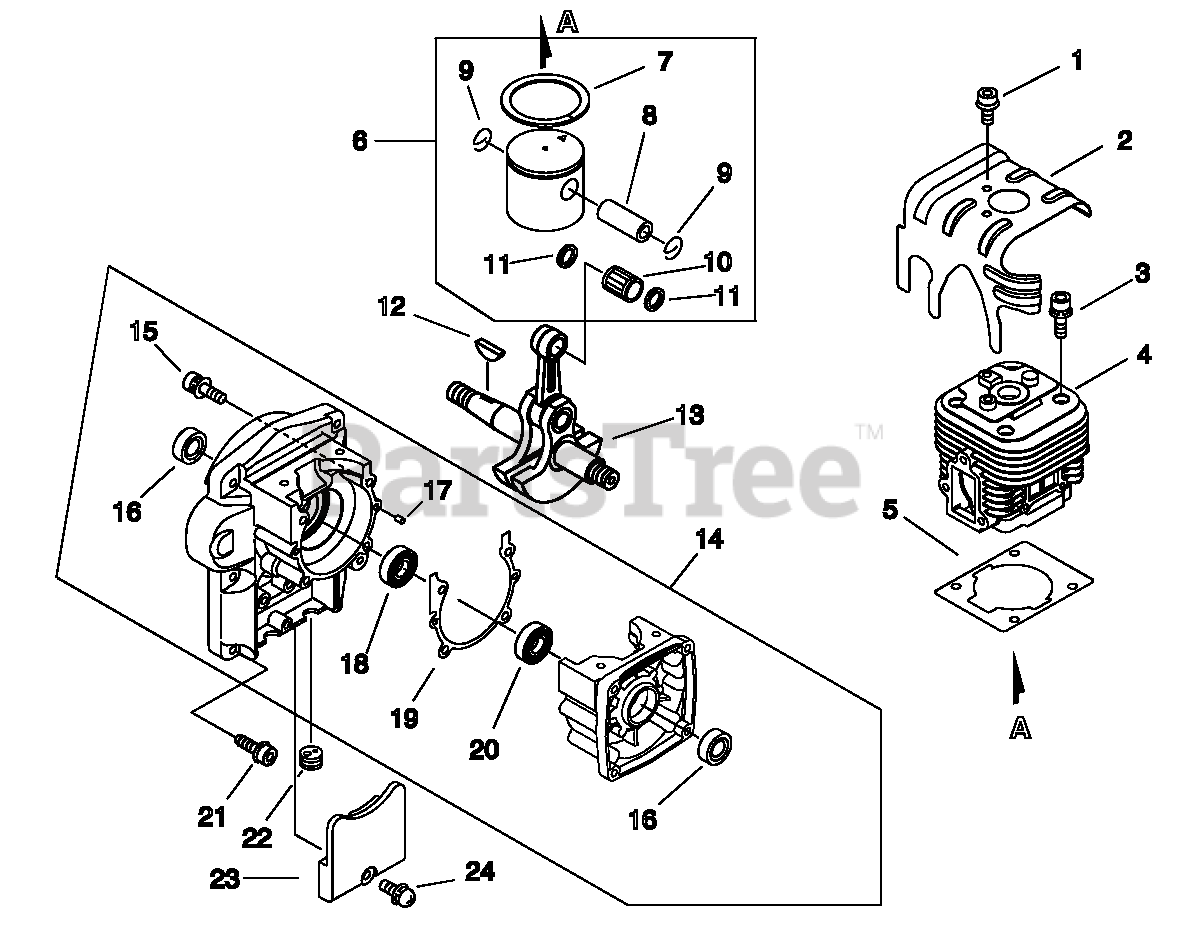

Cylinder, Crankcase, Piston Parts Diagram

  • Title

1

Echo 90010605008

SCREW - 5X8

$0.99

$

In Stock, Qty 20+

0

2

Echo A160001040

SHIELD, CYLINDER

$9.49

$

In Stock, only 1 left!

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo A130000900

CYLINDER
(Superseded to A130000901)

$148.99

$

Usually ships in 2-4 days

0

5

Echo V100000260

GASKET, CYLINDER

$4.99

$

In Stock, Qty 19

0

6

Echo P021014970

PISTON KIT
(Superseded to P021014971)

$68.99

$

In Stock, Qty 5

0

6

Echo P021014971

PISTON KIT
(Superseded to P021014972)

$68.99

$

In Stock, Qty 5

0

6

Echo P021014972

PISTON KIT
(Superseded to P021044131)

$68.99

$

In Stock, Qty 5

0

7

Echo A101000200

RING, PISTON

$10.99

$

In Stock, Qty 11

0

8

Echo 10001306210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001339730

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

9

Echo V580000010

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

10

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

10

Echo V555000010

BEARING, NEEDLE - 10

$10.99

$

In Stock, Qty 20+

0

11

Echo 10001417330

SPACER, PISTON
(Superseded to V307000050)

$4.99

$

In Stock, only 3 left!

0

12

Echo 90032303014

KEY - 3X14

$1.49

$

In Stock, only 2 left!

0

13

Echo A011000530

CRANKSHAFT ASSY

$215.99

$

Usually ships in 2-4 days

0

14

Echo P021014980

CRANKCASE KIT

$216.99

$

Usually ships in 2-4 days

0

14

Echo P021014981

CRANKCASE KIT

$

$

Currently unavailable

14

Echo P021014982

CRANKCASE KIT

$

$

Currently unavailable

15

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 14

0

16

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

17

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

18

Echo 9403236302

BEARING, BALL - 6302

$17.99

$

In Stock, only 4 left!

0

19

Echo V102000050

GASKET, CRANKCASE

$1.99

$

In Stock, only 3 left!

0

20

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

21

Echo 90016205032

SCREW - 5X32

$1.49

$

Usually ships in 2-4 days

0

22

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 9

0

23

Echo 15912908261

COVER, DUST

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0
