PB-500 - Echo Backpack Blower (SN: P02837002001 - P02837999999) Fan Case Parts Diagram

Backpack Blower

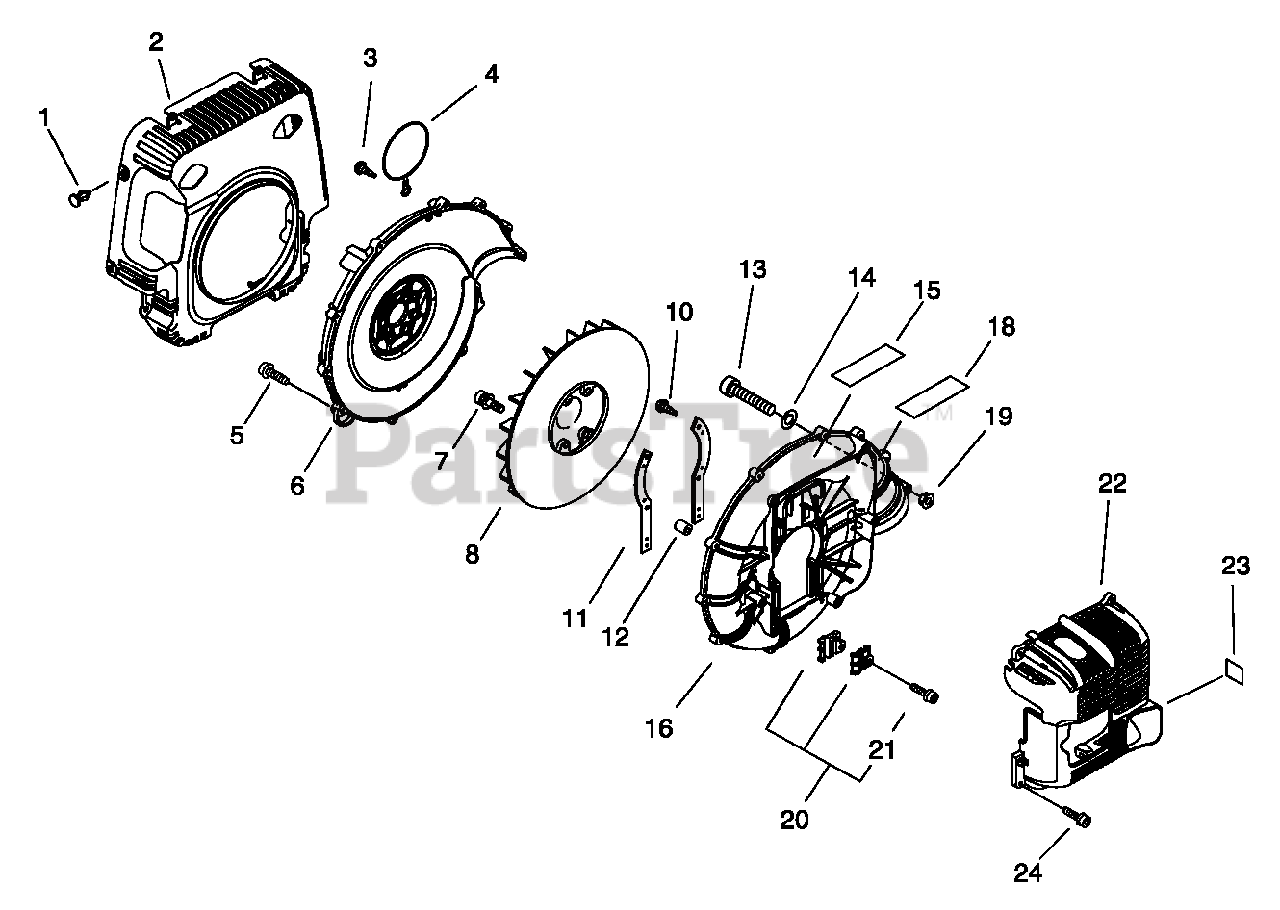

Fan Case Parts Diagram

  • Title

1

Echo V491000120

CLIP

$0.99

$

In Stock, Qty 20+

0

2

Echo E104000061

GUARD, DEBRIS

$7.49

$

Usually ships in 2-4 days

0

3

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, Qty 11

0

4

Echo C617000230

STOPPER
(Superseded to C617000540)

$4.99

$

Usually ships in 2-4 days

0

5

Echo 9114505025

SCREW - 5X25 -- TAPPING

$0.99

$

In Stock, Qty 6

0

6

Echo E103000540

COVER, FAN - INNER
(Superseded to E103000541)

$47.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 200010-09861

FAN

$94.99

$

Usually ships in 2-4 days

0

10

Echo 90024603012

SCREW - 3X12 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

11

Echo 10491308360

BRACKET, ENGINE

$30.99

$

Usually ships in 2-4 days

0

12

Echo V354000130

COLLAR - 6
(Superseded to Discontinued)

$

$

Not available

13

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 20+

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo X503009520

LABEL - MODEL
(Superseded to X503009580)

$3.99

$

In Stock, only 1 left!

0

16

Echo E103000531

COVER, FAN - OUTER

$67.99

$

Usually ships in 2-4 days

0

18

Echo X505002080

LABEL - CAUTION

$0.99

$

In Stock, Qty 6

0

19

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

20

Echo P021015010

CABLE BRACKET KIT

$15.99

$

Usually ships in 2-4 days

0

21

Echo 9114505025

SCREW - 5X25 -- TAPPING

$0.99

$

In Stock, Qty 6

0

22

Echo A190000720

COVER, ENGINE
(Superseded to A190000721)

$18.99

$

Usually ships in 2-4 days

0

22

Echo A190000721

COVER, ENGINE

$18.99

$

Usually ships in 2-4 days

0

23

Echo X505002310

LABEL - CAUTION

$1.99

$

In Stock, Qty 20+

0

24

Echo 9114505020

SCREW - 5X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0
