PB-500 - Echo Backpack Blower (SN: P02837002001 - P02837999999) Starter, Magneto, Muffler Parts Diagram

Backpack Blower

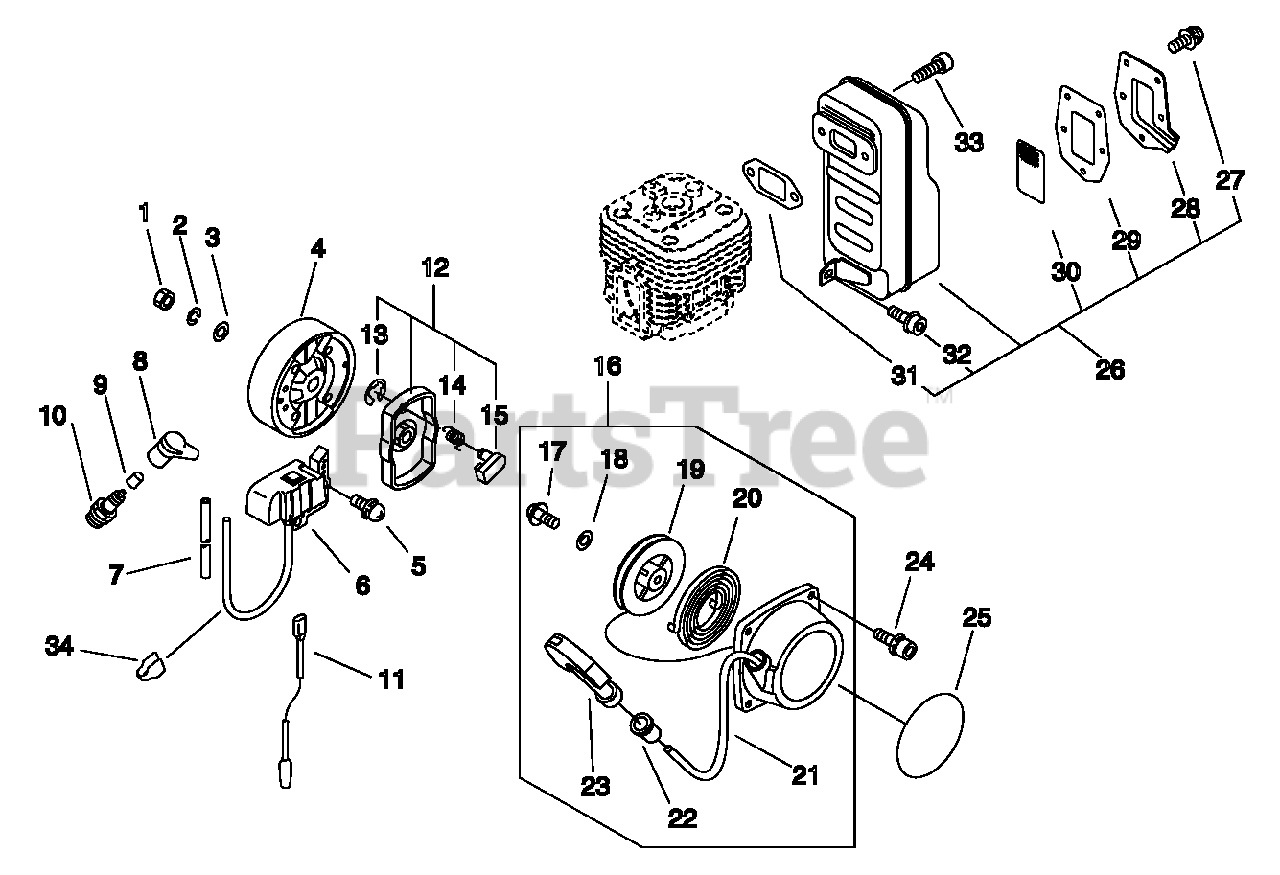

Starter, Magneto, Muffler Parts Diagram

  • Title

1

Echo 90050100010

NUT - 10

$0.99

$

In Stock, only 2 left!

0

2

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 6

0

3

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

4

Echo A409000331

FLYWHEEL

$135.99

$

Usually ships in 2-4 days

0

5

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 6

0

6

Echo A411000420

COIL, IGNITION
(Superseded to A040000030)

$157.99

$

Usually ships in 2-4 days

0

7

Echo 15611106160

TUBE - VINYL

$1.99

$

In Stock, Qty 6

0

8

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

9

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 11

0

10

Echo A425000000

SPARK PLUG -- BPMR-8Y

$3.99

$

In Stock, Qty 20+

0

11

Echo V485000190

LEAD

$2.99

$

In Stock, only 2 left!

0

12

Echo 17720206210

STARTER PAWL ASSY
(Superseded to A052000470)

$7.49

$

In Stock, Qty 18

0

16

Echo A051001270

STARTER ASSY
(Superseded to A050000330)

$58.99

$

In Stock, Qty 12

0

24

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 8

0

25

Echo X502000410

LABEL - ECHO

$2.49

$

In Stock, only 4 left!

0

26

Echo P021015040

MUFFLER ASSY
(Superseded to P021015041)

$108.99

$

Usually ships in 2-4 days

0

27

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

28

Echo A313001030

GUIDE, EXHAUST

$15.99

$

Usually ships in 2-4 days

0

29

Echo 14586604261

GASKET, EXHAUST
(Superseded to V104002220)

$10.99

$

In Stock, only 1 left!

0

30

Echo 14586206720

SCREEN, SPARK ARRESTOR

$5.49

$

In Stock, Qty 11

0

31

Echo V104000900

GASKET, EXHAUST

$10.99

$

In Stock, only 3 left!

0

32

Echo 90010605016

SCREW - 5X16

$1.49

$

Usually ships in 2-4 days

0

33

Echo 90010506020

SCREW - 6X20

$1.49

$

In Stock, Qty 20+

0
