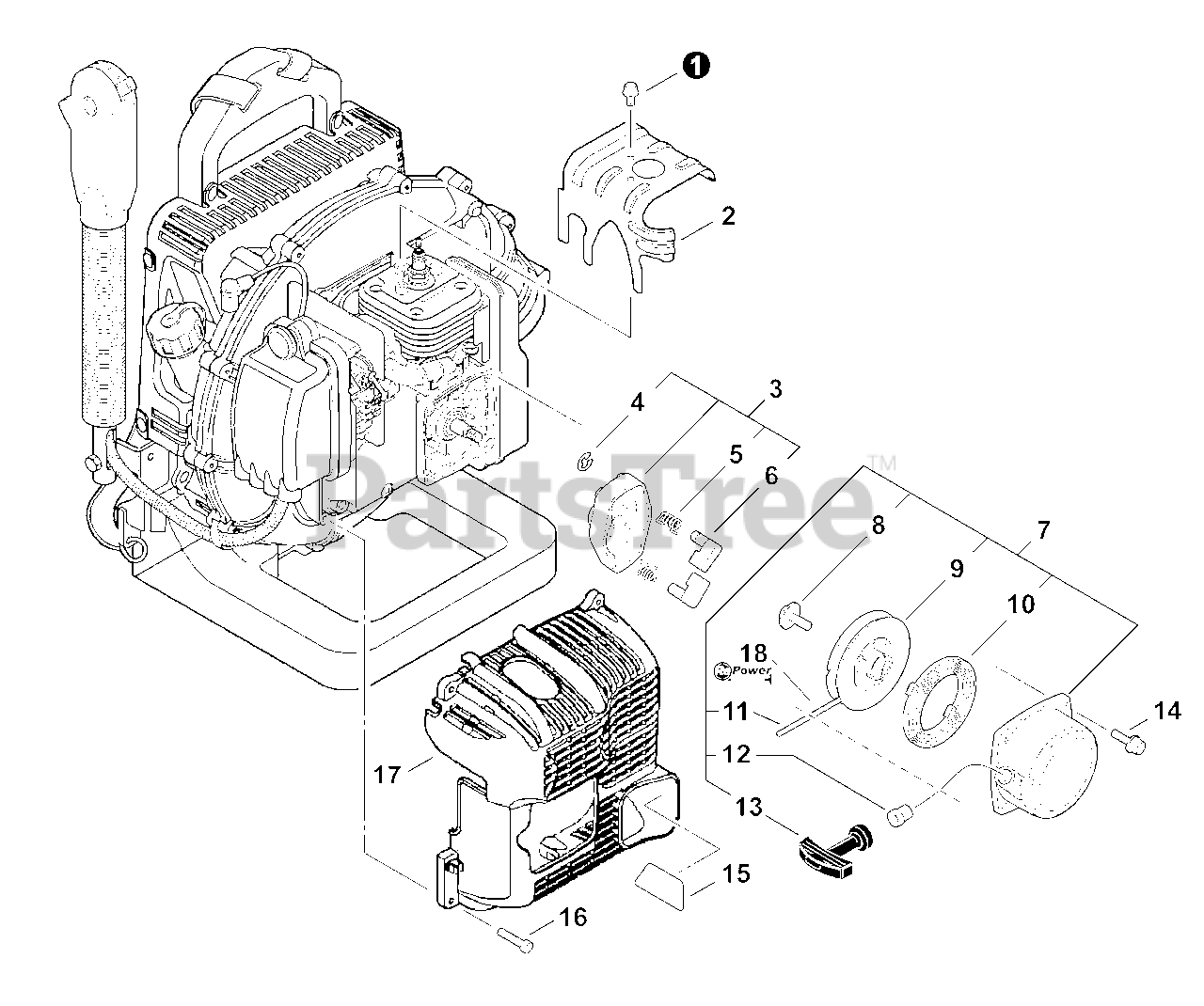

PB-500 H - Echo Backpack Blower (SN: P31513001001 - P31513999999) Starter S/N: P31513001618-P31513999999 Parts Diagram

Backpack blower powered by a 2-stroke, air-cooled single-cylinder engine (bore 43 mm, stroke 35 mm). Compact 380 x 545 x 490 mm, 9.4 kg dry weight, ideal for mobile dust-removal tasks.

Starter S/N: P31513001618-P31513999999 Parts Diagram

  • Title

1

Echo 90010605008

BOLT 5×8

$0.99

$

In Stock, Qty 20+

0

2

Echo A160001041

COVER, CYLINDER

$10.99

$

Usually ships in 2-4 days

0

3

Echo A052000470

PAWL ASSY, STARTER

Note: Includes Items 4-6

$7.49

$

In Stock, Qty 15

0

4

Echo P022002100

E-RING 4

$0.99

$

In Stock, only 3 left!

0

5

Echo 17723440630

SPRING, RETURN

$3.99

$

Usually ships in 2-4 days

0

6

Echo P022036620

PAWL, STARTER

$7.49

$

Usually ships in 2-4 days

0

7

Echo A051002800

STARTER ASSY

Note: Includes Items 8-13

$53.99

$

In Stock, only 2 left!

0

8

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

9

Echo P022036630

REEL, ROPE

$21.99

$

In Stock, Qty 8

0

10

Echo P022036640

SPRING, SPIRAL

$14.99

$

In Stock, only 2 left!

0

11

Echo P022036650

ROPE, STARTER

$

$

Currently unavailable

12

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

Note: See RePower Maintenance Kits

$2.99

$

Usually ships in 2-4 days

0

13

Echo 17722801110

GRIP, STARTER

$8.99

$

In Stock, only 3 left!

0

14

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, only 3 left!

0

15

Echo A209000450

DEFLECTOR, HEAT

$3.49

$

Usually ships in 2-4 days

0

16

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 12

0

17

Echo A190000721

COVER, ENGINE

$

$

Not available

18

Echo 99944440000

BULK STARTER ROPE - Ø 3.0 MM×61 M

Note: Repower bulk option: 99944440000

$35.99

$

In Stock, only 2 left!

0
