PB-500 H - Echo Backpack Blower (SN: P33011001001 - P33011999999) Intake Parts Diagram

Backpack blower powered by a 2-stroke, air-cooled single-cylinder engine (bore 43 mm, stroke 35 mm). Compact 380 x 545 x 490 mm, 9.4 kg dry weight, ideal for mobile dust-removal tasks.

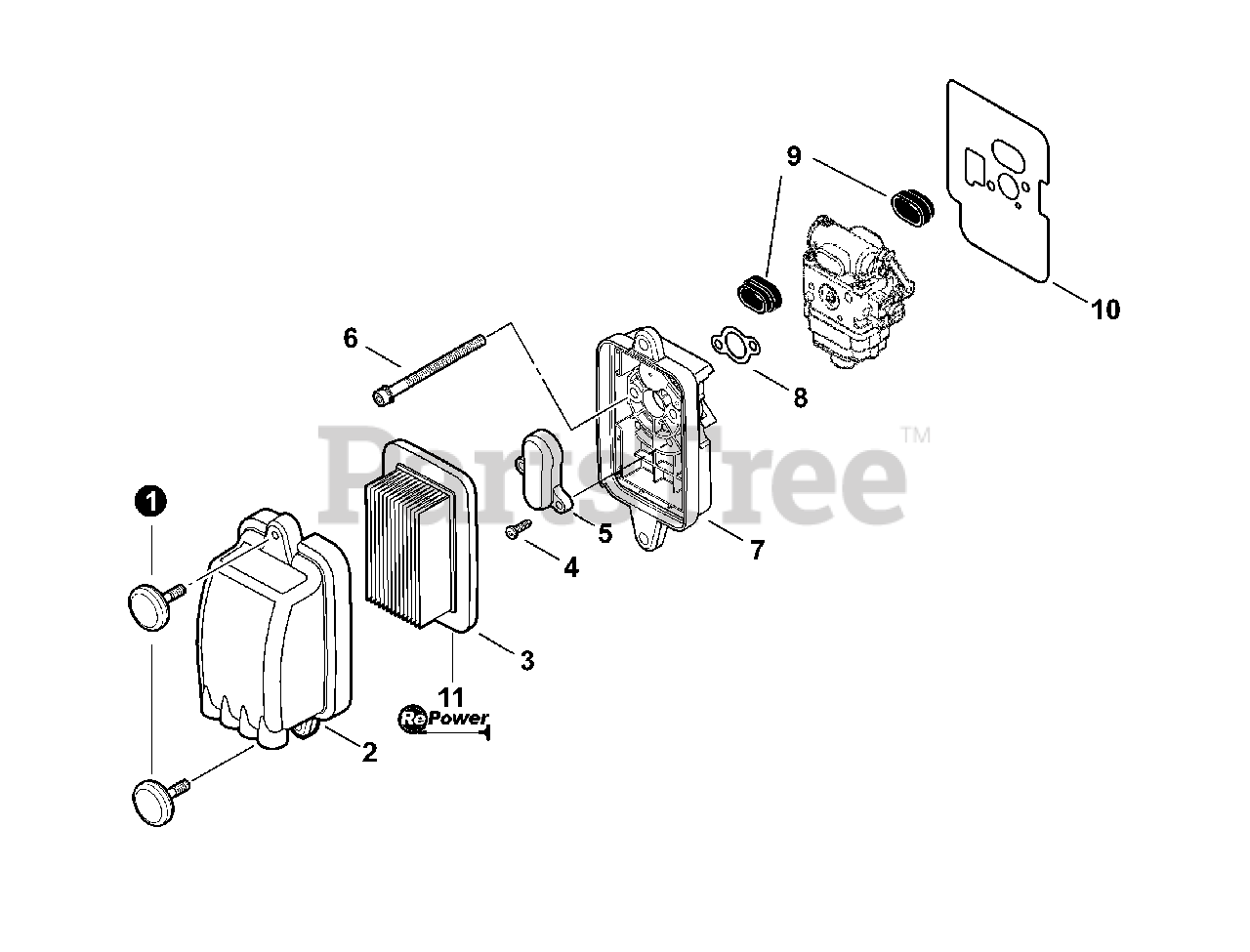

Intake Parts Diagram

  • Title

1

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.99

$

In Stock, Qty 20+

0

2

Echo A232000461

COVER, AIR FILTER
(Superseded to A232000462)

$4.49

$

In Stock, only 3 left!

0

3

Echo A226000032

FILTER, AIR

Note: Included in Tune-up kit

$12.99

$

In Stock, Qty 20+

0

4

Echo 90024604014

SCREW TAPPING 4×14

$0.99

$

In Stock, Qty 12

0

5

Echo A221000020

PLATE, PREVENT

$1.99

$

In Stock, Qty 10

0

6

Echo 90016205065

SCREW 5×65

$3.49

$

In Stock, Qty 5

0

7

Echo P021015001

CASE, AIR FILTER

$28.99

$

In Stock, only 4 left!

0

8

Echo V103000471

GASKET, INTAKE

$1.99

$

In Stock, Qty 8

0

9

Echo C483000032

CONNECTOR

$2.99

$

In Stock, only 2 left!

0

10

Echo V103000461

GASKET, INTAKE

$6.99

$

In Stock, only 2 left!

0

11

Echo 90151

TUNE-UP KIT - REPOWER
(Superseded to 90156)

Note: See RePower Maintenance Kits

$27.99

$

In Stock, Qty 20+

0
