PB-500 T - Echo Backpack Blower (SN: P31212001001 - P31212999999) Tube Mount Throttle Control Parts Diagram

Backpack blower PB-500T - 50.8 cc engine, 328 mm x 470 mm x 490 mm (w/o pipes), 9.2 kg dry weight. Includes optional cruise control kit, rain-gutter kit, curved-tip blower tube, and vacuum attachment.

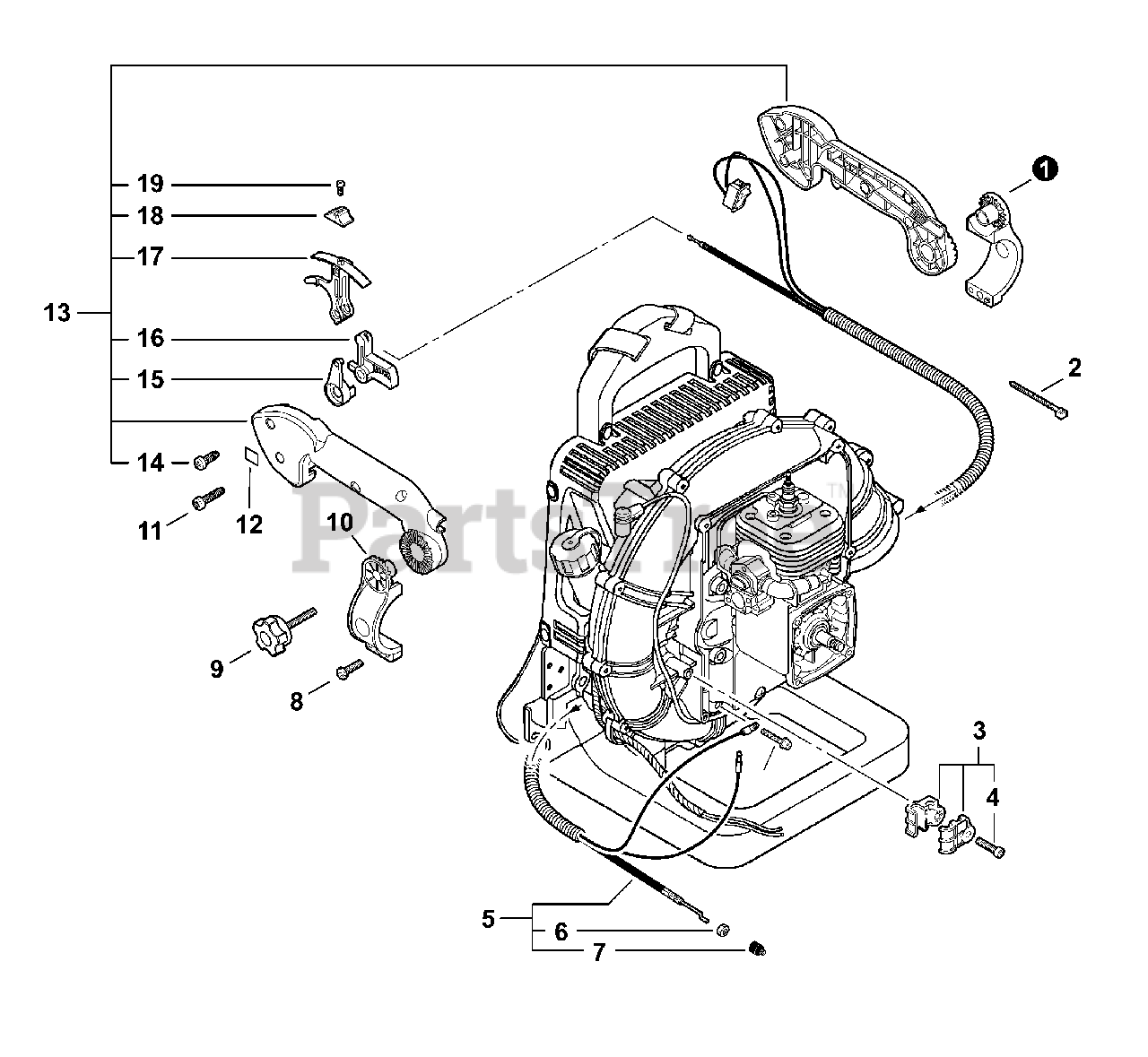

Tube Mount Throttle Control Parts Diagram

  • Title

1

Echo C405000240

BRACKET, HANDLE - RIGHT
(Superseded to C405000241)

$4.49

$

In Stock, Qty 7

0

2

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

3

Echo P021015010

BRACKET KIT, CABLE

Note: Includes Item 4

$18.99

$

Usually ships in 2-4 days

0

4

Echo 9114505025

BOLT, TAPPING 5×25

$1.49

$

In Stock, Qty 6

0

5

Echo V043000250

CONTROL CABLE ASSY
(Superseded to V043000251)

Note: Includes Items 6-7

$46.99

$

In Stock, Qty 8

0

6

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

7

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

8

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 12

0

9

Echo 30581208260

KNOB, SCREW
(Superseded to V299000630)

$5.49

$

In Stock, Qty 20+

0

10

Echo C405000230

BRACKET, HANDLE - LEFT
(Superseded to C405000231)

$5.49

$

In Stock, only 1 left!

0

11

Echo 88995021560

SCREW 5

$0.99

$

In Stock, only 2 left!

0

12

Echo X505000950

LABEL, CAUTION - IDLE

$3.99

$

In Stock, only 4 left!

0

13

Echo P021015220

CONTROL HANDLE ASSY
(Superseded to P021015221)

Note: Includes Items 14-19

$15.99

$

In Stock, only 2 left!

0

14

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

15

Echo C453000203

LEVER, THROTTLE

$1.99

$

In Stock, Qty 15

0

16

Echo 17801007561

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 11

0

17

Echo C453000211

CONTROL, THROTTLE

$1.99

$

In Stock, only 3 left!

0

18

Echo E151000000

KNOB, CONTROL
(Superseded to E151000001)

$1.99

$

In Stock, only 2 left!

0

19

Echo 9154503014

SCREW 3×14

$0.99

$

Usually ships in 2-4 days

0
