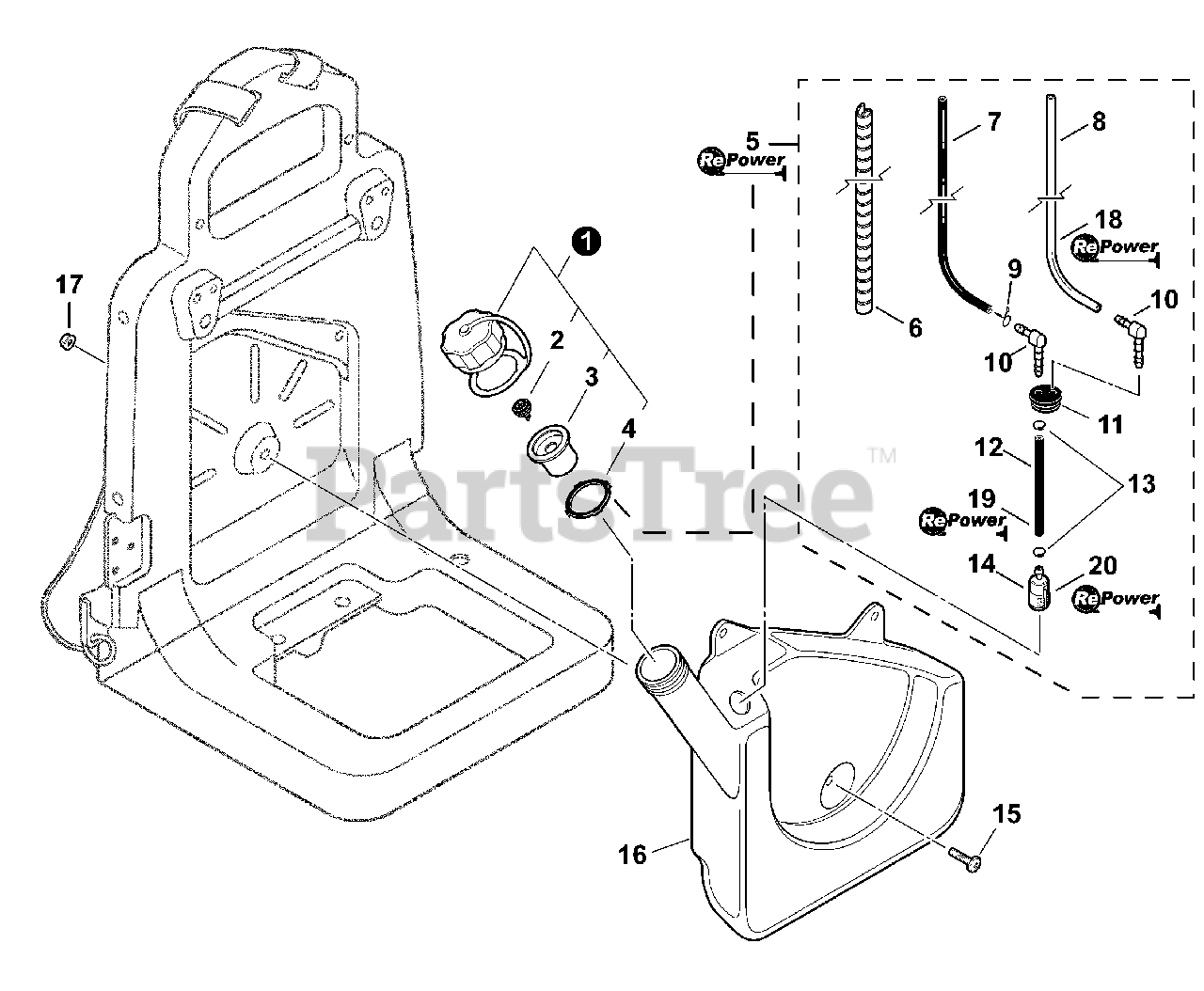

PB-500 T - Echo Backpack Blower (SN: P31413001001 - P31413999999) Fuel System S/N: P31413001433-P31413999999 Parts Diagram

Backpack blower PB-500T - 50.8 cc engine, 328 mm x 470 mm x 490 mm (w/o pipes), 9.2 kg dry weight. Includes optional cruise control kit, rain-gutter kit, curved-tip blower tube, and vacuum attachment.

Fuel System S/N: P31413001433-P31413999999 Parts Diagram

  • Title

1

Echo 13160009861

CAP ASSY, FUEL
(Superseded to P100006490)

Note: Includes Items 2-4

$13.99

$

In Stock, Qty 12

0

2

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 20+

0

3

Echo A358000000

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

4

Echo 13101621060

GASKET, FUEL CAP
(Superseded to 13101621061)

$

$

Not available

5

Echo 90132BP

FUEL SYSTEM KIT
(Superseded to Discontinued)

Note: Includes Items 6-14

$

$

Not available

6

Echo V475004110

TUBE, SPIRAL
(Superseded to Discontinued)

$

$

Not available

7

Echo V471003750

PIPE, FUEL - 3×5×470 - BLACK

$

$

Not available

8

Echo V471003740

PIPE, FUEL - 3×6×470 - CLEAR

Note: Repower Bulk 90017

$4.99

$

Usually ships in 2-4 days

0

9

Echo V490000510

CLIP, SPRING Ø5.2

$1.49

$

In Stock, Qty 20+

0

10

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

11

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

12

Echo V471000770

PIPE, FUEL 3×6×280 MM
(Superseded to V471000771)

Note: Repower Bulk 90015

$4.49

$

In Stock, Qty 13

0

13

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

14

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

15

Echo 90020905020

SCREW 5×20
(Superseded to Discontinued)

$

$

Not available

16

Echo A350000711

TANK, FUEL

$50.99

$

In Stock, only 3 left!

0

17

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

18

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: Repower Bulk Option

$69.99

$

In Stock, Qty 13

0

19

Echo 90015

BULK PIPE - 3×6 MM BLACK (4 PIECES×2 M)

Note: Repower Bulk Option

$48.99

$

In Stock, Qty 7

0

20

Echo 90151

TUNE-UP KIT - REPOWER
(Superseded to 90156)

Note: See RePower Maintenance Kits

$27.99

$

In Stock, Qty 20+

0
