PB-500 T - Echo Backpack Blower (SN: P31413001001 - P31413999999) Tube Mount Throttle Control Parts Diagram

Backpack Blower

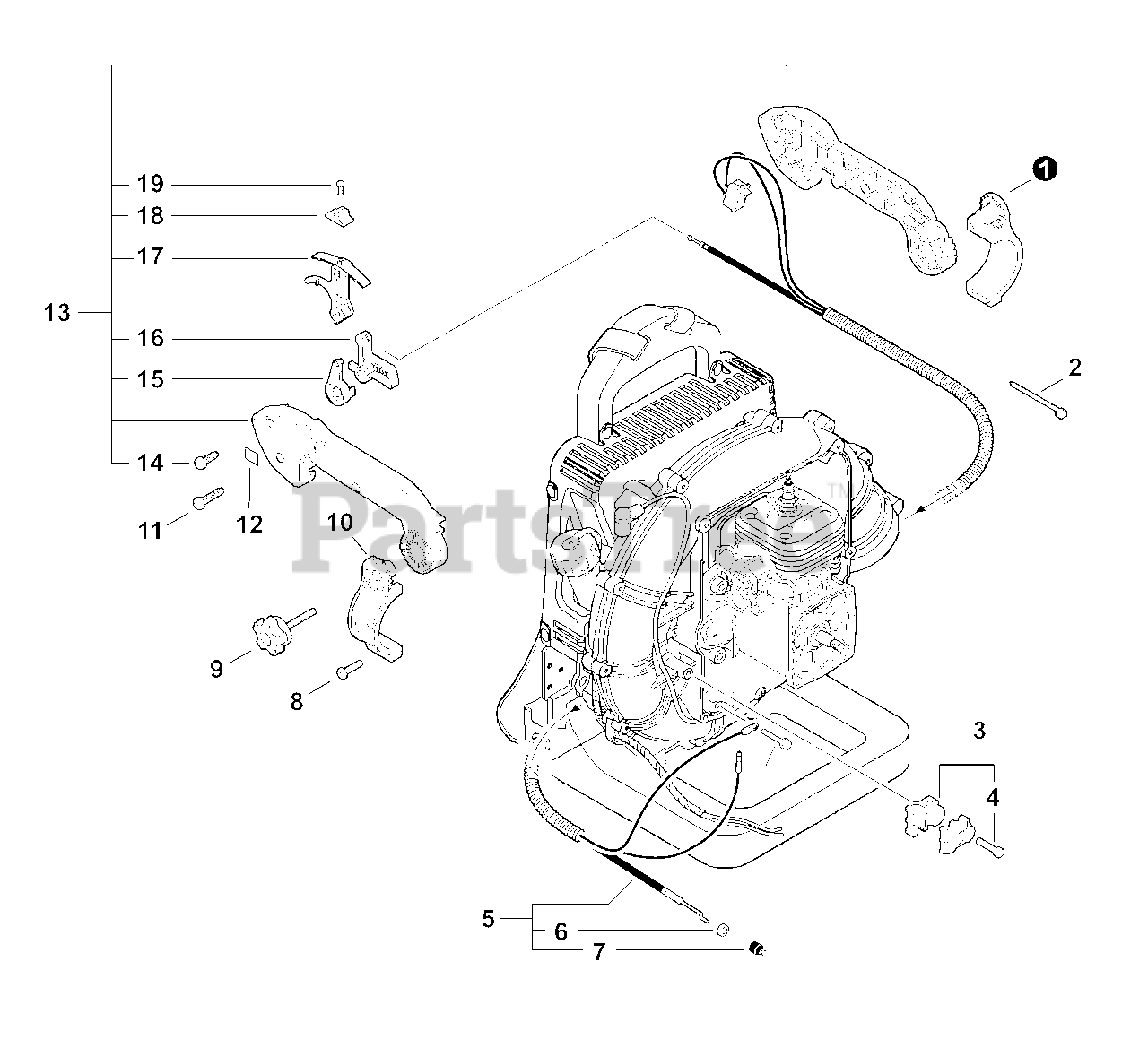

Tube Mount Throttle Control Parts Diagram

  • Title

1

Echo C405000240

BRACKET, HANDLE - RIGHT
(Superseded to C405000241)

$4.49

$

In Stock, Qty 20+

0

2

Echo 17812143230

TIE, CABLE - SMALL

$3.99

$

In Stock, only 3 left!

0

3

Echo P021015010

CABLE BRACKET KIT

Note: Includes Item 4

$18.99

$

Usually ships in 2-4 days

0

4

Echo 9114505025

SCREW - 5×25 -- TAPPING

$1.49

$

In Stock, Qty 6

0

5

Echo V043000250

CONTROL CABLE ASSY
(Superseded to V043000251)

Note: Includes Items 6-7

$46.99

$

In Stock, Qty 11

0

6

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

8

Echo 9114505020

SCREW - 5×20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

9

Echo 30581208260

THUMBSCREW
(Superseded to V299000630)

$5.49

$

In Stock, Qty 20+

0

10

Echo C405000230

BRACKET, HANDLE - LEFT
(Superseded to C405000231)

$5.49

$

In Stock, Qty 12

0

11

Echo 88995021560

SCREW - 5

$0.99

$

In Stock, only 2 left!

0

12

Echo X505000950

LABEL - IDLE

$3.99

$

In Stock, only 4 left!

0

13

Echo P021015220

CONTROL HANDLE ASSY
(Superseded to P021015221)

Note: Includes Items 14-19

$15.99

$

In Stock, only 2 left!

0

14

Echo 88995021060

SCREW - 5×20

$0.99

$

In Stock, Qty 20+

0

15

Echo C453000203

LEVER, THROTTLE

$1.99

$

In Stock, Qty 16

0

16

Echo 17801007561

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

17

Echo C453000211

LEVER, THROTTLE CONTROL

$1.99

$

In Stock, only 3 left!

0

18

Echo E151000000

KNOB, THROTTLE CONTROL
(Superseded to E151000001)

$1.99

$

In Stock, only 3 left!

0

19

Echo 9154503014

SCREW - 3×14

$0.99

$

Usually ships in 2-4 days

0
