PB-580 H - Echo Backpack Blower (SN: P44012001001 - P44012999999) Fuel System Parts Diagram

Backpack Blower. 58.2 cc 2-stroke engine, 22.9 lb dry weight, 517 CFM nozzle output, 216 mph max air speed, 70 dB(A) noise, 62 fl oz see-through tank.

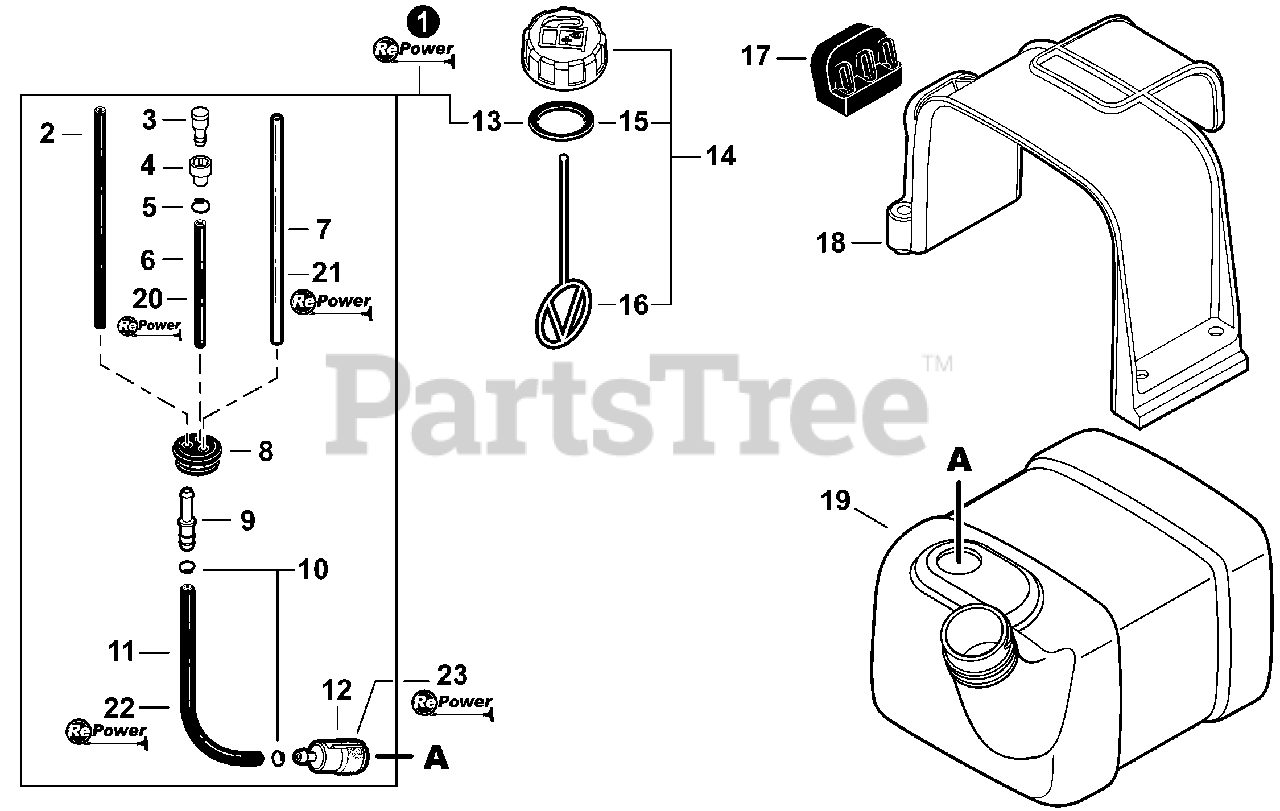

Fuel System Parts Diagram

  • Title

1

Echo 90158

FUEL SYSTEM KIT
(Superseded to 90158Y)

Note: Includes items 2-13 See RePower Maintenance Kits

$37.99

$

In Stock, Qty 7

0

2

Echo V471004770

PIPE, FUEL 3×5×205 BLACK
(Superseded to V471005720)

$8.49

$

In Stock, Qty 6

0

3

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

4

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

6

Echo V471004780

PIPE, FUEL 3×6×40 BLACK
(Superseded to V471004781)

Note: Repower Bulk Option 90015

$1.99

$

In Stock, Qty 12

0

7

Echo V471004760

PIPE 3×6×180 CLEAR

Note: Repower Bulk Option 90017

$

$

Not available

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

11

Echo V471000600

PIPE, FUEL 3×5×120 BLACK
(Superseded to V471000601)

Note: Repower Bulk Option 90014

$1.49

$

In Stock, Qty 9

0

12

Echo A369000440

FILTER, FUEL

Note: See RePower Maintenance Kits

$8.49

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 15

0

14

Echo P021040030

CAP ASSY, FUEL

Note: Includes items 15-16

$6.99

$

In Stock, Qty 20+

0

15

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 15

0

16

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 10

0

17

Echo V420004620

CUSHION

$5.99

$

Usually ships in 2-4 days

0

18

Echo A392000390

RETAINER, FUEL TANK

$18.99

$

In Stock, only 2 left!

0

19

Echo A350000870

TANK, FUEL
(Superseded to A350002530)

$27.99

$

Usually ships in 2-4 days

0

20

Echo 90015

BULK PIPE - 3×6 MM BLACK (4 PIECES×2 M)

Note: RePower Bulk Option

$48.99

$

In Stock, Qty 7

0

21

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: RePower Bulk Option

$69.99

$

In Stock, Qty 12

0

22

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

Note: RePower Bulk Option

$50.99

$

In Stock, Qty 20+

0

23

Echo 90156

TUNE-UP KIT - REPOWER
(Superseded to 90156Y)

Note: See RePower Maintenance Kits

$27.99

$

In Stock, Qty 20+

0
