PB-580 H - Echo Backpack Blower (SN: P44713001001 - P44713999999) Throttle Control - Hip Mount S/N: P44713001001 - P44713001109 Parts Diagram

Backpack Blower. 58.2 cc 2-stroke engine, 22.9 lb dry weight, 517 CFM nozzle output, 216 mph max air speed, 70 dB(A) noise, 62 fl oz see-through tank.

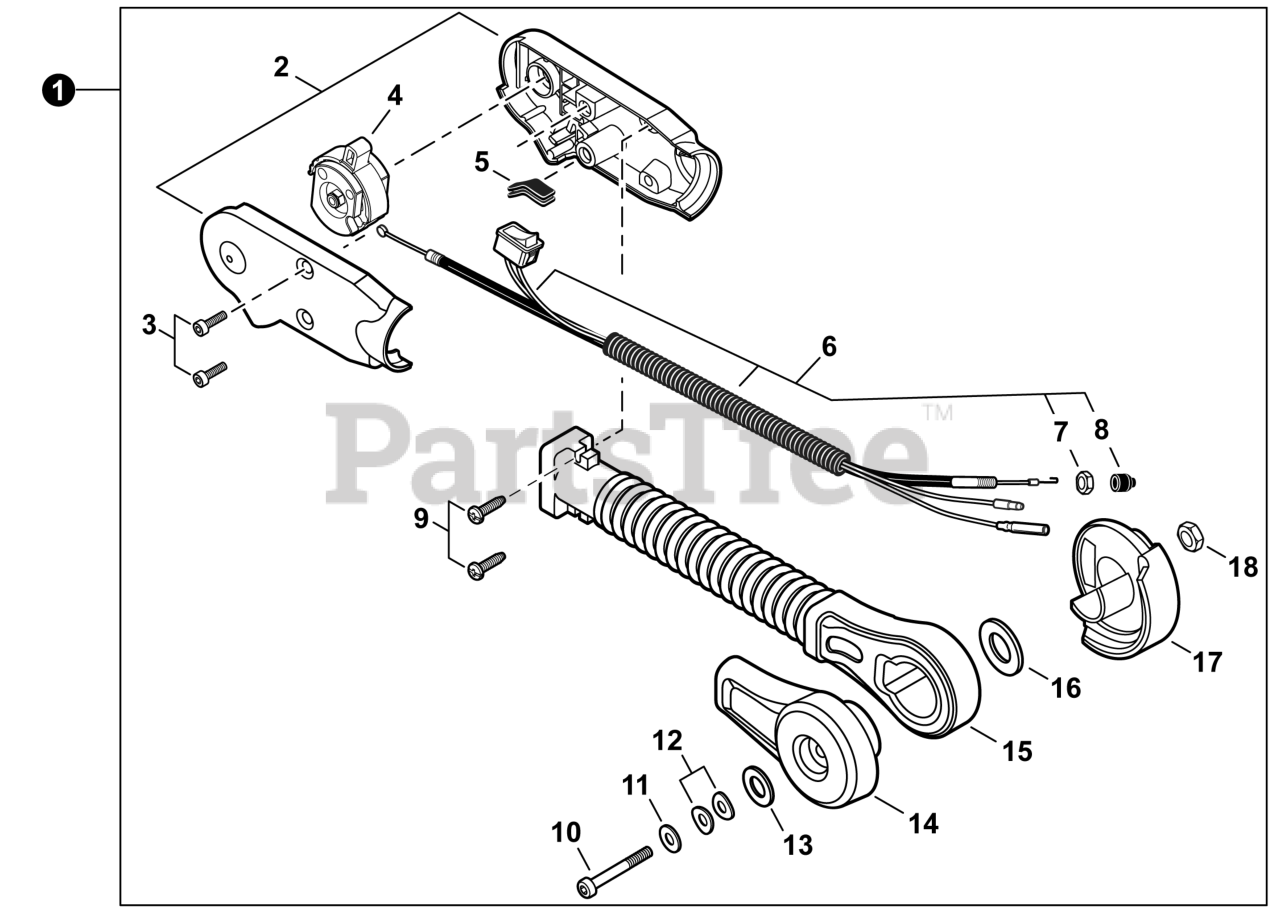

Throttle Control - Hip Mount S/N: P44713001001 - P44713001109 Parts Diagram

  • Title

1

Echo P021048480

THROTTLE CONTROL KIT - HIP MOUNT
(Superseded to P021048481)

Note: Includes items 2-18

$61.99

$

In Stock, only 1 left!

0

2

Echo P021014672

GRIP SET, THROTTLE
(Superseded to P021014673)

$6.49

$

In Stock, Qty 10

0

3

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo C470000162

CONTROL, THROTTLE

$10.99

$

In Stock, Qty 20+

0

5

Echo V144000181

GROMMET

$2.99

$

In Stock, only 2 left!

0

6

Echo V043001050

CABLE ASSY, CONTROL
(Superseded to P021052560)

Note: Includes items 7-8

$45.99

$

In Stock, only 1 left!

0

7

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

8

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

10

Echo V806000030

BOLT, TORX 6×75

$2.49

$

In Stock, only 3 left!

0

11

Echo V304000040

WASHER 6.6×20×1.6

$0.99

$

In Stock, Qty 20+

0

12

Echo 17816021060

WASHER, FRICTION 6.6×14.3

$0.99

$

In Stock, only 2 left!

0

13

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

14

Echo C472000050

BRACKET, ARM - OUTER
(Superseded to C472000051)

$3.49

$

In Stock, only 2 left!

0

15

Echo C456000050

ARM, THROTTLE CONTROL

$10.99

$

In Stock, Qty 20+

0

16

Echo V336000000

WASHER 45

$2.49

$

In Stock, Qty 20+

0

17

Echo C472000041

BRACKET, ARM - INNER

$3.49

$

Usually ships in 2-4 days

0

18

Echo 90056250006

NUT, LOCK M6

$1.99

$

In Stock, only 3 left!

0
