PB-580 T - Echo Backpack Blower (SN: P44311001001 - P44311999999) Harness, Backpack Frame, Debris Guard Parts Diagram

Backpack blower (PB-580T). Compact 379 x 478 x 459 mm, 9.3 kg dry. 58.2 cc 2-stroke, air-cooled engine with diaphragm carburetor. 62 fl oz fuel tank. Delivers 517 CFM at the nozzle and a peak air speed of 216 mph.

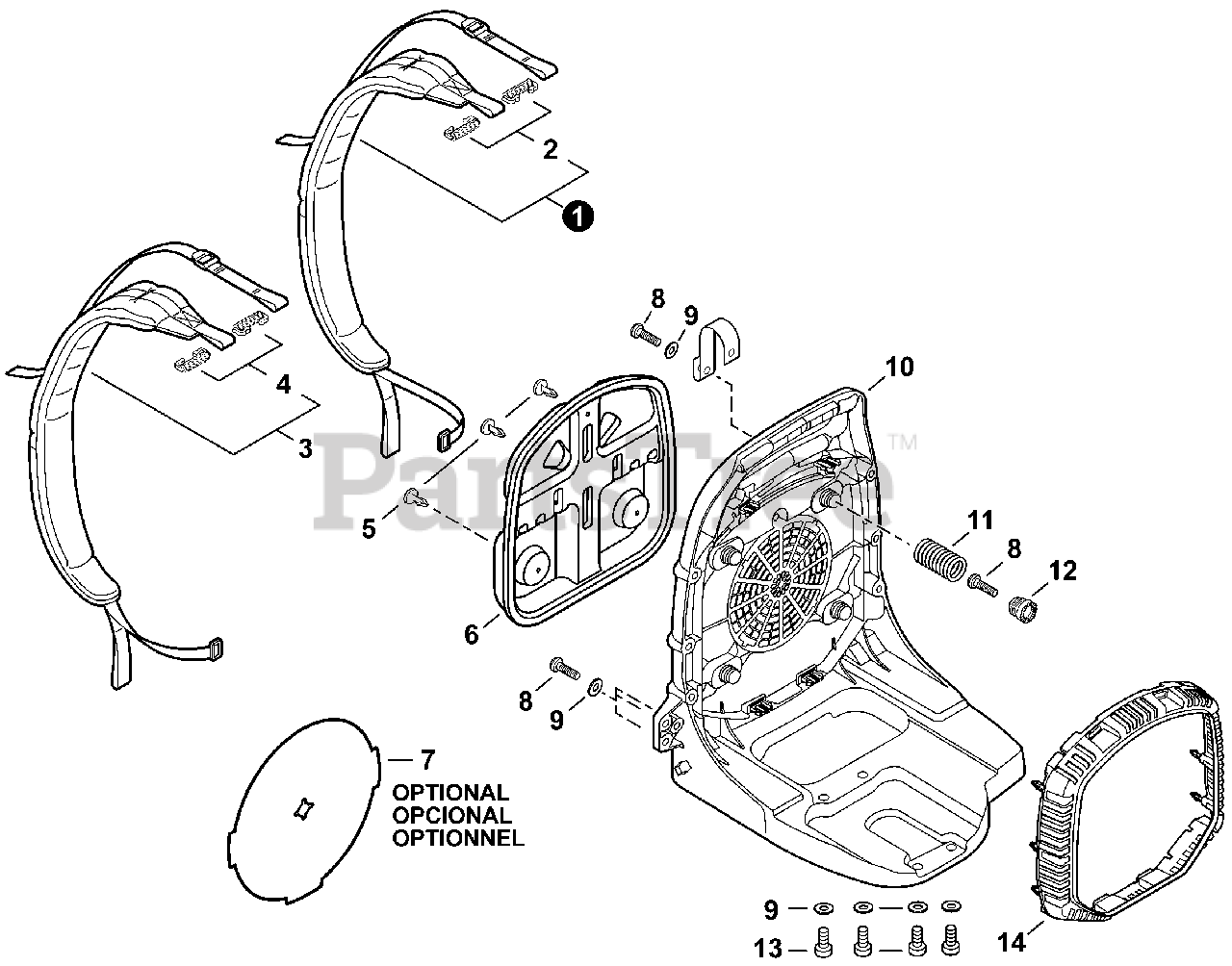

Harness, Backpack Frame, Debris Guard Parts Diagram

  • Title

1

Echo P021048260

HARNESS ASSY, RIGHT
(Superseded to P021048261)

Note: Includes item 2

$30.99

$

In Stock, Qty 20+

0

2

Echo V491000480

CLIP

$1.49

$

In Stock, Qty 20+

0

3

Echo P021048250

HARNESS ASSY, LEFT
(Superseded to P021048251)

Note: Includes item 4

$30.99

$

In Stock, Qty 20+

0

4

Echo V491000480

CLIP

$1.49

$

In Stock, Qty 20+

0

5

Echo V491000090

CLIP

$1.49

$

In Stock, Qty 20+

0

6

Echo C630000190

CUSHION, BACKPACK

$32.99

$

In Stock, Qty 5

0

7

Echo C635000000

INSERT, COLD WEATHER

Note: Optional

$7.99

$

In Stock, only 3 left!

0

8

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

9

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

10

Echo C620000480

FRAME, BACKPACK

$86.99

$

In Stock, only 4 left!

0

11

Echo V450000780

SPRING, COMPRESSION

$2.49

$

In Stock, Qty 20+

0

12

Echo V456000320

HOLDER, SPRING

$3.49

$

Usually ships in 2-4 days

0

13

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

14

Echo E104000250

GUARD, DEBRIS

$15.99

$

Usually ships in 2-4 days

0
