PB-580 T - Echo Backpack Blower (SN: P44813001001 - P44813999999) Throttle Control S/N: P44813001613-P44813002224 Parts Diagram

Backpack Blower

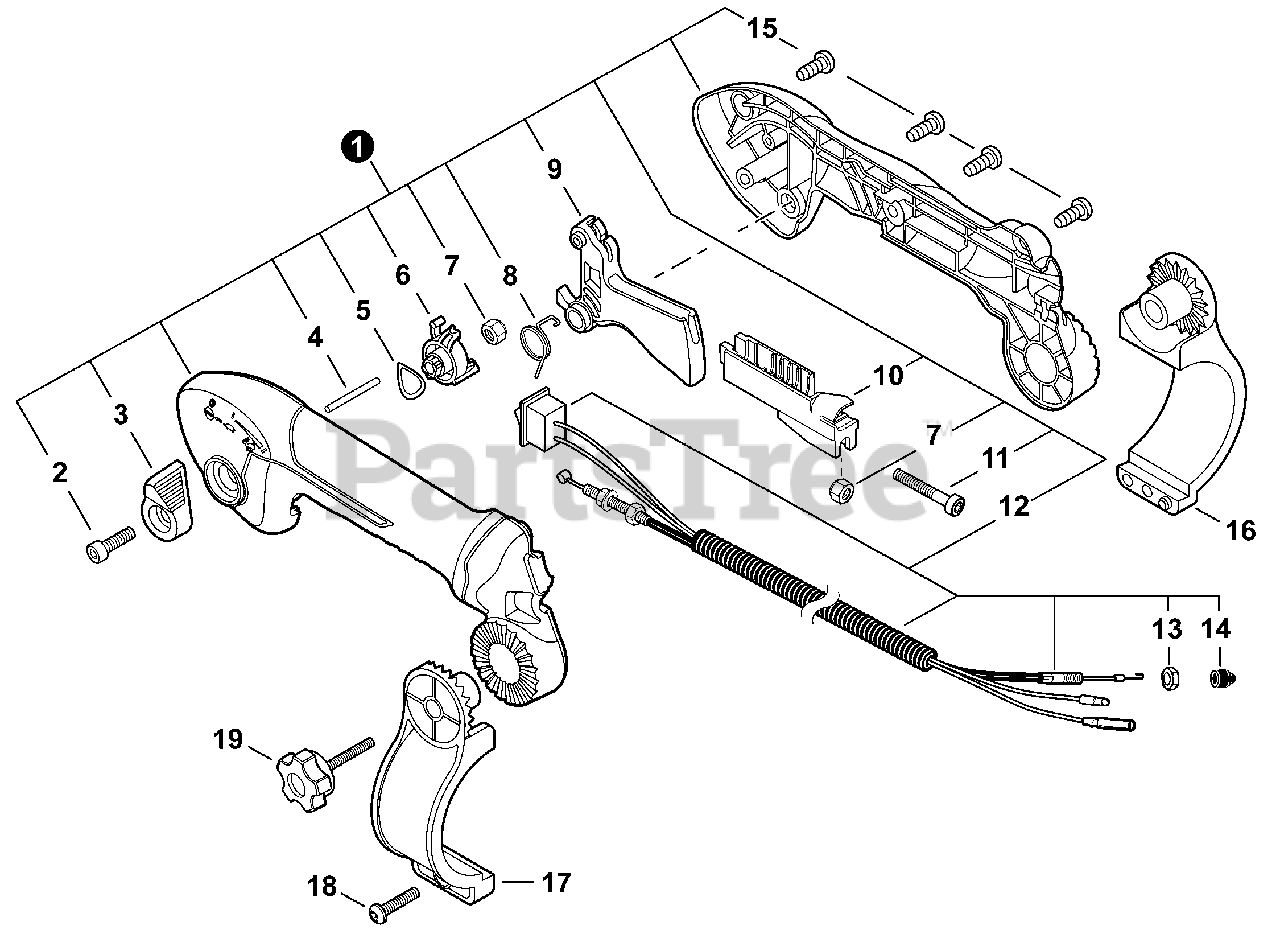

Throttle Control S/N: P44813001613-P44813002224 Parts Diagram

  • Title

1

Echo P021050610

THROTTLE CONTROL KIT - TUBE MOUNT
(Superseded to P021051890)

Note: Includes items 2-15

$44.99

$

In Stock, Qty 20+

0

2

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

3

Echo C453000560

LEVER, THROTTLE

$6.99

$

In Stock, Qty 5

0

4

Echo V621000040

PIN 3×32

$1.49

$

In Stock, Qty 10

0

5

Echo 42975201850

WASHER, WAVE 12

$1.99

$

In Stock, only 3 left!

0

6

Echo C453000580

CONTROL, THROTTLE

$5.49

$

In Stock, Qty 8

0

7

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

8

Echo V452001630

SPRING, TORSION

$1.49

$

In Stock, Qty 5

0

9

Echo C450000921

TRIGGER, THROTTLE

$1.49

$

In Stock, Qty 5

0

10

Echo C482000100

CONNECTOR, CABLE
(Superseded to C482000101)

$4.49

$

In Stock, only 2 left!

0

11

Echo V805000050

BOLT, TORX 5×30

$0.99

$

In Stock, Qty 20+

0

12

Echo V043001060

CABLE ASSY, CONTROL
(Superseded to 91202)

Note: Includes items 13-14

$44.99

$

In Stock, Qty 20+

0

13

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

14

Echo 17808208260

CAP, DUST

$3.49

$

In Stock, only 4 left!

0

15

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

16

Echo C405000241

BRACKET, HANDLE - RIGHT

$3.49

$

In Stock, Qty 20+

0

17

Echo C405000231

BRACKET, HANDLE - LEFT

$4.49

$

In Stock, Qty 20+

0

18

Echo V805000010

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 18

0

19

Echo 30581208260

KNOB, SCREW
(Superseded to V299000630)

$4.49

$

In Stock, Qty 20+

0
