PB-580 T - Echo Backpack Blower (SN: P55515001001 - P55515999999) Fuel System Parts Diagram

Backpack Blower

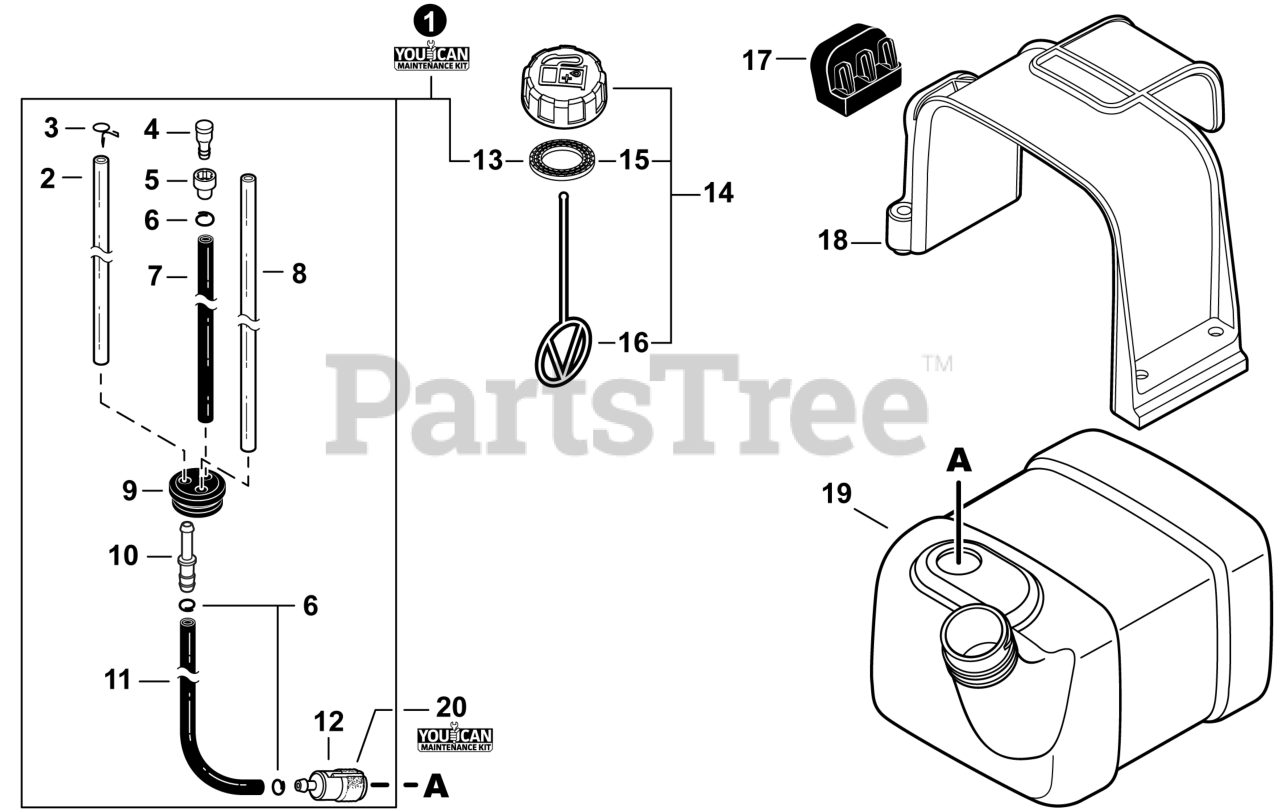

Fuel System Parts Diagram

  • Title

1

Echo 90158Y

FUEL SYSTEM KIT - YOUCAN

Note: Includes items 2-13

$37.99

$

In Stock, Qty 17

0

2

Echo V471005720

PIPE, FUEL 3.5x6x205 CLEAR

$8.49

$

In Stock, only 2 left!

0

3

Echo V490000510

CLIP, SPRING 5.2

$1.49

$

In Stock, Qty 14

0

4

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

5

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

6

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo V471004781

PIPE, FUEL 3x6x40 BLACK

$1.99

$

In Stock, only 3 left!

0

8

Echo V471004760

PIPE, FUEL 3x6x180 YELLOW

$6.49

$

In Stock, only 2 left!

0

9

Echo 13211555931

GROMMET, FUEL

$2.99

$

In Stock, Qty 20+

0

10

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo V471005820

PIPE, FUEL 3x6x120 BLACK

$1.99

$

In Stock, Qty 11

0

12

Echo A369000440

FILTER, FUEL

$8.49

$

In Stock, Qty 20+

0

13

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.99

$

In Stock, Qty 20+

0

14

Echo P021034481

CAP ASSY, FUEL

Note: Includes items 15-16

$7.99

$

Usually ships in 2-4 days

0

15

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.99

$

In Stock, Qty 20+

0

16

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, only 2 left!

0

17

Echo V420004620

CUSHION

$5.99

$

In Stock, only 1 left!

0

18

Echo A392000390

RETAINER, FUEL TANK

$18.99

$

In Stock, only 2 left!

0

19

Echo A350002531

TANK, FUEL

$27.99

$

Usually ships in 2-4 days

0

20

Echo 90156Y

TUNE-UP KIT - YOUCAN?

$27.99

$

In Stock, Qty 20+

0
