PB-580 T - Echo Backpack Blower (SN: P64013001001 - P64013999999) Fuel System Parts Diagram

Backpack Blower

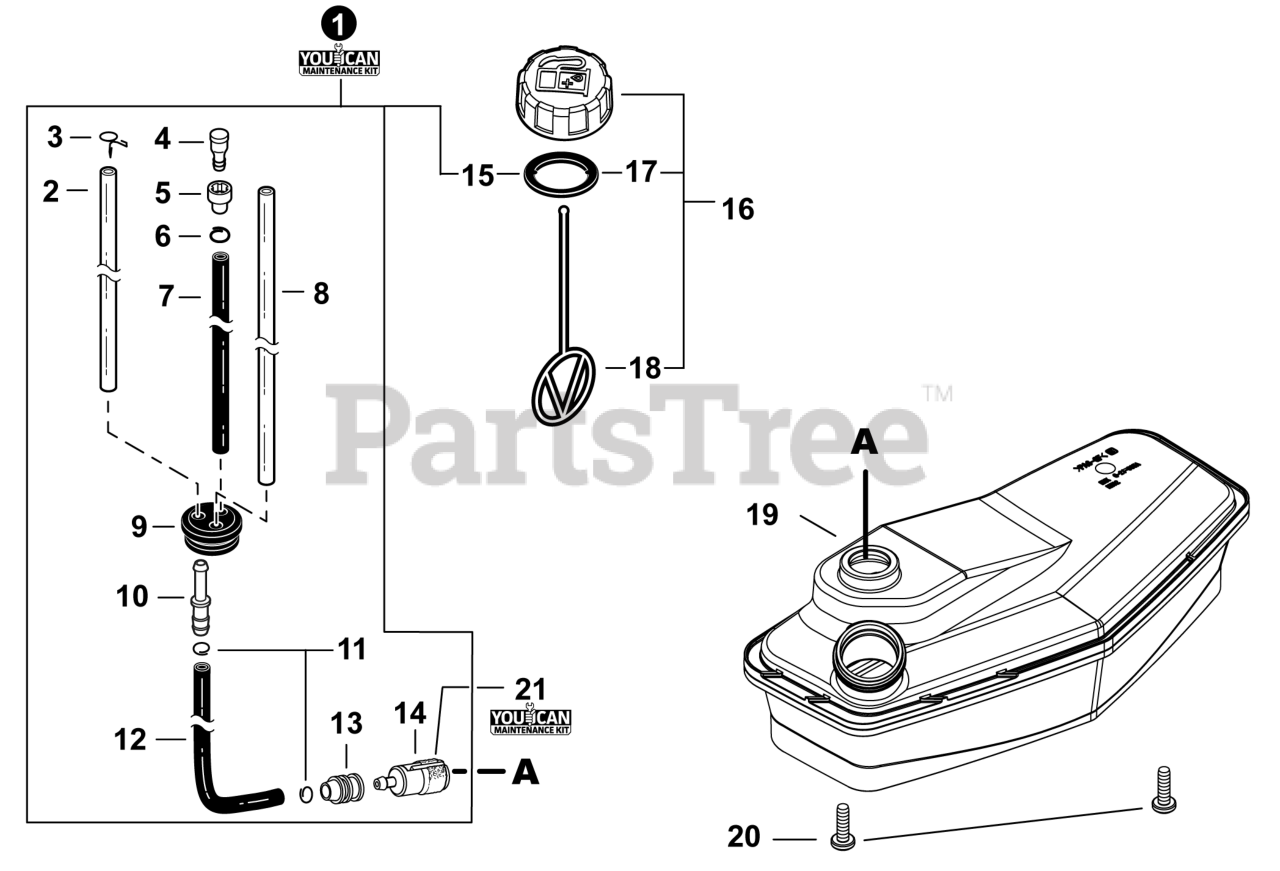

Fuel System Parts Diagram

  • Title

1

Echo 90263Y

FUEL SYSTEM KIT - YOUCAN™

Note: Includes Items 2-15

$

$

Currently unavailable

2

Echo V471005720

PIPE, FUEL 3.5x6x205 CLEAR

Note: +

$8.49

$

In Stock, Qty 5

0

3

Echo V490000510

CLIP, SPRING 5.2

Note: +

$1.49

$

In Stock, Qty 20+

0

4

Echo A356000031

VENT ASSY

Note: +

$9.49

$

In Stock, Qty 20+

0

5

Echo 13132840630

HOLDER, VENT

Note: +

$7.49

$

In Stock, Qty 20+

0

6

Echo V490001230

CLIP 6.5 MM

Note: +

$0.99

$

In Stock, Qty 20+

0

7

Echo V471004781

PIPE, FUEL 3x6x40 BLACK

Note: +

$1.99

$

In Stock, Qty 11

0

8

Echo V471006150

PIPE, FUEL 3x6x180 YELLOW

Note: +

$1.99

$

In Stock, Qty 11

0

9

Echo 13211555931

GROMMET, FUEL

Note: +

$2.99

$

In Stock, Qty 20+

0

10

Echo V186000520

CONNECTOR, PIPE 5x3.5

Note: +

$0.99

$

In Stock, Qty 20+

0

11

Echo V490001240

CLIP 6

Note: +

$0.99

$

In Stock, Qty 20+

0

12

Echo V470002470

PIPE, FUEL 3x5x165 BLACK

Note: +

$7.99

$

Usually ships in 2-4 days

0

13

Echo A413000190

BOOT

Note: +

$2.49

$

In Stock, only 3 left!

0

14

Echo A369000460

FILTER, FUEL

Note: +

$9.99

$

In Stock, Qty 20+

0

15

Echo V107000230

GASKET, FUEL CAP

Note: +

$

$

Currently unavailable

16

Echo P100014780

CAP ASSY, FUEL

Note: Includes Items 17-18

$6.49

$

Usually ships in 2-4 days

0

17

Echo V107000230

GASKET, FUEL CAP

Note: +

$

$

Currently unavailable

18

Echo A365000060

CONNECTOR, CAP L= 123

Note: +

$1.49

$

In Stock, Qty 20+

0

19

Echo A038000710

TANK ASSY, FUEL

$26.99

$

Usually ships in 2-4 days

0

20

Echo V806000000

BOLT, TORX 6x20

$1.99

$

In Stock, only 3 left!

0

21

Echo 90262Y

TUNE-UP KIT - YOUCAN™

$

$

Currently unavailable
