PB-60 HT - Echo Backpack Blower Engine, Short Block -- SB1020 Parts Diagram

Backpack blower with a 2-stroke, single-cylinder, air-cooled gasoline engine. 58.2 cc displacement (bore 46 mm, stroke 35 mm). Max speed 195 mph (~313 km/h). Generates up to 405 CFM airflow.

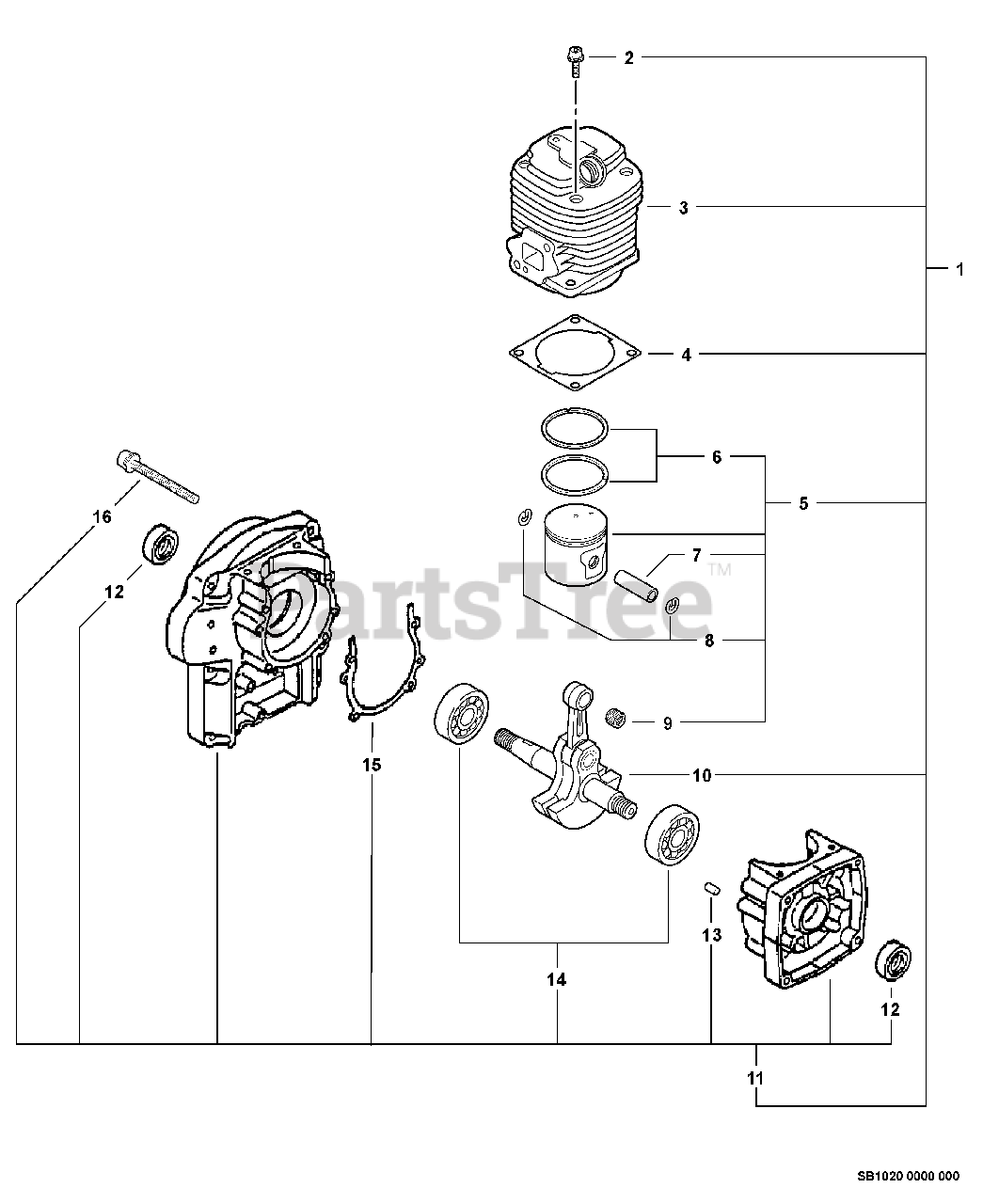

Engine, Short Block -- SB1020 Parts Diagram

  • Title

1

Echo SB1020

SHORT BLOCK PB-6000
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-16 RePower OPTION

$

$

Not available

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101108360

CYLINDER
(Superseded to Discontinued)

$

$

Not available

4

Echo 10101006211

GASKET, CYLINDER

Note: Included In GASKET KIT

$2.49

$

In Stock, only 2 left!

0

5

Echo 10000008360

PISTON KIT
(Superseded to Discontinued)

Note: Includes ITEMS 6-9

$

$

Not available

6

Echo 10001108360

RING, PISTON

$10.99

$

Usually ships in 2-4 days

0

7

Echo 10001306210

PIN, PISTON

$9.49

$

Usually ships in 2-4 days

0

8

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

9

Echo 10001212331

BEARING, NEEDLE 10

$13.99

$

In Stock, only 2 left!

0

10

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

Usually ships in 2-4 days

0

11

Echo 10020408261

CRANKCASE KIT

Note: Includes ITEMS 12-16

$279.99

$

Usually ships in 2-4 days

0

12

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 18

0

13

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

14

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, Qty 12

0

15

Echo 10024210721

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

Usually ships in 2-4 days

0

16

Echo 900162-05040

BOLT 5×40

$1.99

$

In Stock, only 1 left!

0
