PB-60 HT - Echo Backpack Blower Starter Parts Diagram

Backpack blower with a 2-stroke, single-cylinder, air-cooled gasoline engine. 58.2 cc displacement (bore 46 mm, stroke 35 mm). Max speed 195 mph (~313 km/h). Generates up to 405 CFM airflow.

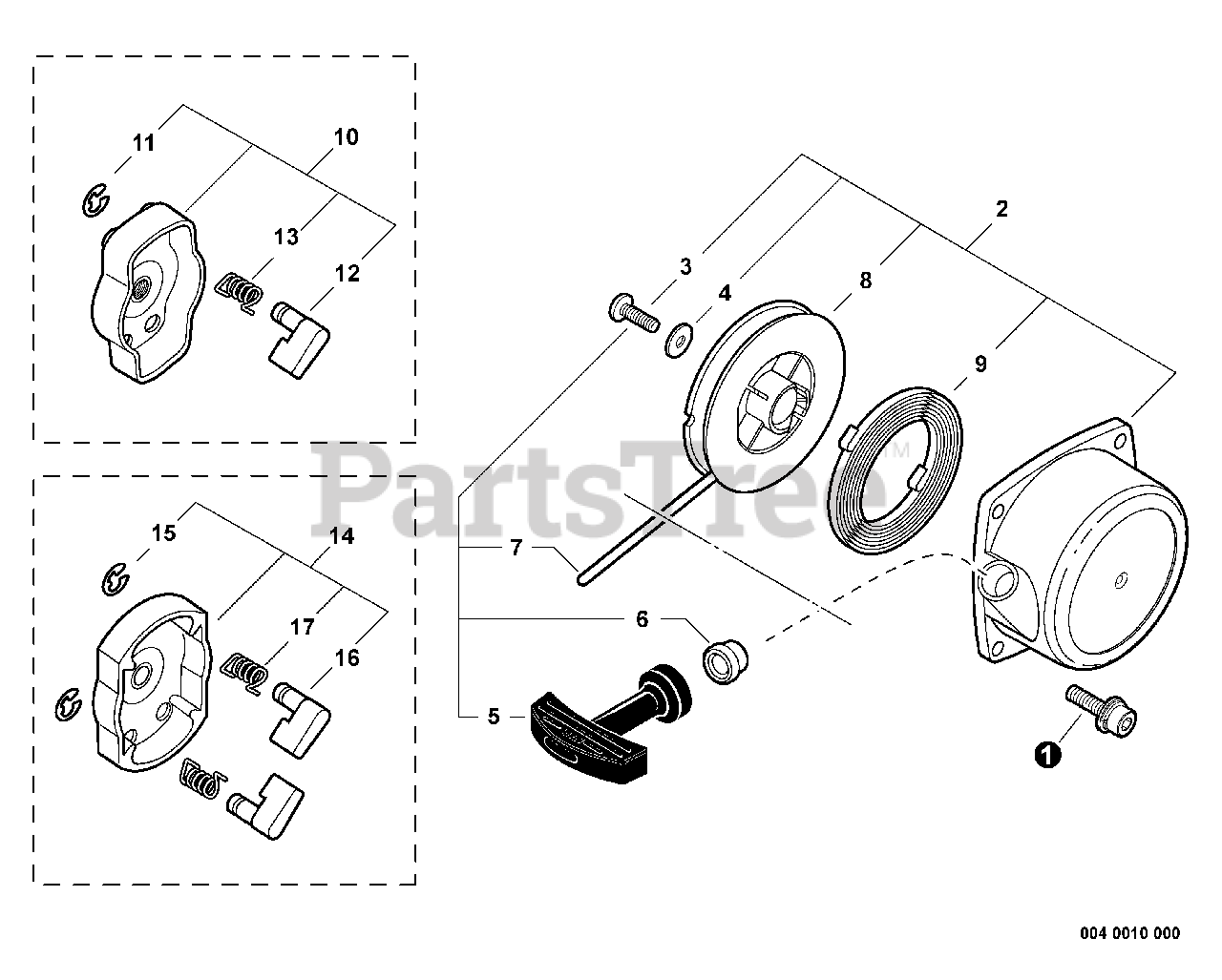

Starter Parts Diagram

  • Title

1

Echo 90016304018

BOLT 4×18

$1.49

$

In Stock, Qty 8

0

2

Echo 17720008260

STARTER ASSY
(Superseded to P021009450)

Note: Includes ITEMS 3-9

$66.99

$

In Stock, Qty 7

0

3

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

4

Echo 17721440630

WASHER
(Superseded to P022022280)

$1.49

$

In Stock, Qty 5

0

5

Echo 17722801110

GRIP, STARTER

$8.99

$

In Stock, only 3 left!

0

6

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

7

Echo 17722611120

ROPE, STARTER 3.8×1400

Note: RePower BULK OPTION: 99944440000

$6.99

$

Usually ships in 2-4 days

0

8

Echo 17721511120

REEL, ROPE

$22.99

$

In Stock, Qty 5

0

9

Echo 17722011120

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

10

Echo 17720206210

PAWL ASSY, STARTER
(Superseded to A052000470)

Note: Includes ITEMS 11-13

$7.49

$

In Stock, Qty 15

0

11

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

12

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

13

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, Qty 11

0

14

Echo A052000042

PAWL ASSY, STARTER

Note: Includes ITEMS 15-17 OPTIONAL

$12.99

$

In Stock, Qty 20+

0

15

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 16

0

16

Echo P022003120

PAWL, STARTER

$3.49

$

In Stock, Qty 20+

0

17

Echo P022003130

SPRING, RETURN

$3.99

$

In Stock, Qty 8

0
