PB-6000 - Echo Backpack Blower (Type 1) Ignition Parts Diagram

Dimensions: 320 x 460 x 440 mm (24.4 x 18.1 x 17.3 in) - Weight: 10 kg (22 lb) - Engine: 58.2 cc, 2-stroke, air-cooled, single-cylinder with Zama diaphragm carburetor and magneto CDI ignition.

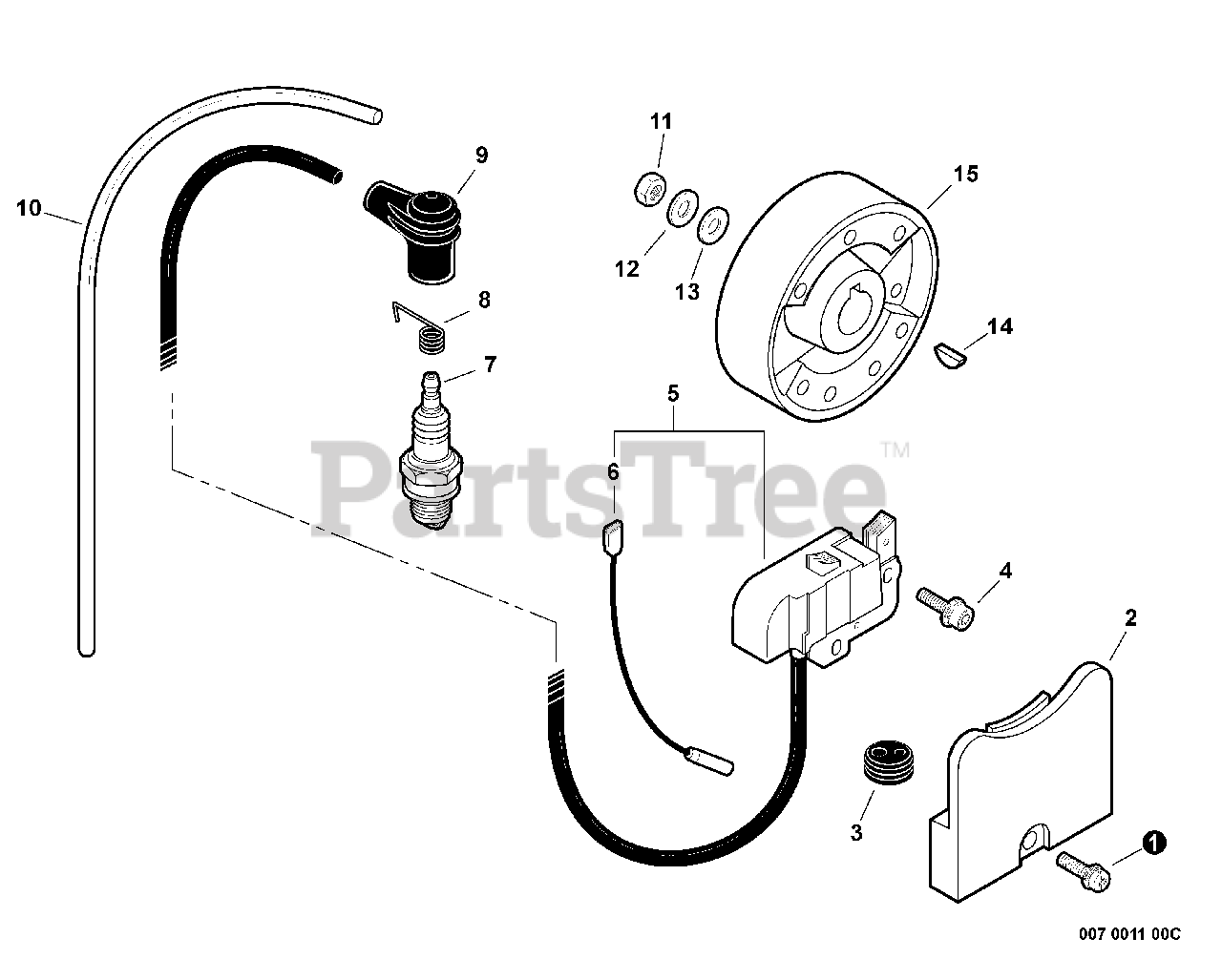

Ignition Parts Diagram

  • Title

1

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0

2

Echo 15912908261

COVER, DUST

$6.99

$

In Stock, only 2 left!

0

3

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

4

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0

5

Echo 15660109861

COIL, IGNITION
(Superseded to 15660108361)

Note: Includes ITEM 6

$120.99

$

In Stock, Qty 5

0

6

Echo 16202108260

LEAD - GROUND

$4.49

$

In Stock, only 1 left!

0

7

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

8

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

9

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

10

Echo 15611106160

TUBE, VINYL 6.3×8×380

$1.99

$

In Stock, Qty 5

0

11

Echo 900501-00010

NUT 10

$0.99

$

In Stock, only 2 left!

0

12

Echo 900605-00010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

13

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 15

0

14

Echo 90032303014

KEY, WOODRUFF 3×14

$1.99

$

In Stock, Qty 20+

0

15

Echo 15680006161

FLYWHEEL

$120.99

$

Usually ships in 2-4 days

0
