PB-601 - Echo Backpack Blower Backpack Frame, Harness Parts Diagram

Backpack blower with 320 mm x 460 mm x 440 mm housing, 10.8 kg. Powered by a 58.2 cc air-cooled 2-stroke engine (46 cc bore, 35 mm stroke). Uses Zama C1M diaphragm carburetor.

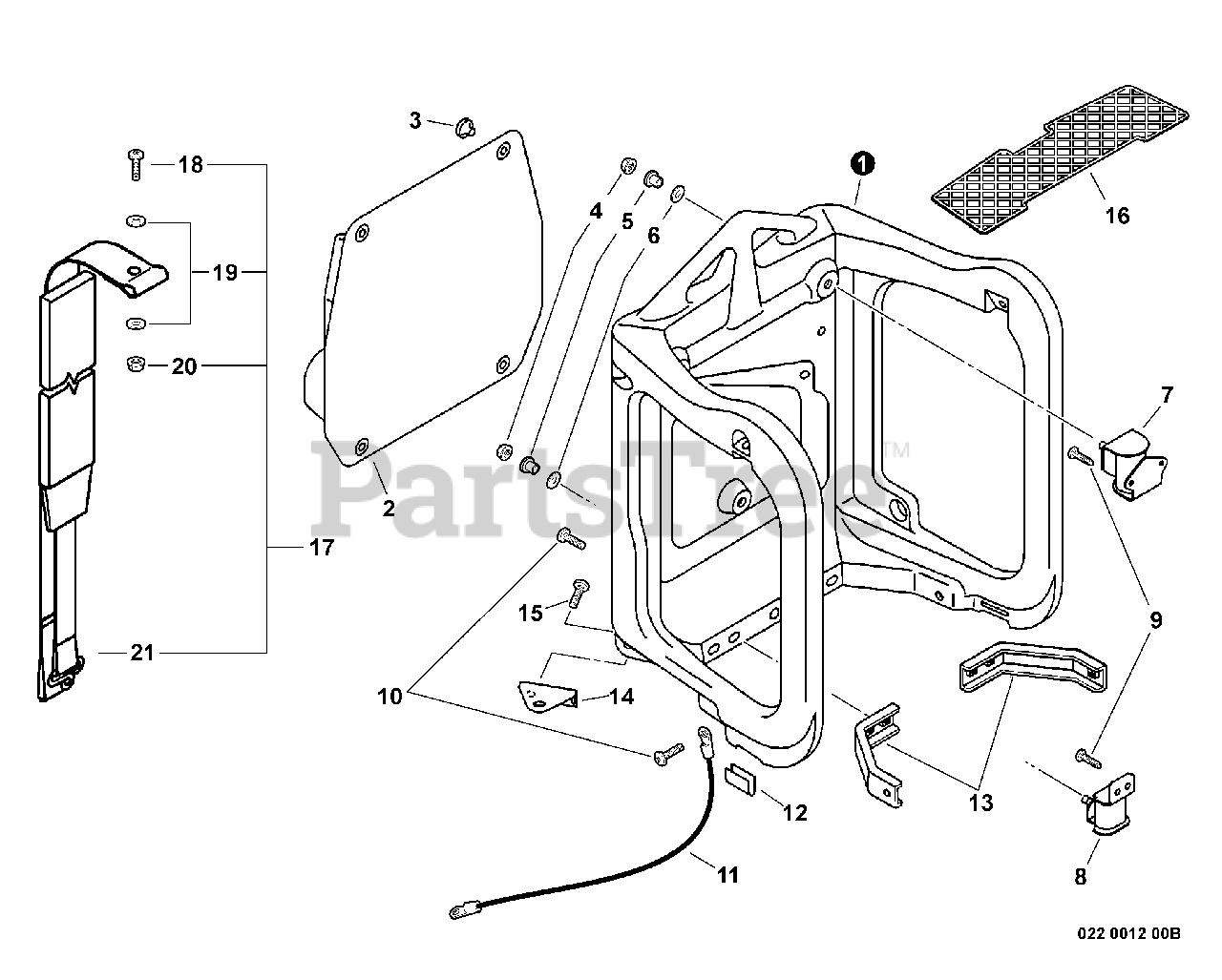

Backpack Frame, Harness Parts Diagram

  • Title

1

Echo 30001008360

FRAME, BACKPACK
(Superseded to 30001008361)

$76.99

$

Usually ships in 2-4 days

0

2

Echo 30010508260

CUSHION, BACKPACK
(Superseded to 30010508261)

$22.99

$

In Stock, Qty 11

0

3

Echo 30033306160

CLIP

$0.99

$

In Stock, Qty 20+

0

4

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

5

Echo 10491508260

COLLAR

$6.99

$

In Stock, Qty 12

0

6

Echo 13192502310

CUSHION

$1.99

$

In Stock, Qty 20+

0

7

Echo 10090508261

CUSHION

$15.99

$

In Stock, Qty 20+

0

8

Echo V401000001

CUSHION
(Superseded to V401000002)

$13.99

$

In Stock, Qty 10

0

9

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 9154005014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

11

Echo 16200721260

LEAD - GROUND

$1.99

$

In Stock, only 2 left!

0

12

Echo 30003208360

BUMPER
(Superseded to Discontinued)

$

$

Not available

13

Echo 30001208260

CONNECTOR, FRAME

$6.49

$

Usually ships in 2-4 days

0

14

Echo 30061408260

BRACKET, HANGER
(Superseded to Discontinued)

$

$

Not available

15

Echo 90020905020

SCREW 5×20
(Superseded to Discontinued)

$

$

Not available

16

Echo 30291421060

GUARD, DEBRIS
(Superseded to A127000080)

$4.99

$

Usually ships in 2-4 days

0

17

Echo P021001760

BACKPACK STRAP ASSY
(Superseded to C061000100)

Note: Includes ITEMS 18-21

$15.99

$

In Stock, Qty 20+

0

18

Echo 9154005014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

19

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 20+

0

20

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

21

Echo 30101608260

RING, HARNESS

$0.99

$

In Stock, Qty 9

0
