PB-601 - Echo Backpack Blower Carburetor -- C1M-K49B S/N: 506001 - 999999 Parts Diagram

Backpack blower with 320 mm x 460 mm x 440 mm housing, 10.8 kg. Powered by a 58.2 cc air-cooled 2-stroke engine (46 cc bore, 35 mm stroke). Uses Zama C1M diaphragm carburetor.

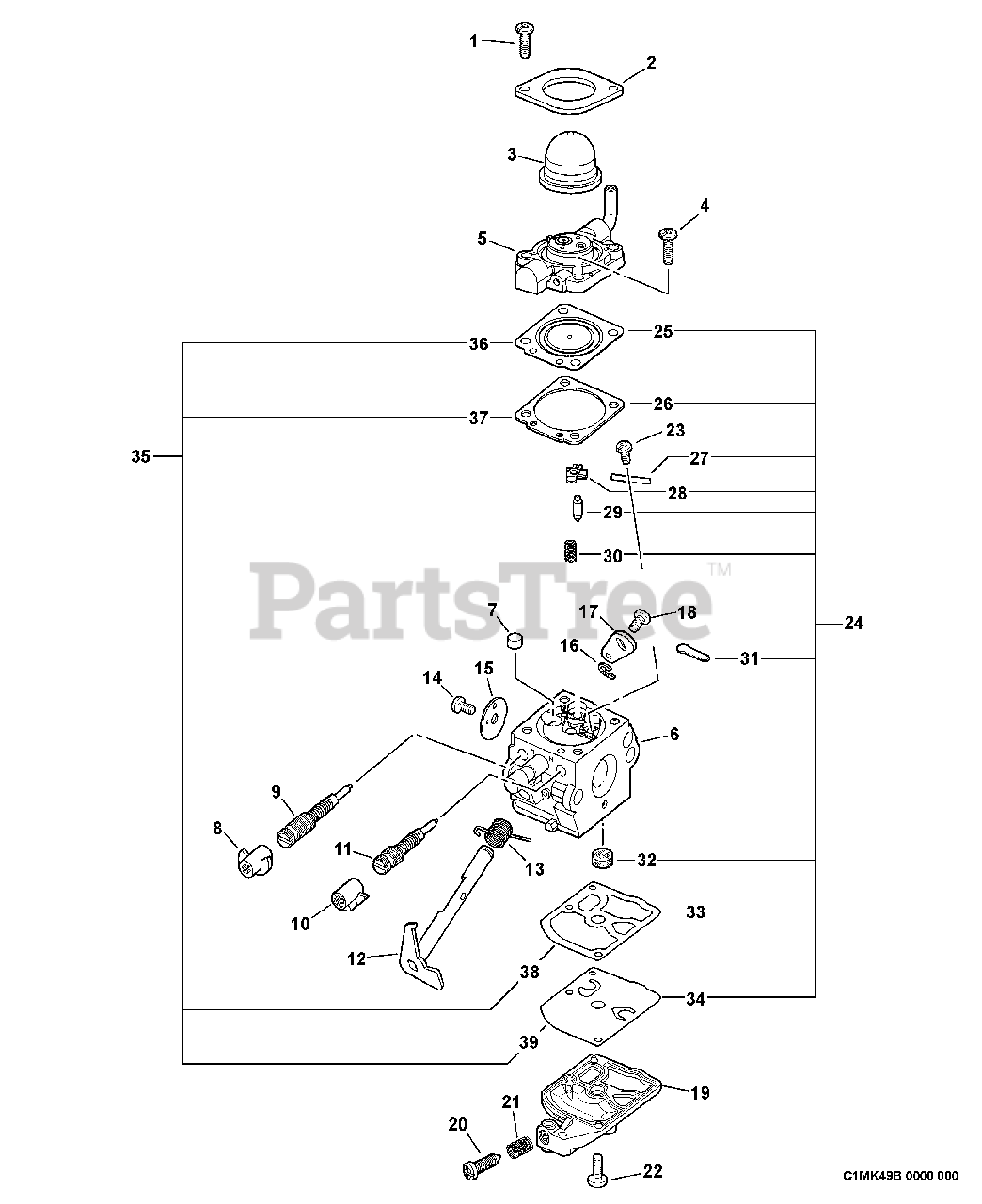

Carburetor -- C1M-K49B S/N: 506001 - 999999 Parts Diagram

  • Title

Echo 12520008663

CARBURETOR - C1M-K49B
(Superseded to 12520008664)

Note: Includes ITEMS 1-39

$89.99

$

In Stock, Qty 9

0

1

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308560

RETAINER, PURGE BULB

$2.49

$

In Stock, only 1 left!

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

5

Echo 12538308360

BODY ASSY, PURGE
(Superseded to Discontinued)

$

$

Not available

6

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

7

Echo 12537608660

NOZZLE, CHECK VALVE

$5.99

$

Usually ships in 2-4 days

0

8

Echo 12532909860

CAP, LIMITER - WHITE

$2.49

$

In Stock, Qty 11

0

9

Echo P005000460

NEEDLE, LOW SPEED

$5.99

$

Usually ships in 2-4 days

0

10

Echo 12532939030

CAP, LIMITER - RED

$1.99

$

In Stock, Qty 10

0

11

Echo P005000470

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

12

Echo 12531708360

SHAFT, THROTTLE
(Superseded to P005002040)

$7.49

$

Usually ships in 2-4 days

0

13

Echo 12531308360

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

14

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531613930

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

16

Echo 125327-13930

CLIP

$0.99

$

In Stock, only 3 left!

0

17

Echo 12535008360

LEVER, THROTTLE

$3.49

$

In Stock, only 3 left!

0

18

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

19

Echo 12532408360

COVER, PUMP

$8.99

$

Usually ships in 2-4 days

0

20

Echo 125344-08560

SCREW

$4.49

$

Usually ships in 2-4 days

0

21

Echo 125333-08560

SPRING, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

22

Echo 12531013930

SCREW

$0.99

$

Usually ships in 2-4 days

0

23

Echo 12533913930

SCREW

$1.99

$

Usually ships in 2-4 days

0

24

Echo 12530008360

REPAIR KIT

Note: Includes ITEMS 25-34

$20.99

$

In Stock, only 3 left!

0

25

DIAPHRAGM, METERING

$

$

Not available

26

GASKET, DIAPHRAGM

$

$

Not available

27

PIN, METERING LEVER

$

$

Not available

28

LEVER, METERING

$

$

Not available

29

VALVE, INLET NEEDLE

$

$

Not available

30

SPRING, METERING LEVER

$

$

Not available

31

PLUG, WELCH

$

$

Not available

32

STRAINER

$

$

Not available

33

GASKET, PUMP

$

$

Not available

34

DIAPHRAGM, PUMP

$

$

Not available

35

Echo 12530308360

GASKET / DIAPHRAGM KIT

Note: Includes ITEMS 36-39

$11.99

$

In Stock, only 3 left!

0

36

DIAPHRAGM, METERING

$

$

Not available

37

GASKET, DIAPHRAGM

$

$

Not available

38

GASKET, PUMP

$

$

Not available

39

DIAPHRAGM, PUMP

$

$

Not available
