PB-603 - Echo Backpack Blower (SN: 04001001 - 04999999) Fan Case, Blower Fan, Engine Cover Parts Diagram

PB-603 Echo Backpack Blower: 58.2 cc, air-cooled, 2-stroke, single-cylinder engine (bore 46 mm, stroke 35 mm). Compact 320 mm x 460 mm x 480 mm with side handle, dry weight 8.7 kg. Equipped with C1M-K49C carburetor, fuel tank, blower fan, and air-filter assembly. Operates at 72 dB(A).

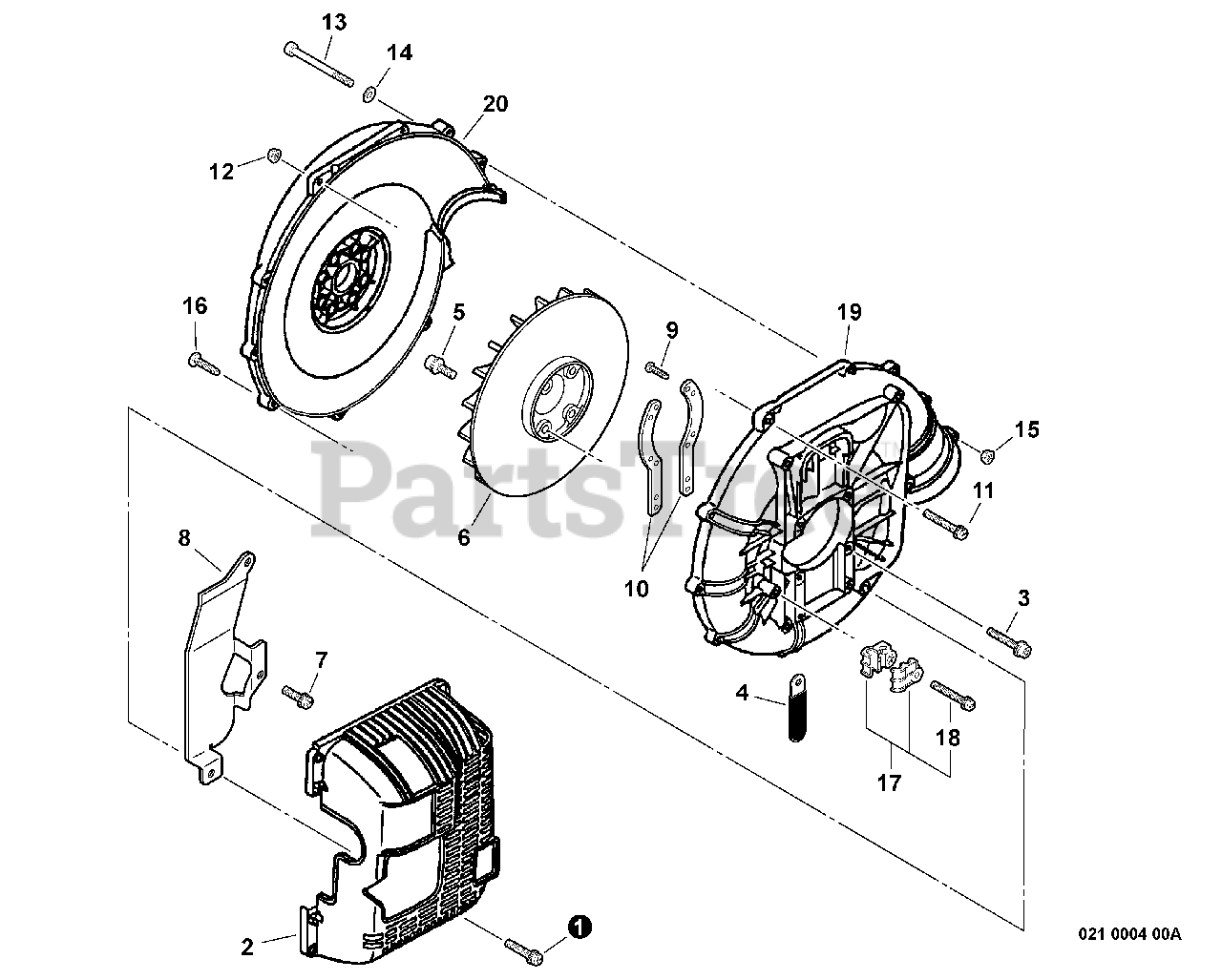

Fan Case, Blower Fan, Engine Cover Parts Diagram

  • Title

1

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0

2

Echo 10401208260

COVER, ENGINE

$42.99

$

Usually ships in 2-4 days

0

3

Echo 90016205032

SCREW 5×32

$1.99

$

Usually ships in 2-4 days

0

4

Echo 15911621231

CLAMP

$1.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo 20000508261

FAN

$117.99

$

Usually ships in 2-4 days

0

7

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

8

Echo 10027008260

INSULATOR
(Superseded to 10027008261)

$15.99

$

In Stock, only 3 left!

0

9

Echo 90024603012

SCREW TAPPING 3×12

$0.99

$

Usually ships in 2-4 days

0

10

Echo 10491308360

BRACKET, ENGINE

$36.99

$

Usually ships in 2-4 days

0

11

Echo 90023805040

SCREW 5×40

$0.99

$

In Stock, only 1 left!

0

12

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

13

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

16

Echo 90025305030

SCREW 5×30

$0.99

$

In Stock, only 1 left!

0

17

Echo 17810108260

CABLE HOLDER KIT

Note: Includes ITEM 18

$14.99

$

In Stock, only 1 left!

0

18

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

19

Echo 20010508260

COVER, FAN - OUTER

$98.99

$

In Stock, only 1 left!

0

20

Echo 20011108265

COVER, FAN - INNER
(Superseded to 20011108266)

$39.99

$

Usually ships in 2-4 days

0
