PB-603 - Echo Backpack Blower (SN: 04001001 - 04999999) Fuel System Parts Diagram

PB-603 Echo Backpack Blower: 58.2 cc, air-cooled, 2-stroke, single-cylinder engine (bore 46 mm, stroke 35 mm). Compact 320 mm x 460 mm x 480 mm with side handle, dry weight 8.7 kg. Equipped with C1M-K49C carburetor, fuel tank, blower fan, and air-filter assembly. Operates at 72 dB(A).

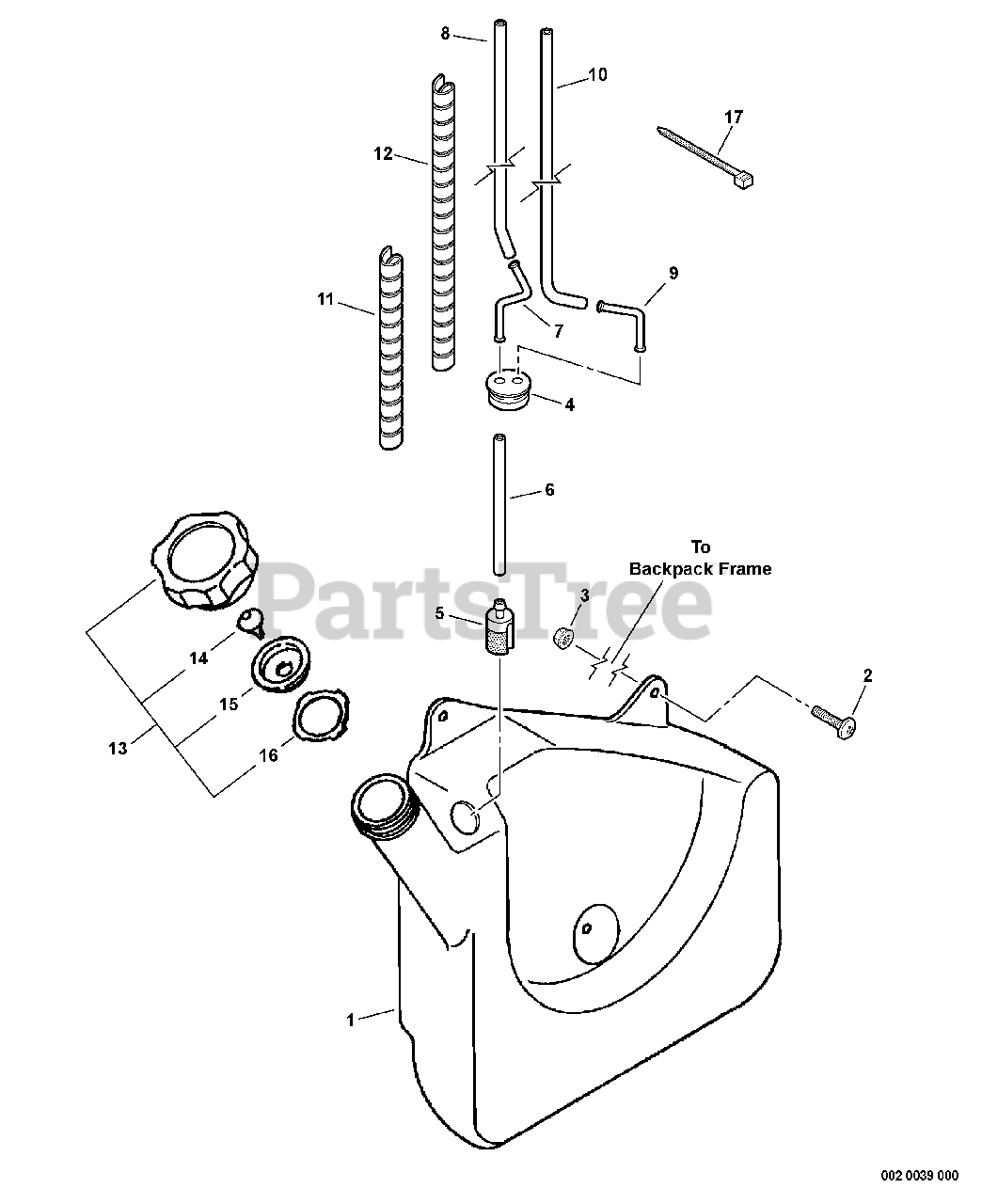

Fuel System Parts Diagram

  • Title

1

Echo 13101008261

TANK, FUEL
(Superseded to 13101008262)

$50.99

$

In Stock, only 2 left!

0

2

Echo 90020905020

SCREW 5×20
(Superseded to Discontinued)

$

$

Not available

3

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 19

0

4

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$3.49

$

In Stock, Qty 20+

0

5

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

6

Echo V471000770

PIPE, FUEL 3×6×280 MM
(Superseded to V471000771)

Note: RePower BULK OPTION: 90015

$4.49

$

In Stock, only 3 left!

0

7

Echo 13201108260

CONNECTOR, PIPE

$4.49

$

In Stock, only 4 left!

0

8

Echo 13201008260

PIPE, FUEL

Note: RePower BULK OPTION: 90016

$20.99

$

In Stock, only 2 left!

0

9

Echo 13202108260

CONNECTOR, PIPE

$4.99

$

In Stock, Qty 20+

0

10

Echo 13201608260

PIPE, FUEL

Note: RePower BULK OPTION: 90018

$5.49

$

In Stock, Qty 6

0

11

Echo 17812703460

PIPE

$2.49

$

In Stock, only 3 left!

0

12

Echo 13201508260

WRAP, SPIRAL

$

$

Not available

13

Echo 13100406610

CAP ASSY
(Superseded to 13160009860)

Note: Includes ITEMS 14-16

$13.99

$

In Stock, only 2 left!

0

14

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 20+

0

15

Echo 13101521330

HOLDER, CHECK VALVE
(Superseded to A358000000)

$

$

Not available

16

Echo 13101621060

GASKET, FUEL CAP
(Superseded to 13101621061)

$

$

Not available

17

Echo V495000300

TIE, CABLE
(Superseded to 17812143230)

$3.99

$

In Stock, only 3 left!

0
