PB-610 - Echo Backpack Blower (SN: 02001001 - 02999999) Exhaust Parts Diagram

Backpack Blower: 2-stroke, 46 cc air-cooled engine (58.2 mm bore), 3.5-inch fan. Compact size 325 x 520 x 435 mm (12.8 x 20.5 x 17.1 in) and dry weight 10.9 kg (24.1 lb).

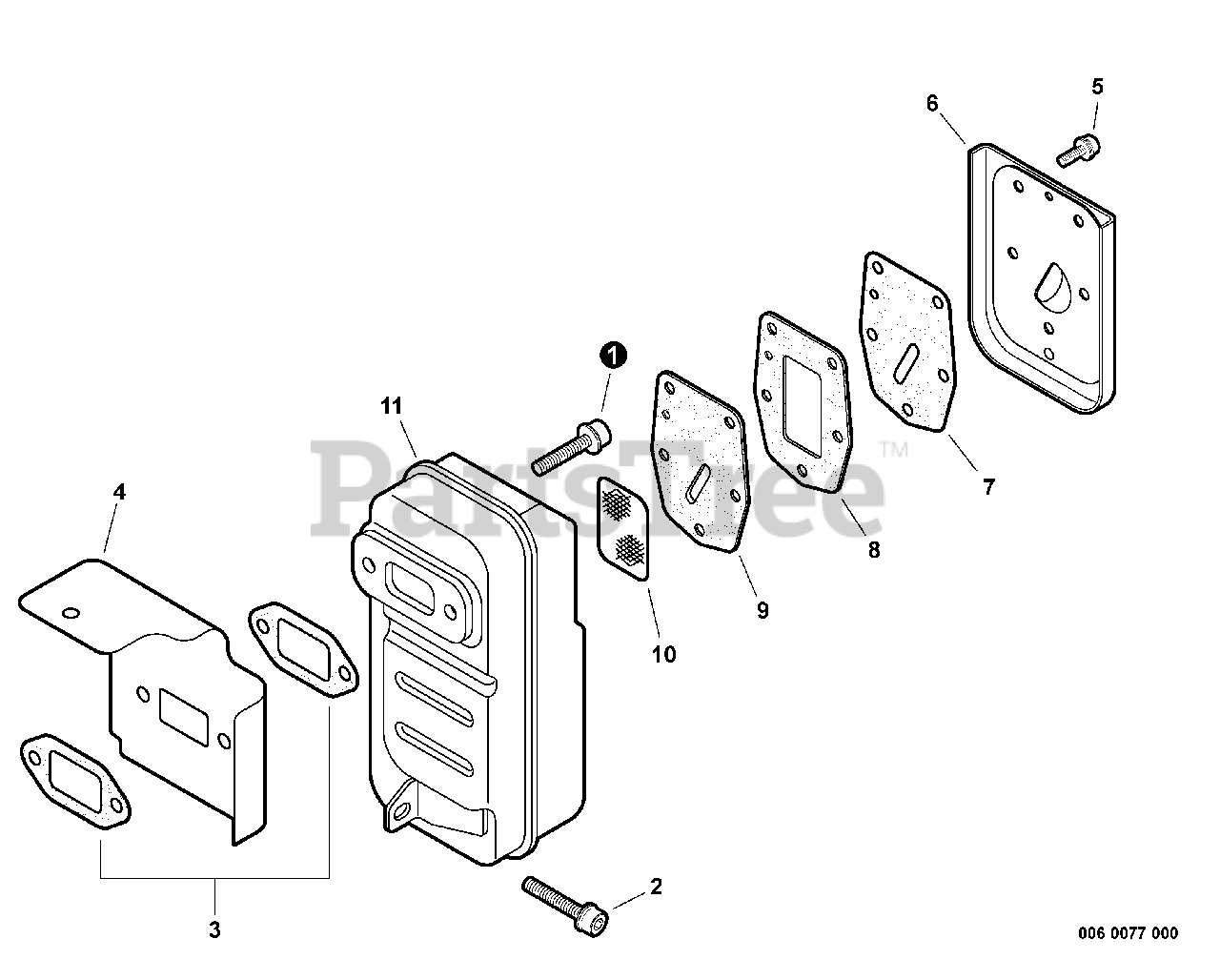

Exhaust Parts Diagram

  • Title

1

Echo 90010506020

BOLT 6×20

$1.49

$

In Stock, Qty 20+

0

2

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo 14551006210

GASKET, EXHAUST
(Superseded to 14551006211)

Note: Included In GASKET KIT

$3.99

$

Usually ships in 2-4 days

0

4

Echo A160000450

COVER, ENGINE - EXHAUST
(Superseded to A160000452)

$20.99

$

In Stock, only 1 left!

0

5

Echo 90023804014

SCREW 4×14

$0.99

$

In Stock, Qty 14

0

6

Echo A313000270

GUIDE, EXHAUST

$19.99

$

Usually ships in 2-4 days

0

7

Echo V104000231

GASKET, EXHAUST

Note: Included In GASKET KIT

$3.49

$

Usually ships in 2-4 days

0

8

Echo V104000300

GASKET, EXHAUST
(Superseded to V104000301)

Note: Included In GASKET KIT

$4.49

$

In Stock, only 4 left!

0

9

Echo V104000290

GASKET, EXHAUST
(Superseded to V104000291)

Note: Included In GASKET KIT

$4.49

$

Usually ships in 2-4 days

0

10

Echo 14586206720

SCREEN, SPARK ARRESTER

$5.49

$

In Stock, Qty 15

0

11

Echo A300000202

MUFFLER
(Superseded to A300000203)

$

$

Not available
