PB-610 - Echo Backpack Blower (SN: P08311001001 - P08311999999) Carburetor -- C1M-K76 Parts Diagram

Backpack Blower

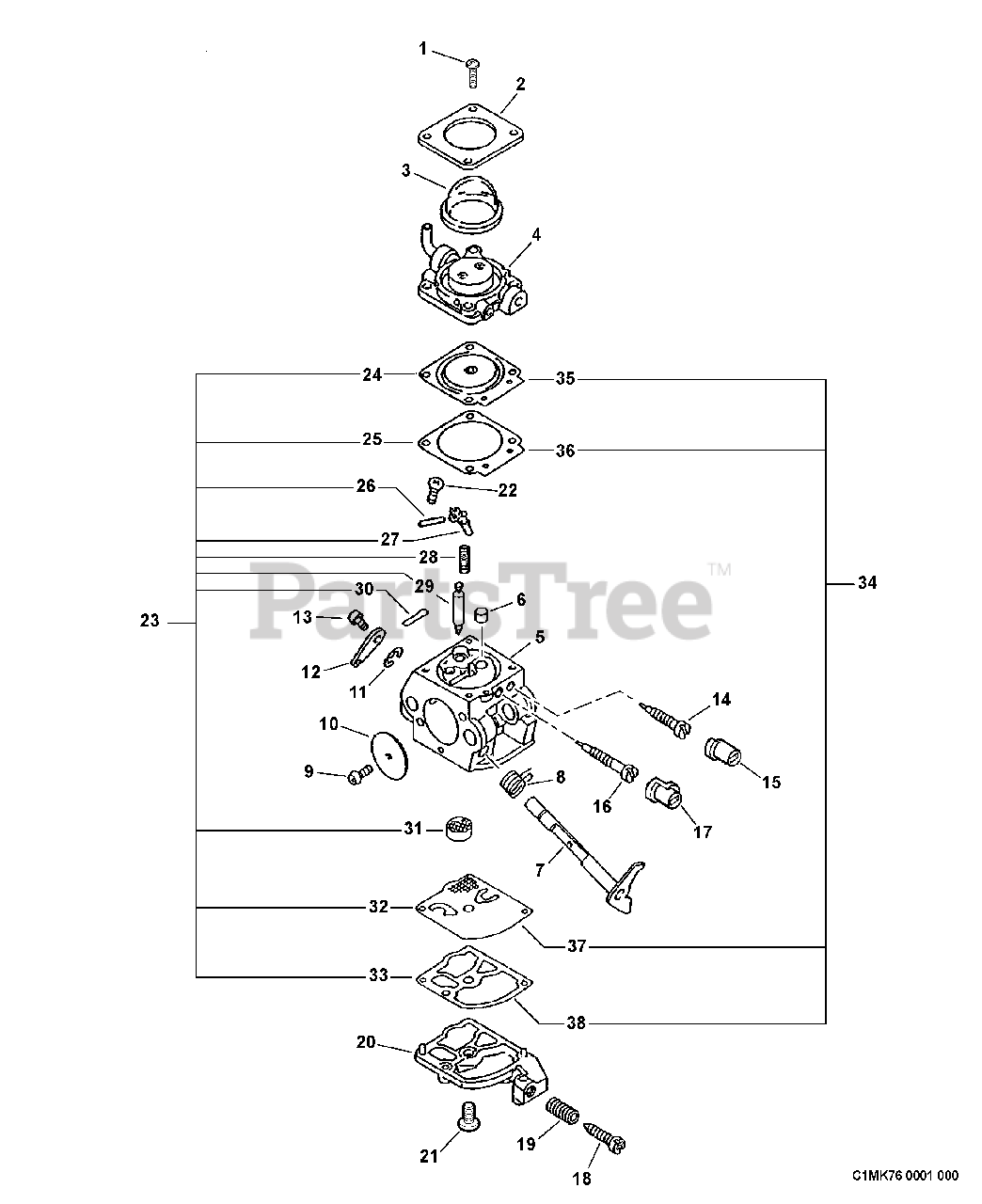

Carburetor -- C1M-K76 Parts Diagram

  • Title

Echo A021000770

CARBURETOR - C1M-K76
(Superseded to A021000771)

Note: Includes ITEMS 1-38

$87.99

$

In Stock, only 2 left!

0

1

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

2

Echo P005000620

RETAINER, PURGE BULB

$2.99

$

In Stock, Qty 13

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

4

Echo P005000610

BODY ASSY, PURGE

$24.99

$

In Stock, only 2 left!

0

5

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

6

Echo 12537608660

NOZZLE, CHECK VALVE

$5.99

$

Usually ships in 2-4 days

0

7

Echo 12531708360

SHAFT, THROTTLE
(Superseded to P005002040)

$7.49

$

Usually ships in 2-4 days

0

8

Echo 12531308360

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

9

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

10

Echo 12531613930

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

11

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

12

Echo 12535008360

LEVER, THROTTLE

$3.49

$

In Stock, only 3 left!

0

13

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

14

Echo P005001590

NEEDLE, HIGH SPEED

$6.99

$

Usually ships in 2-4 days

0

15

Echo 12532939030

CAP, LIMITER - RED

$1.99

$

In Stock, Qty 11

0

16

Echo P005001600

NEEDLE, LOW SPEED

$6.99

$

Usually ships in 2-4 days

0

17

Echo 12532909860

CAP, LIMITER - WHITE

$2.49

$

In Stock, Qty 12

0

18

Echo 125344-08560

SCREW

$4.49

$

Usually ships in 2-4 days

0

19

Echo 125333-08560

SPRING, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

20

Echo 12532408360

COVER, PUMP

$8.99

$

Usually ships in 2-4 days

0

21

Echo 12531013930

SCREW

$0.99

$

Usually ships in 2-4 days

0

22

Echo 12533913930

SCREW

$1.99

$

In Stock, only 4 left!

0

23

Echo 12530008360

REPAIR KIT

Note: Includes ITEMS 24-33

$20.99

$

In Stock, only 2 left!

0

24

DIAPHRAGM, METERING

$

$

Not available

25

GASKET, METERING

$

$

Not available

26

PIN, METERING LEVER

$

$

Not available

27

LEVER, METERING

$

$

Not available

28

SPRING, METERING LEVER

$

$

Not available

29

VALVE, INLET NEEDLE

$

$

Not available

30

PLUG, WELCH

$

$

Not available

31

STRAINER

$

$

Not available

32

DIAPHRAGM, PUMP

$

$

Not available

33

GASKET, PUMP

$

$

Not available

34

Echo 12530308360

GASKET / DIAPHRAGM KIT

Note: Includes ITEMS 35-38

$11.99

$

In Stock, only 2 left!

0

35

DIAPHRAGM, METERING

$

$

Not available

36

GASKET, METERING

$

$

Not available

37

DIAPHRAGM, PUMP

$

$

Not available

38

GASKET, PUMP

$

$

Not available
