PB-611 - Echo Backpack Blower (SN: 02001001 - 02999999) Engine, Short Block -- SB1054 Parts Diagram

Backpack Blower

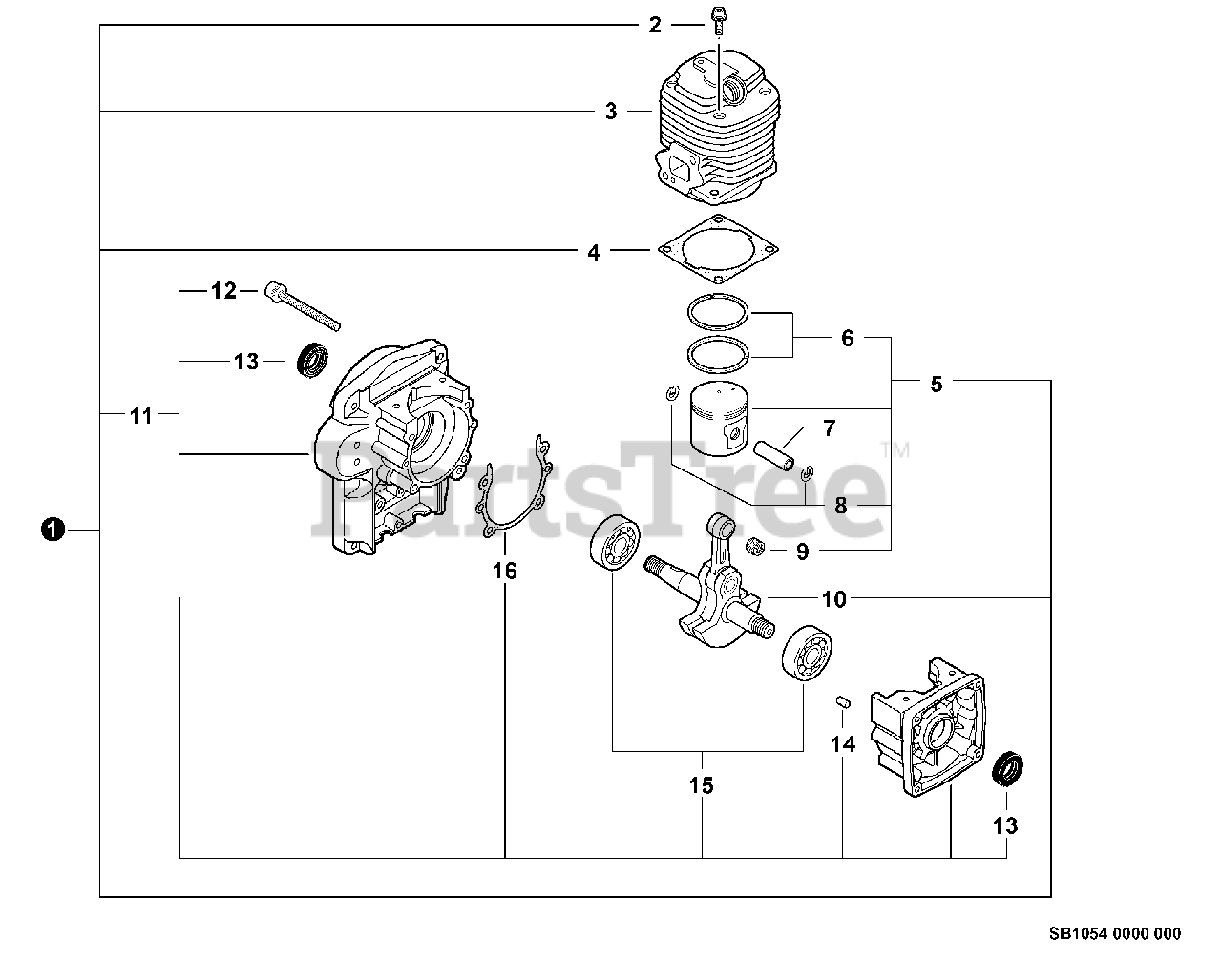

Engine, Short Block -- SB1054 Parts Diagram

  • Title

1

Echo SB1054

SHORT BLOCK -- SB1054

Note: Includes ITEMS 2-16

$385.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000111

CYLINDER

$216.99

$

In Stock, only 4 left!

0

4

Echo 10101006211

GASKET, CYLINDER

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 7

0

5

Echo P021001820

PISTON KIT
(Superseded to P021016910)

Note: Includes ITEMS 6-9

$73.99

$

Usually ships in 2-4 days

0

6

Echo 10001108360

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

7

Echo 10001306210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

9

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 11

0

10

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

In Stock, only 1 left!

0

11

Echo 10020408261

CRANKCASE KIT

Note: Includes ITEMS 13-16

$233.99

$

Usually ships in 2-4 days

0

12

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 14

0

13

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

15

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

16

Echo 10024210721

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.49

$

In Stock, only 2 left!

0
