PB-611 - Echo Backpack Blower (SN: 02001001 - 02999999) Fuel System Parts Diagram

Backpack Blower

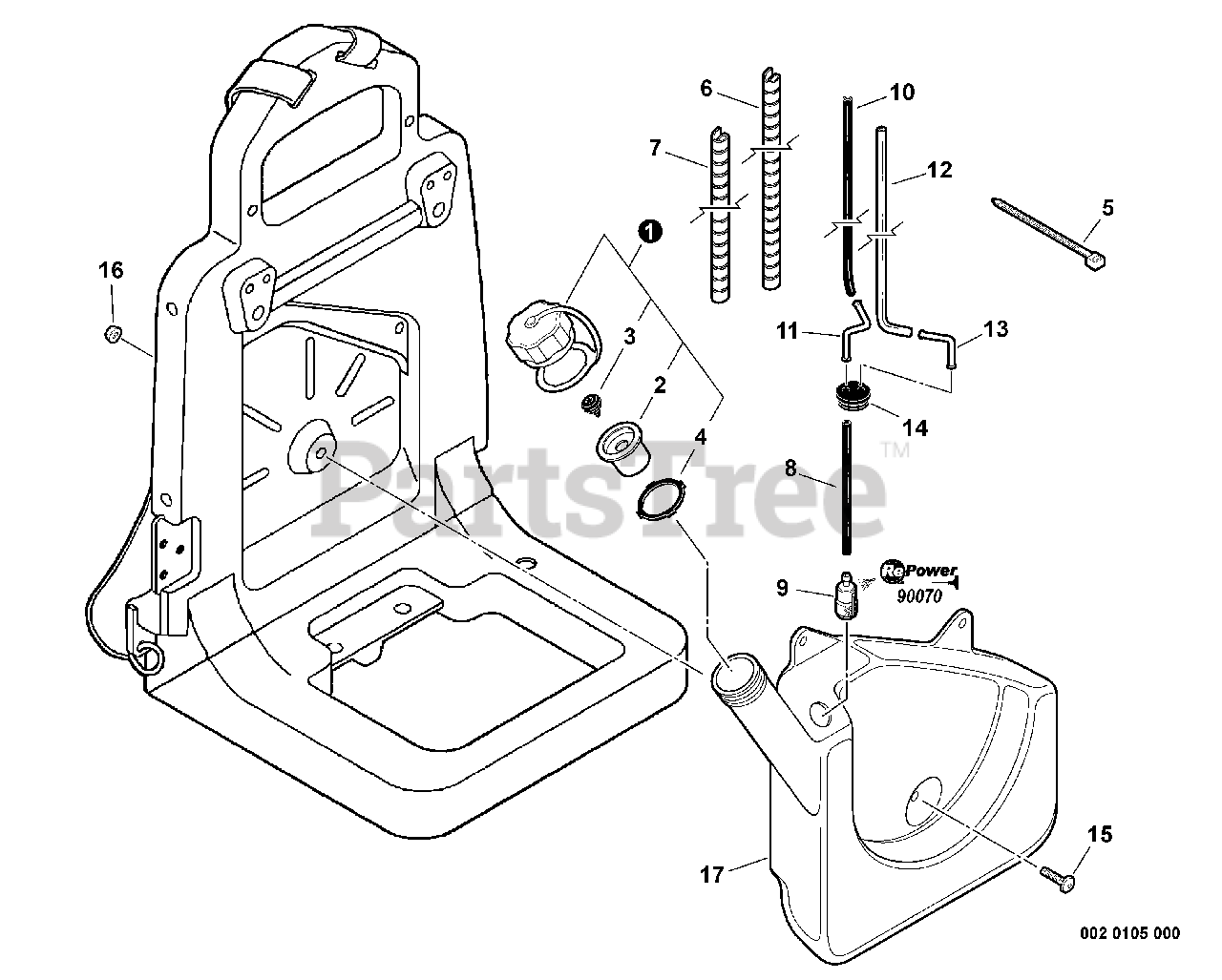

Fuel System Parts Diagram

  • Title

1

Echo 13100406610

CAP ASSY
(Superseded to 13160009860)

Note: Includes ITEMS 2-4

$11.99

$

In Stock, Qty 19

0

2

Echo 13101521330

HOLDER, VENT
(Superseded to A358000000)

$

$

Not available

3

Echo 13131406320

VENT

$5.49

$

In Stock, Qty 7

0

4

Echo 13101621060

GASKET, CAP
(Superseded to 13101621061)

$2.99

$

Usually ships in 2-4 days

0

5

Echo V495000300

TIE, CABLE
(Superseded to 17812143230)

$3.49

$

In Stock, only 4 left!

0

6

Echo 13201508260

WRAP, SPIRAL

$

$

Not available

7

Echo 17812703460

WRAP, SPIRAL - 130mm

$1.99

$

In Stock, Qty 5

0

8

Echo V471000770

PIPE - 3X6X280 -- BLACK
(Superseded to V471000771)

Note: RePower BULK OPTION: 90015

$3.99

$

In Stock, Qty 20+

0

9

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

10

Echo 13201008260

PIPE - 3X7X520 -- BLACK

Note: RePower BULK OPTION: 90016

$16.99

$

In Stock, Qty 20+

0

11

Echo 13201108260

CONNECTOR, PIPE

$3.99

$

In Stock, Qty 20+

0

12

Echo 13201608260

PIPE - 2X4X480 -- CLEAR

Note: RePower BULK OPTION: 90018

$4.49

$

In Stock, Qty 20+

0

13

Echo 13202108260

CONNECTOR, PIPE

$3.99

$

In Stock, Qty 20+

0

14

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$2.99

$

Usually ships in 2-4 days

0

15

Echo 90020905020

SCREW - 5X20
(Superseded to Discontinued)

$

$

Not available

16

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 13101008261

TANK, FUEL
(Superseded to 13101008262)

$42.99

$

In Stock, only 1 left!

0

18

Echo 90070

RePower TUNE-UP KIT
(Superseded to 90151)

$25.99

$

In Stock, Qty 12

0
