PB-620 - Echo Backpack Blower (SN: 10001001 - 10999999) Fan Case, Blower Fan, Engine Cover Parts Diagram

Backpack blower, 325 x 520 x 490 mm, 9.5 kg dry. 58.2 cc, 2-stroke air-cooled engine: idle 2600-2800 rpm, WOT 7000-8000 rpm. Zama carburetor, CD ignition, NGK BPM-8Y spark plug. Runs on 50:1 gasoline (?89 octane, ?10 % ethyl).

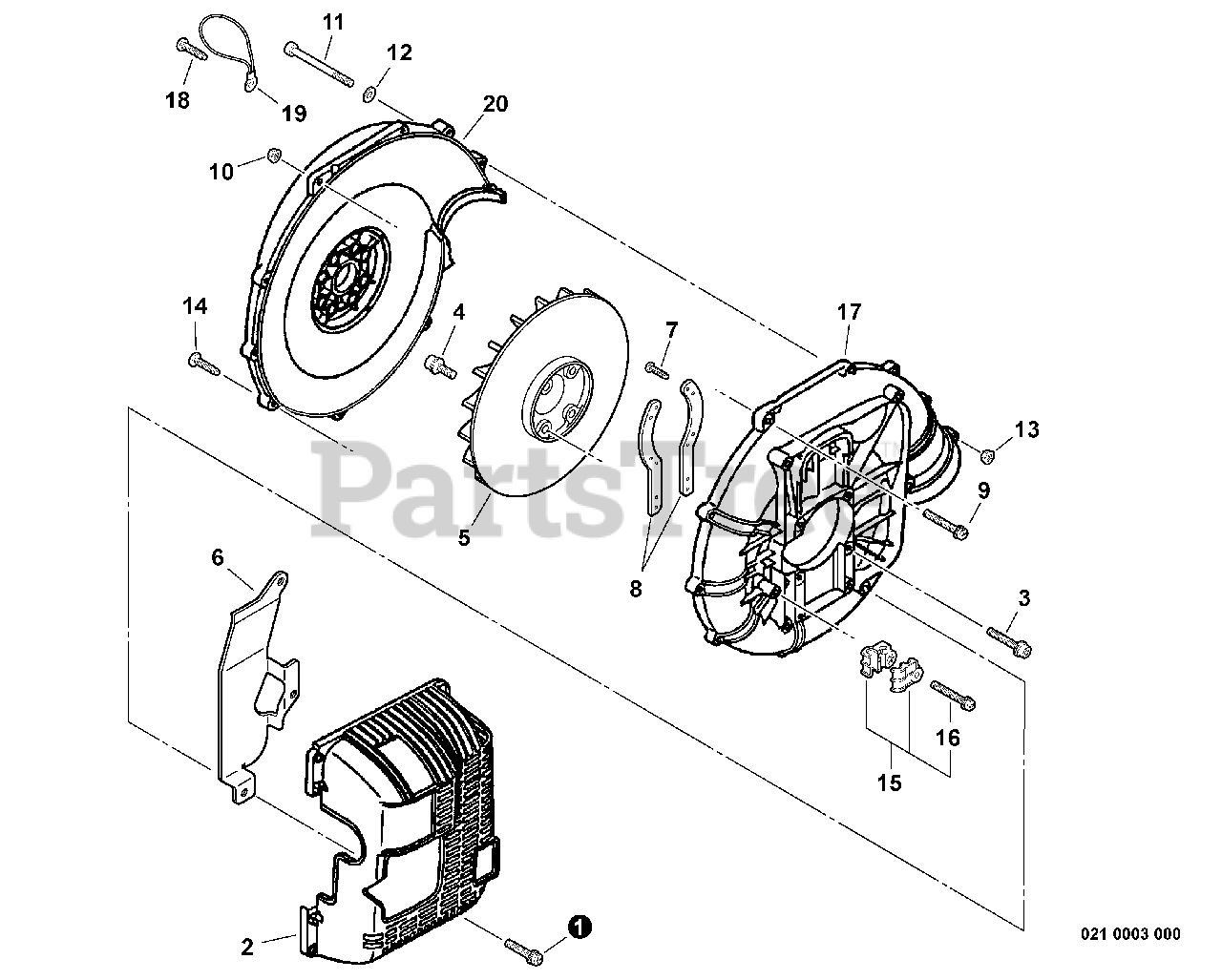

Fan Case, Blower Fan, Engine Cover Parts Diagram

  • Title

1

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0

2

Echo A190000102

COVER, ENGINE

$30.99

$

Usually ships in 2-4 days

0

3

Echo 90016205032

SCREW 5×32

$1.99

$

Usually ships in 2-4 days

0

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 20000508261

FAN

$117.99

$

Usually ships in 2-4 days

0

6

Echo A322000000

INSULATOR
(Superseded to A322000060)

$21.99

$

In Stock, only 3 left!

0

7

Echo 90024603012

SCREW TAPPING 3×12

$0.99

$

Usually ships in 2-4 days

0

8

Echo 10491308360

BRACKET, ENGINE

$36.99

$

Usually ships in 2-4 days

0

9

Echo 90023805040

SCREW 5×40

$0.99

$

In Stock, only 1 left!

0

10

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

11

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

12

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

14

Echo 90025305030

SCREW 5×30

$0.99

$

In Stock, only 1 left!

0

15

Echo 17810108260

CABLE HOLDER KIT

Note: Includes ITEM 16

$14.99

$

In Stock, only 1 left!

0

16

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

17

Echo E103000103

COVER, FAN - OUTER
(Superseded to E103000104)

$29.99

$

Usually ships in 2-4 days

0

18

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

19

Echo C617000230

STRAP, SAFETY
(Superseded to C617000540)

$4.99

$

Usually ships in 2-4 days

0

20

Echo 20011108265

COVER, FAN - INNER
(Superseded to 20011108266)

$39.99

$

Usually ships in 2-4 days

0
