PB-620 - Echo Backpack Blower (SN: 10001001 - 10999999) Fuel System Parts Diagram

Backpack blower, 325 x 520 x 490 mm, 9.5 kg dry. 58.2 cc, 2-stroke air-cooled engine: idle 2600-2800 rpm, WOT 7000-8000 rpm. Zama carburetor, CD ignition, NGK BPM-8Y spark plug. Runs on 50:1 gasoline (?89 octane, ?10 % ethyl).

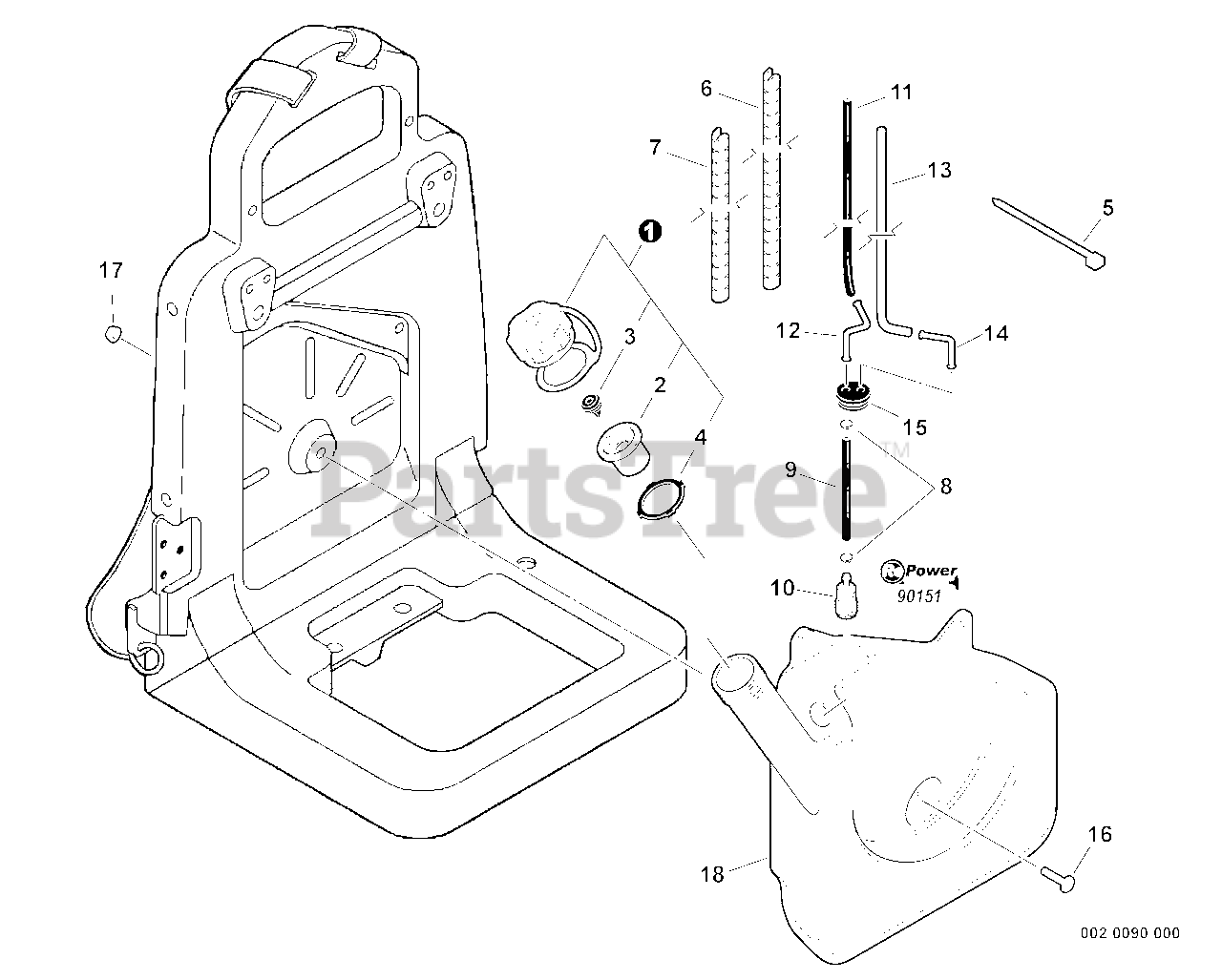

Fuel System Parts Diagram

  • Title

1

Echo 13160009861

CAP ASSY, FUEL
(Superseded to P100006490)

Note: Includes ITEMS 2-4

$13.99

$

In Stock, only 2 left!

0

2

Echo A358000000

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

3

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

4

Echo 13101621060

GASKET, FUEL CAP
(Superseded to 13101621061)

$

$

Not available

5

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

6

Echo 17812703460

PIPE

$2.49

$

In Stock, only 3 left!

0

7

Echo 13201508260

WRAP, SPIRAL

$

$

Not available

8

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

9

Echo V471000770

PIPE, FUEL 3×6×280 MM
(Superseded to V471000771)

Note: RePower BULK OPTION: 90015

$4.49

$

In Stock, only 3 left!

0

10

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.99

$

In Stock, Qty 20+

0

11

Echo 13201008260

PIPE, FUEL

Note: RePower BULK OPTION: 90016

$20.99

$

In Stock, only 2 left!

0

12

Echo 13201108260

CONNECTOR, PIPE

$4.49

$

In Stock, only 4 left!

0

13

Echo 13201608260

PIPE, FUEL

Note: RePower BULK OPTION: 90018

$5.49

$

In Stock, Qty 6

0

14

Echo 13202108260

CONNECTOR, PIPE

$4.99

$

In Stock, Qty 13

0

15

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$3.49

$

In Stock, only 3 left!

0

16

Echo 90020905020

SCREW 5×20
(Superseded to Discontinued)

$

$

Not available

17

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

18

Echo A350000711

TANK, FUEL

$50.99

$

In Stock, only 2 left!

0

19

Echo 90151

TUNE-UP KIT - REPOWER
(Superseded to 90156)

$27.99

$

In Stock, Qty 20+

0
