PB-620 - Echo Backpack Blower (SN: 10001001 - 10999999) Ignition Parts Diagram

Backpack blower, 325 x 520 x 490 mm, 9.5 kg dry. 58.2 cc, 2-stroke air-cooled engine: idle 2600-2800 rpm, WOT 7000-8000 rpm. Zama carburetor, CD ignition, NGK BPM-8Y spark plug. Runs on 50:1 gasoline (?89 octane, ?10 % ethyl).

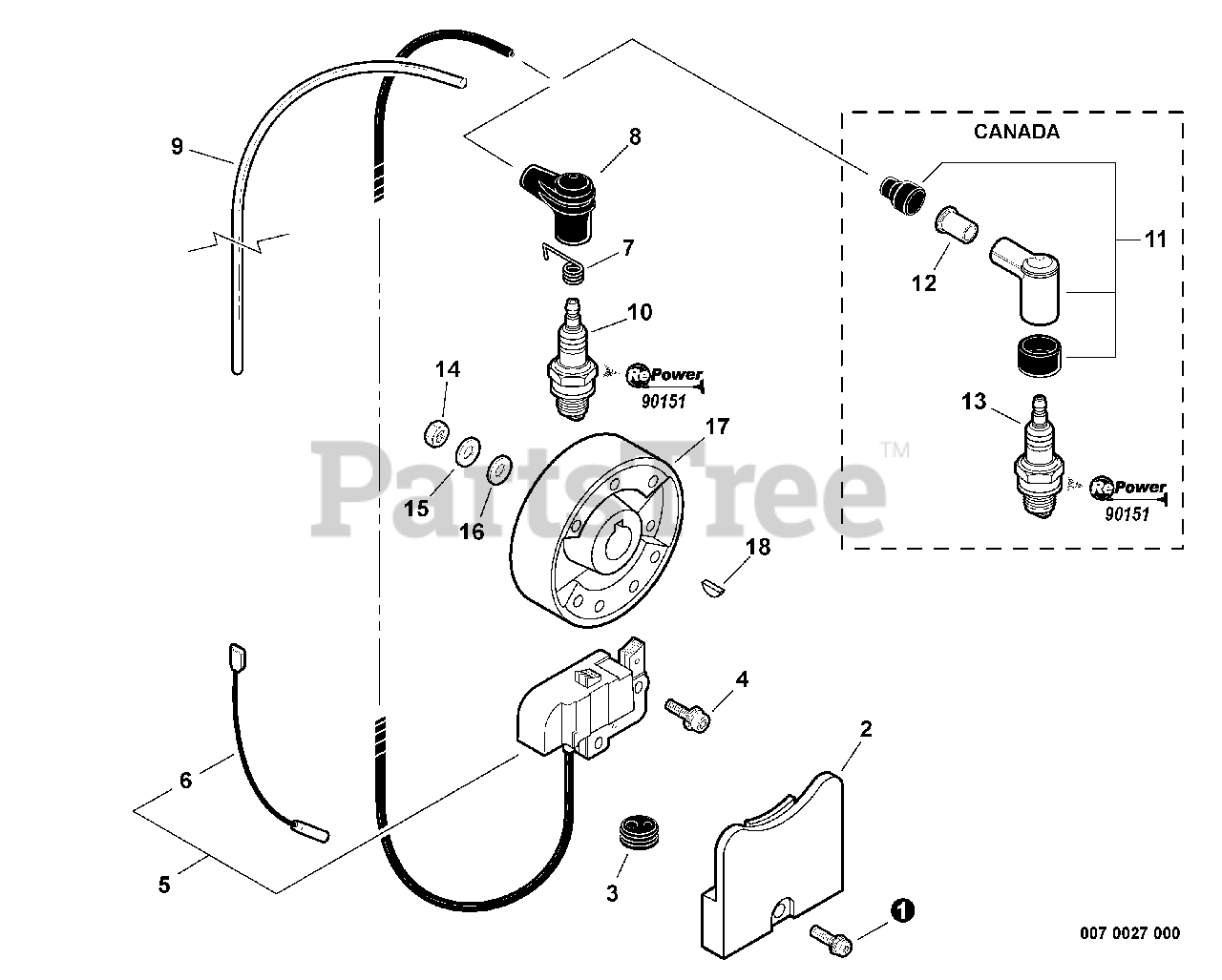

Ignition Parts Diagram

  • Title

1

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0

2

Echo 15912908261

COVER, DUST

$6.99

$

In Stock, only 2 left!

0

3

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

4

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0

5

Echo 15660109861

COIL, IGNITION
(Superseded to 15660108361)

Note: Includes ITEM 6

$120.99

$

In Stock, Qty 5

0

6

Echo 16202108260

LEAD - GROUND

$4.49

$

In Stock, only 1 left!

0

7

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

8

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

9

Echo 15611106160

TUBE, VINYL 6.3×8×380

$1.99

$

In Stock, Qty 5

0

10

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

11

Echo 15901210230

CAP, SPARK PLUG

Note: CANADA MODELS

$13.99

$

Usually ships in 2-4 days

0

12

Echo 15901605330

ADAPTOR, SPARK PLUG - CAP

Note: CANADA MODELS

$1.99

$

Usually ships in 2-4 days

0

13

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

14

Echo 900501-00010

NUT 10

$0.99

$

In Stock, only 2 left!

0

15

Echo 900605-00010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

16

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 15

0

17

Echo 15680006161

FLYWHEEL

$120.99

$

Usually ships in 2-4 days

0

18

Echo 90032303014

KEY, WOODRUFF 3×14

$1.99

$

In Stock, Qty 20+

0

19

Echo 90151

TUNE-UP KIT - REPOWER
(Superseded to 90156)

$27.99

$

In Stock, Qty 20+

0
