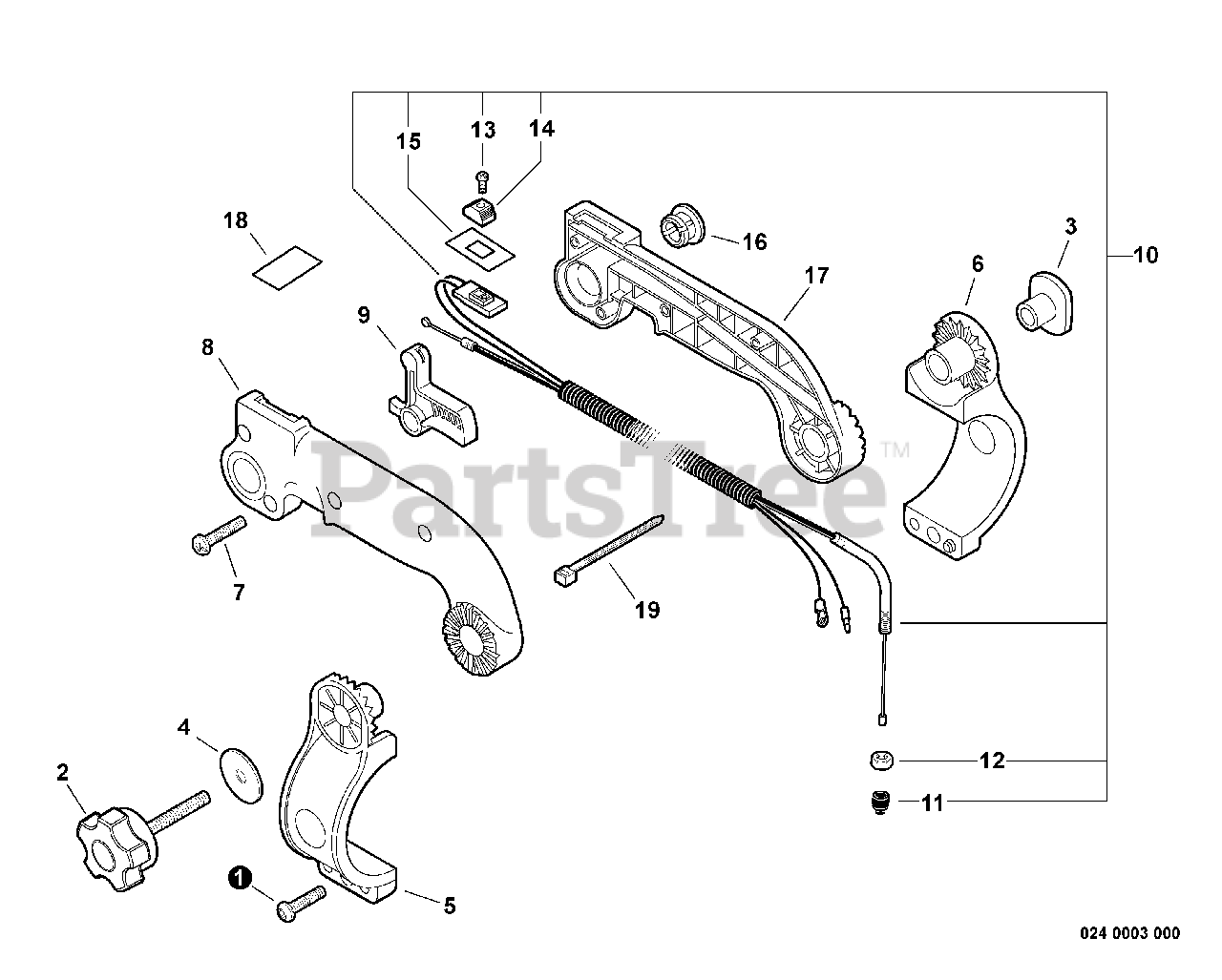

PB-620 - Echo Backpack Blower (SN: 10001001 - 10999999) Tube Mount Throttle S/N: 10001001 - 10001500 Parts Diagram

Backpack blower, 325 x 520 x 490 mm, 9.5 kg dry. 58.2 cc, 2-stroke air-cooled engine: idle 2600-2800 rpm, WOT 7000-8000 rpm. Zama carburetor, CD ignition, NGK BPM-8Y spark plug. Runs on 50:1 gasoline (?89 octane, ?10 % ethyl).

Tube Mount Throttle S/N: 10001001 - 10001500 Parts Diagram

  • Title

1

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

2

Echo 30581208260

KNOB, SCREW
(Superseded to V299000630)

$5.49

$

In Stock, Qty 20+

0

3

Echo 17802108260

NUT

$30.99

$

In Stock, only 2 left!

0

4

Echo 17851607560

WASHER

$0.99

$

In Stock, only 3 left!

0

5

Echo C405000020

BRACKET, HANDLE - LEFT
(Superseded to P021013320)

$8.99

$

In Stock, Qty 15

0

6

Echo C405000030

BRACKET, HANDLE - RIGHT
(Superseded to P021013320)

$8.99

$

In Stock, Qty 15

0

7

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

8

Echo C470000020

HANDLE, FRONT - LEFT
(Superseded to Discontinued)

$

$

Not available

9

Echo 17801007561

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 11

0

10

Echo V043000020

CONTROL CABLE ASSY
(Superseded to V043000021)

Note: Includes ITEMS 11-15

$19.99

$

In Stock, only 2 left!

0

11

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

12

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

13

Echo 90022003010

SCREW 3×10

$0.99

$

In Stock, Qty 11

0

14

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

15

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

16

Echo 35114607560

PLUG

$3.99

$

Usually ships in 2-4 days

0

17

Echo 35131107560

CONTROL HANDLE - RIGHT

$13.99

$

In Stock, only 1 left!

0

18

Echo X505000950

LABEL, CAUTION - IDLE

$3.99

$

In Stock, only 4 left!

0

19

Echo 17812109860

STRAP, TIE - LARGE

$3.49

$

Usually ships in 2-4 days

0
