PB-620 - Echo Backpack Blower (SN: 10001001 - 10999999) Tube Mount Throttle S/N: 10001501 - 10999999 Parts Diagram

Backpack Blower

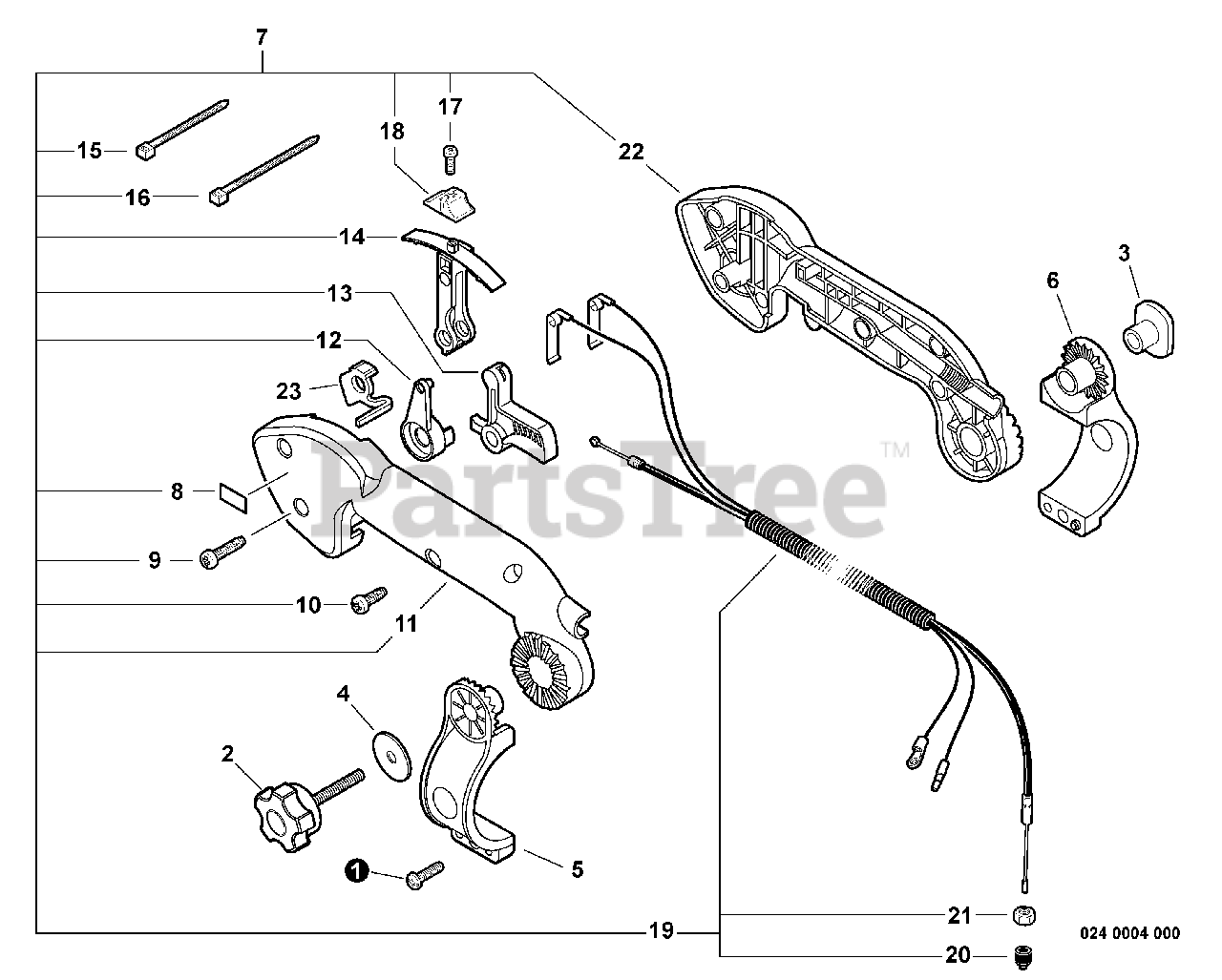

Tube Mount Throttle S/N: 10001501 - 10999999 Parts Diagram

  • Title

1

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.99

$

In Stock, Qty 20+

0

2

Echo 30581208260

THUMBSCREW
(Superseded to V299000630)

$5.49

$

In Stock, Qty 20+

0

3

Echo 17802108260

T-NUT

$30.99

$

In Stock, only 2 left!

0

4

Echo 17851607560

WASHER - 6

$0.99

$

In Stock, only 3 left!

0

5

Echo C405000020

BRACKET, HANDLE - LEFT
(Superseded to P021013320)

$8.99

$

In Stock, Qty 20+

0

6

Echo C405000030

BRACKET, HANDLE - RIGHT
(Superseded to P021013320)

$8.99

$

In Stock, Qty 20+

0

7

Echo 90095

CRUISE CONTROL KIT
(Superseded to 9001014)

Note: Includes ITEMS 8-22

$52.99

$

In Stock, only 2 left!

0

8

Echo X505000950

LABEL - IDLE

$3.99

$

In Stock, only 4 left!

0

9

Echo 88995021560

SCREW - 5

$0.99

$

In Stock, only 2 left!

0

10

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

11

Echo C400000411

HANDLE, FRONT - LEFT

$7.99

$

Usually ships in 2-4 days

0

12

Echo C453000202

LEVER, THROTTLE
(Superseded to 9001014)

$52.99

$

In Stock, only 2 left!

0

13

Echo 17801007561

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 18

0

14

Echo C453000210

LEVER, THROTTLE CONTROL
(Superseded to C453000211)

$1.99

$

In Stock, only 3 left!

0

15

Echo 17812143230

TIE, CABLE - SMALL

$3.99

$

In Stock, only 3 left!

0

16

Echo 17812109860

TIE, CABLE - LARGE

$3.49

$

Usually ships in 2-4 days

0

17

Echo 9154503014

SCREW - 3X14

$0.99

$

Usually ships in 2-4 days

0

18

Echo E151000000

KNOB, THROTTLE CONTROL
(Superseded to E151000001)

$1.99

$

In Stock, only 3 left!

0

19

Echo V043000060

CONTROL CABLE ASSY
(Superseded to 9001014)

Note: Includes ITEMS 20-21

$52.99

$

In Stock, only 2 left!

0

20

Echo 17808208260

CAP, DUST

$3.99

$

In Stock, only 2 left!

0

21

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo C400000421

HANDLE, FRONT - RIGHT

$7.99

$

Usually ships in 2-4 days

0

23

Echo C401000040

GUARD, CONTACT

$0.99

$

Usually ships in 2-4 days

0
