PB-620 H - Echo Backpack Blower (SN: P04712001001 - P04712999999) Intake Parts Diagram

Echo PB-620H Backpack Blower - a versatile industrial blower that is compatible with the 90161Y tune-up kit and the 90114Y spark plug kit for easy maintenance and performance optimization.

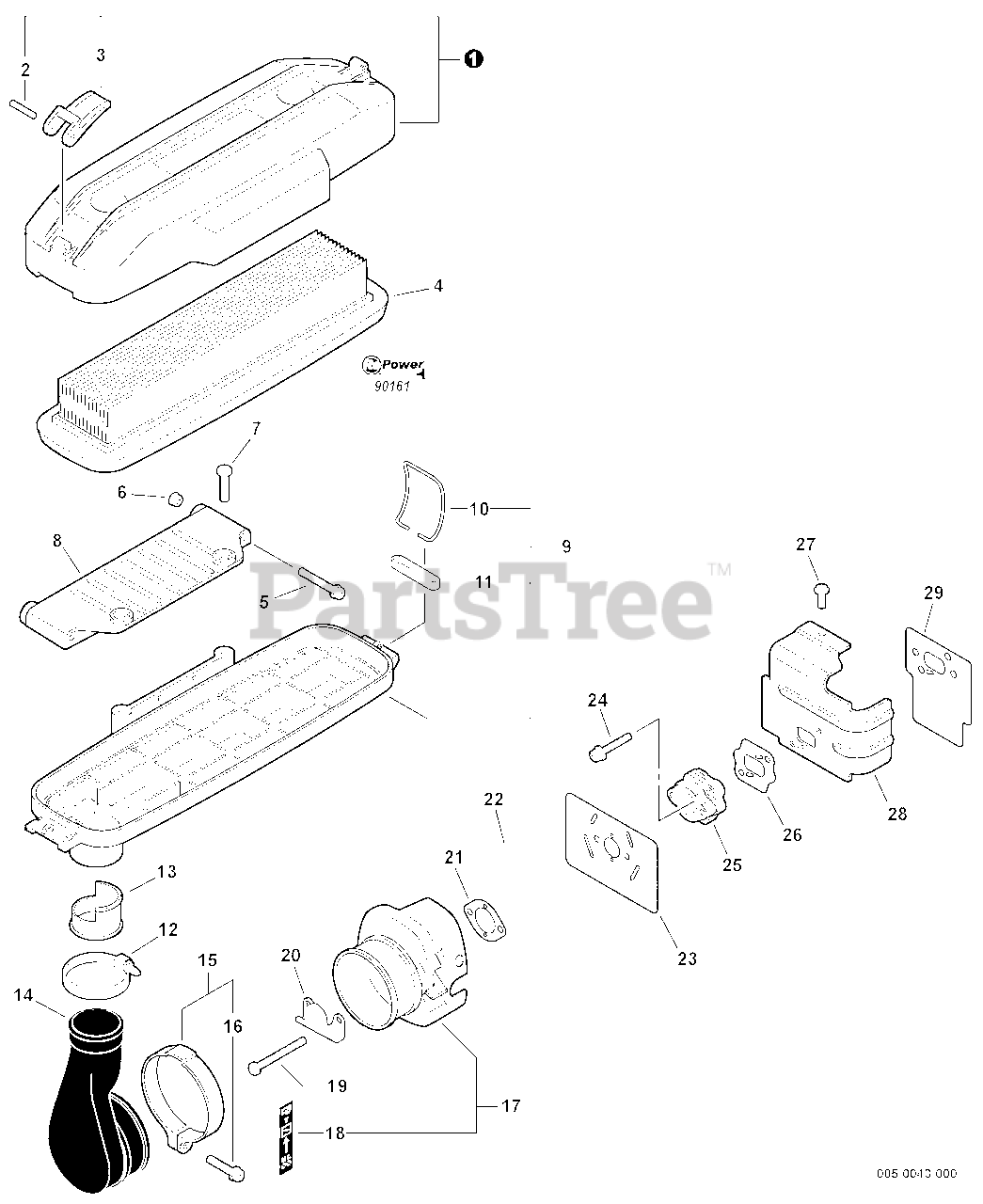

Intake Parts Diagram

  • Title

1

Echo 13030808360

COVER ASSY, AIR FILTER
(Superseded to 13030808361)

Note: INCLUDES ITEMS 2-3

$16.99

$

Usually ships in 2-4 days

0

2

Echo 90034530025

PIN, SPRING 3×25

$1.99

$

Usually ships in 2-4 days

0

3

Echo 13034108260

LATCH

$5.49

$

In Stock, only 1 left!

0

4

Echo 13030508361

FILTER, AIR

Note: Included In RePower KIT

$16.99

$

In Stock, Qty 20+

0

5

Echo 90023805040

SCREW 5×40

$0.99

$

In Stock, only 1 left!

0

6

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

7

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

8

Echo E617000030

BRACKET

$2.99

$

Usually ships in 2-4 days

0

9

Echo A225000310

AIR FILTER CASE ASSY

Note: Includes ITEMS 10-11

$16.99

$

Usually ships in 2-4 days

0

10

Echo 13103208360

CLIP

$3.49

$

In Stock, Qty 5

0

11

Echo V491000220

CLIP

$0.99

$

In Stock, Qty 20+

0

12

Echo 13071508260

BAND

$1.99

$

In Stock, only 1 left!

0

13

Echo 17807608360

COLLAR 27

$3.49

$

In Stock, only 4 left!

0

14

Echo 13071108260

ADAPTOR, INTAKE

$

$

Not available

15

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 16

$8.49

$

In Stock, Qty 9

0

16

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

17

Echo A221000000

BRACKET KIT, AIR FILTER

Note: Includes ITEMS 18-19

$12.99

$

In Stock, Qty 6

0

18

Echo 89015808261

LABEL, CHOKE

$2.99

$

In Stock, only 2 left!

0

19

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 1 left!

0

20

Echo A244000020

PLATE, PREVENT

$3.49

$

In Stock, only 2 left!

0

21

Echo 13001603731

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

22

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

23

Echo 13001021262

GASKET, INTAKE

$2.99

$

In Stock, Qty 11

0

24

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

25

Echo 13000708261

INSULATOR, INTAKE

$12.99

$

In Stock, only 2 left!

0

26

Echo V103000000

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

27

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

28

Echo 10151408260

COVER, CYLINDER

$23.99

$

In Stock, only 2 left!

0

29

Echo 13001606211

HEAT SHIELD, INTAKE

$0.99

$

In Stock, Qty 16

0

30

Echo 90161

TUNE-UP KIT - REPOWER
(Superseded to 90161Y)

$27.99

$

In Stock, only 2 left!

0
