PB-620 ST - Echo Backpack Blower (SN: P03711001001 - P03711999999) Intake Parts Diagram

Backpack blower with a 58.2 cc air-cooled 2-stroke engine (46 mm bore, 35 mm stroke), weighing 9.9 kg and measuring 325 x 475 x 490 mm. Equipped with a ZAMA carburetor, C-DIS flywheel magneto, and NGK BPM-8Y spark plug (0.65 mm). Includes a purge-bulb kit (2 on-carb bulbs, 1 remote bulb, grommet).

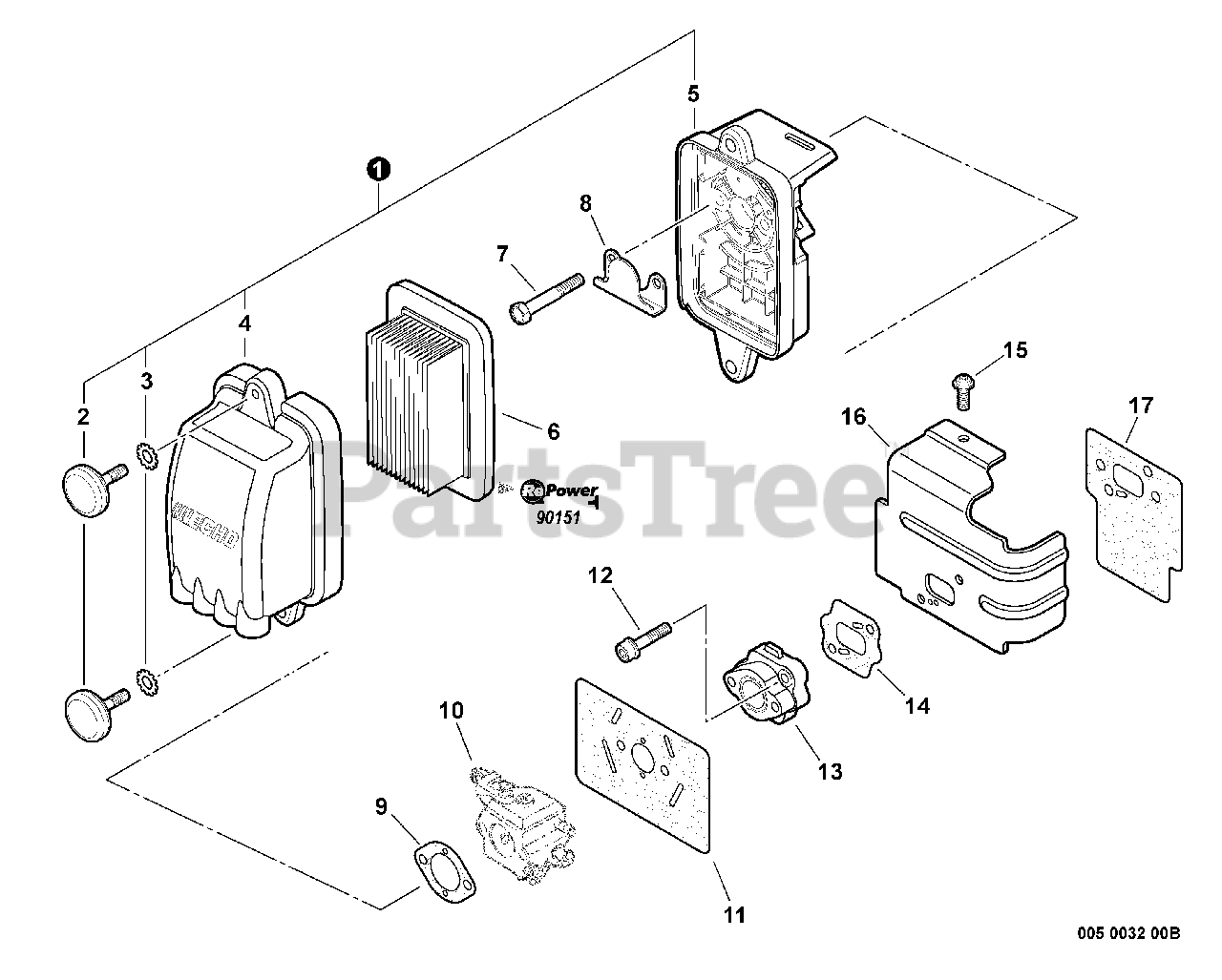

Intake Parts Diagram

  • Title

1

Echo P021014431

FILTER KIT, AIR
(Superseded to P021014432)

Note: Includes ITEMS 2-5

$13.99

$

In Stock, Qty 20+

0

2

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.99

$

In Stock, Qty 20+

0

3

Echo V340000210

WASHER

$0.99

$

In Stock, Qty 20+

0

4

Echo A232000081

COVER, AIR FILTER
(Superseded to A232000082)

$3.49

$

In Stock, Qty 13

0

5

Echo P021002522

CASE ASSY, AIR FILTER

$12.99

$

In Stock, Qty 10

0

6

Echo A226000032

FILTER, AIR

Note: Included In RePower KIT

$12.99

$

In Stock, Qty 20+

0

7

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

8

Echo A244000020

PLATE, PREVENT

$3.49

$

In Stock, only 2 left!

0

9

Echo 13001603731

GASKET, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

10

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

11

Echo 13001021262

GASKET, INTAKE

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 11

0

12

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo 13000708261

INSULATOR, INTAKE

$12.99

$

In Stock, only 2 left!

0

14

Echo V103000000

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

15

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

16

Echo 10151408260

COVER, CYLINDER

$23.99

$

In Stock, only 2 left!

0

17

Echo 13001606211

HEAT SHIELD, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 16

0

18

Echo 90151

TUNE-UP KIT - REPOWER
(Superseded to 90156)

$27.99

$

In Stock, Qty 20+

0
