PB-650 - Echo Backpack Blower (SN: 03001001 - 03999999) Engine, Short Block -- SB1058 Parts Diagram

Backpack Blower - 63.3 cc 1-stroke engine (family 1ehxs.635ra), WYK-150 carburetor, throttle/stop lever combo, EPA Phase I & California Tier II compliant, steel flex-pipe clamp. Ideal for residential or light commercial use.

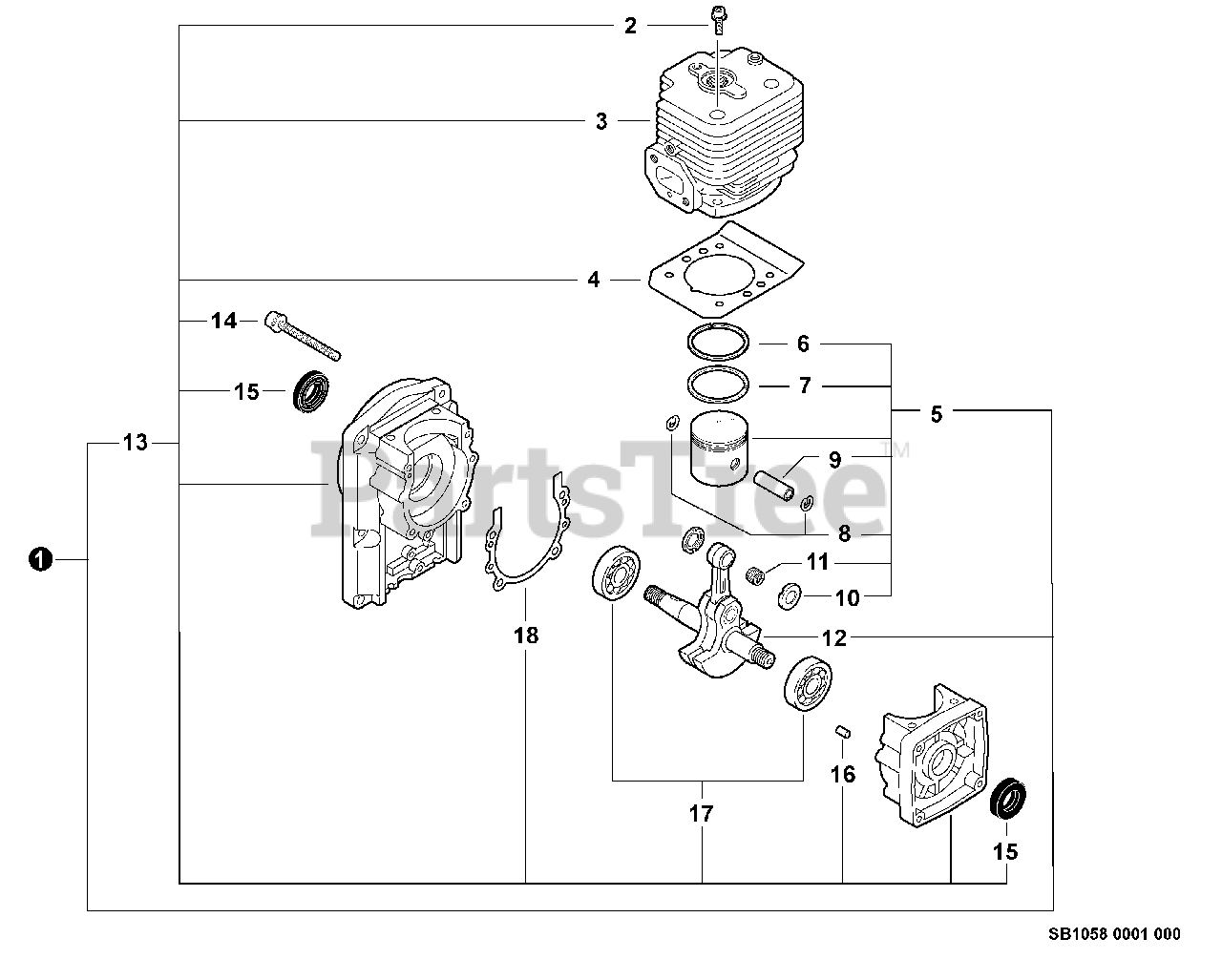

Engine, Short Block -- SB1058 Parts Diagram

  • Title

1

Echo SB1058

SHORT BLOCK

Note: Includes ITEMS 2-18

$481.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo A130000250

CYLINDER
(Superseded to A130000251)

$188.99

$

Usually ships in 2-4 days

0

4

Echo V100000050

GASKET, CYLINDER
(Superseded to V100000051)

Note: Included In GASKET KIT

$2.49

$

Usually ships in 2-4 days

0

5

Echo P021002982

PISTON KIT
(Superseded to P021002983)

Note: Includes ITEMS 6-11

$106.99

$

In Stock, only 4 left!

0

6

Echo A101000030

RING, PISTON

$11.99

$

Usually ships in 2-4 days

0

7

Echo A101000020

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

8

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

9

Echo V608000010

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

10

Echo V307000060

WASHER, THRUST

$7.99

$

Usually ships in 2-4 days

0

11

Echo V555000010

BEARING, NEEDLE 10

$11.99

$

In Stock, Qty 16

0

12

Echo A011000140

CRANKSHAFT ASSY

$257.99

$

In Stock, only 1 left!

0

13

Echo P021002991

CRANKCASE KIT

Note: Includes ITEMS 14-18

$293.99

$

Usually ships in 2-4 days

0

14

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

15

Echo V508000010

SEAL, OIL 15
(Superseded to V508000100)

$6.49

$

In Stock, only 3 left!

0

16

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

17

Echo 9403236302

BEARING, BALL 6302

$21.99

$

In Stock, only 2 left!

0

18

Echo V102000010

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0
