PB-650 - Echo Backpack Blower (SN: 03001001 - 03999999) Hip Mount Throttle Parts Diagram

Backpack Blower - 63.3 cc 1-stroke engine (family 1ehxs.635ra), WYK-150 carburetor, throttle/stop lever combo, EPA Phase I & California Tier II compliant, steel flex-pipe clamp. Ideal for residential or light commercial use.

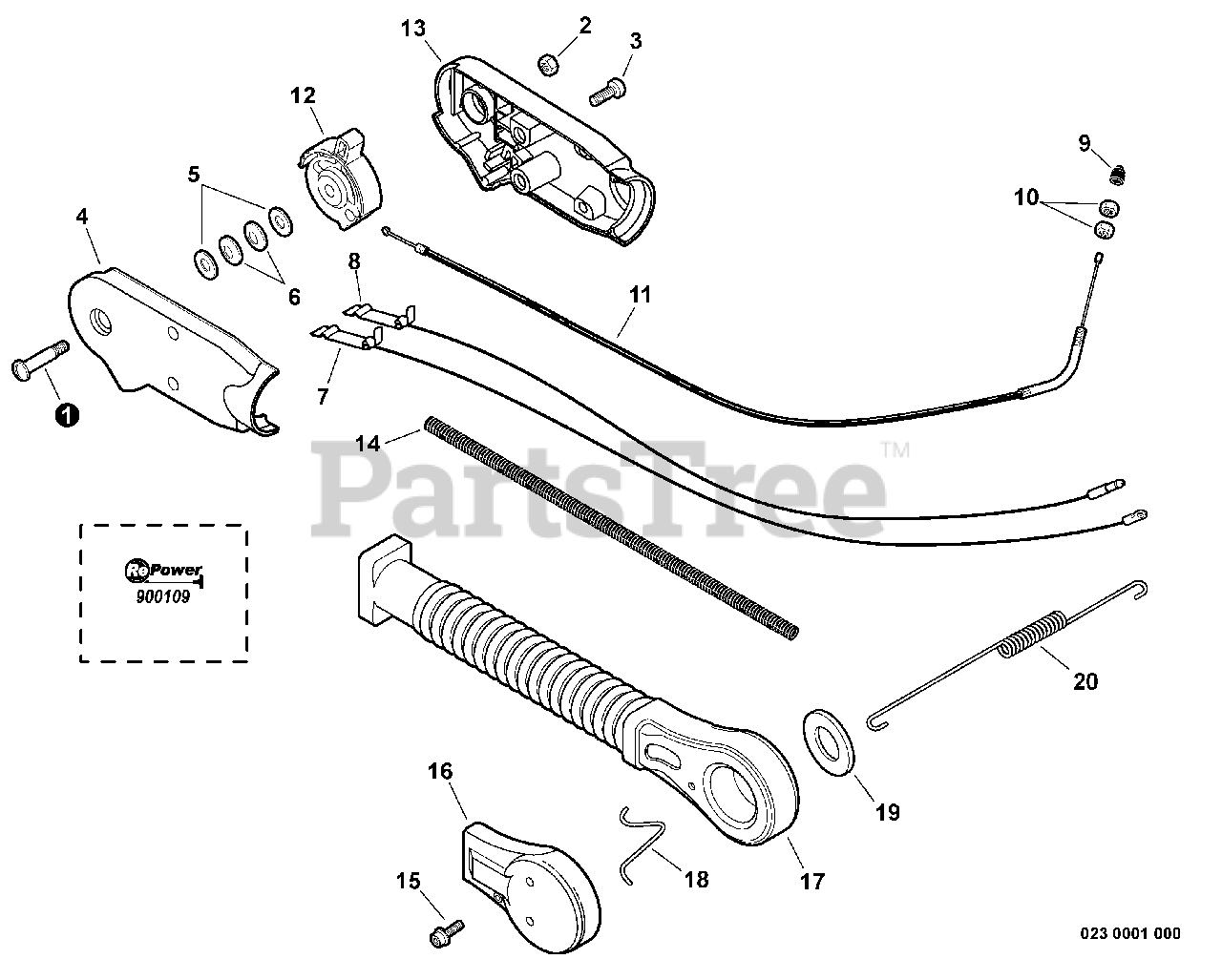

Hip Mount Throttle Parts Diagram

  • Title

1

Echo 60403021060

SCREW 4

$1.99

$

In Stock, only 2 left!

0

2

Echo 90056000004

NUT, LOCK 4

$0.99

$

In Stock, Qty 20+

0

3

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

4

Echo C471000050

GRIP, LEFT THROTTLE

$3.99

$

Usually ships in 2-4 days

0

5

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

6

Echo 17816021060

WASHER, FRICTION 6.6×14.3

$0.99

$

Usually ships in 2-4 days

0

7

Echo V485000210

LEAD

$3.99

$

In Stock, only 2 left!

0

8

Echo V485000060

LEAD - IGNITION

$5.99

$

In Stock, only 2 left!

0

9

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

10

Echo 90050300006

NUT 6 MM

$0.99

$

In Stock, Qty 5

0

11

Echo V430000440

CABLE, THROTTLE

$17.99

$

Usually ships in 2-4 days

0

12

Echo C453000020

LEVER, THROTTLE
(Superseded to C453000021)

$3.49

$

In Stock, only 2 left!

0

13

Echo C471000060

GRIP, RIGHT THROTTLE

$3.99

$

Usually ships in 2-4 days

0

14

Echo V475001970

TUBE, FLEXIBLE

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

16

Echo C472000010

BRACKET, LEFT CONTROL ARM

$9.49

$

Usually ships in 2-4 days

0

17

Echo C456000030

ARM, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

18

Echo V456000000

HOLDER, SPRING
(Superseded to Discontinued)

$

$

Not available

19

Echo V336000000

WASHER 45

$2.49

$

In Stock, Qty 20+

0

20

Echo V451000280

SPRING, TENSION

$4.99

$

Usually ships in 2-4 days

0

21

Echo 900109

THROTTLE CONTROL KIT - HIP MOUNT

$76.99

$

In Stock, Qty 11

0
